Capacity 80ton Large-type CNC Horizontal Heavy Duty Lathes

Name: Capacity 80ton Large-type CNC Horizontal Heavy Duty Lathes
Brand: TIMAC
SKU: 140795882
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 150,000 - 500,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Payment & Shipping

Payment Methods:

Port of Shipment:

China port.

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 2500mm

Place of Origin Henan, China

Brand Name TIMAC

Model Number AK-2500H/2

Voltage 380v 50hz

Power(W) DC90/110/125kw

Dimension(L*W*H) As actual

Weight As actual

Certification CE,ISO

After-sales Service Provided Engineers available to service machinery overseas

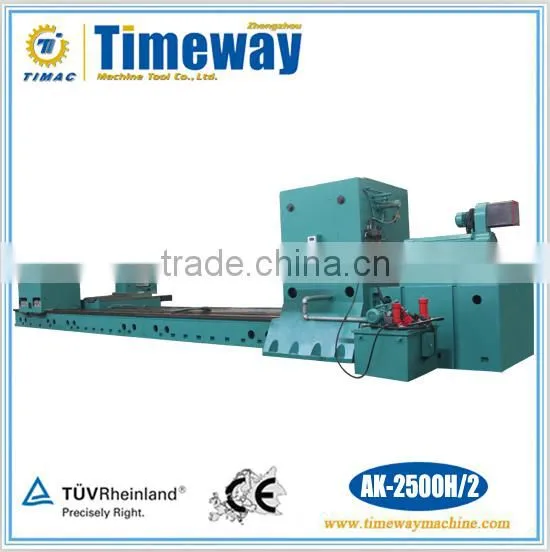

Large-type CNC Horizontal Heavy Duty Lathe

AK-1800H/2 AK-2000H/2 AK-2200H/2 AK-2500H/2

Main Outlook

Product Description

Features:

This series of machines is CNC heavy-duty horizontal lathe suitable for rough machining and finish machining of ferrous and non-ferrous metal workpiece with carbide, ceramic and other tools in facing, external cylindrical turning, taper cutting and curved shape.
Machine bed has three guideways or four guideways on one-piece casting, and induction hardened to guarantee high accuracy, big load capacity and long life, Carriage guideways are fully protected with metal plate splash guards.

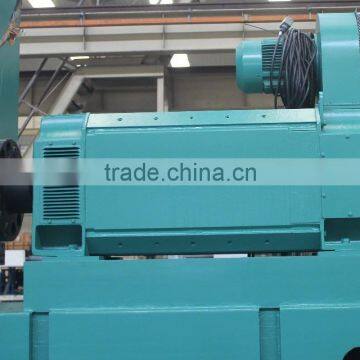

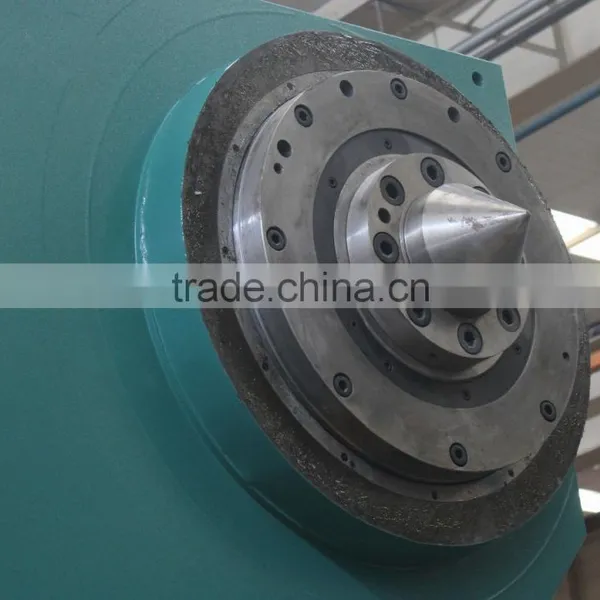

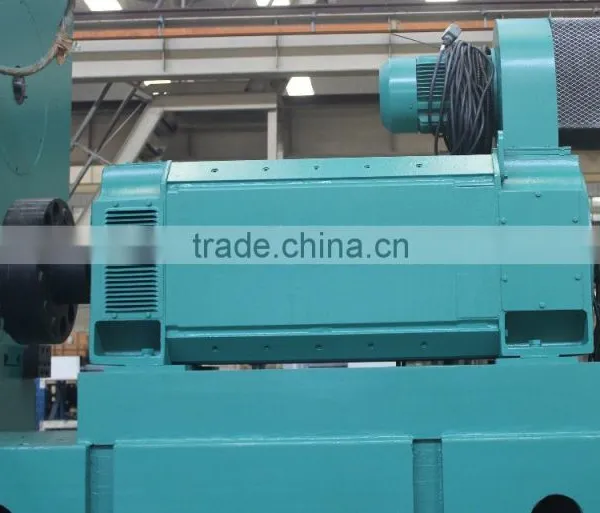

Main spindle drive is DC inverter motor with three steps hydraulic shift that brings wide speed change range of 1:200. Two step change headstock has spindle direct connected chuck structure. Main spindle is supported by imported high precision, radial backlash adjustable double row cylindrical roller bearings in optimal distance considering supporting distance and chuck diameter to get the best accuracy and stiffness.
X-axis and Z-axis movement is controlled by AC servo motors. X-axis adopts imported high precision ball screw and Z-axis adopts imported high precision backlash free worm rack structure to guarantee the highest feed accuracy and rapid traverse.
Various types of steady rests, roll chock stand, grinding attachment and milling attachment are available as option according to customer's choice.

Technical Parameter:

Specifications	Units	AK-1800H/2	AK-2000H/2	AK-2200H/2	AK-2500H/2
Max. swing over bed	mm	1800	2000	2200	2500
Max. swing over tool post	mm	1400	1600	1800	2000
Max. length or workpiece	m	5-20	5-20	5-20	5-20
Max. weight of workpiece between centers	t	40/63/80	40/63/80	40/63/80	40/63/80
Max. torque of face plate	kN.m	90/100	90/100	90/100	90/100
Width of bed	mm	2050(Four guide)	2050(Four guide)	2050(Four guide)	2050(Four guide)
Total cutting capacity	kg	8000/9000	8000/9000	8000/9000	9000/12500/16000
Section dimension of tool shank	mm	70*70	70*70	70*70	70*70
Range of spindle speed	rpm	0.63-125	0.63-125	0.5-100	0.5-100
Chuck diameter	mm	1400	1600	1600	2000
Range of longitudinal feed	mm/r	1-4000	1-4000	1-4000	1-4000
Range of cross feed	mm/r	1-2000	1-2000	1-2000	1-2000
Longitudinal rapid traverse speed	mm/min	4000	4000	4000	4000
Cross rapid traverse speed	mm/min	2000	2000	2000	2000
Diameter of tailstock sleeve	mm	400/500/560	400/500/560	400/500/560	400/500/560
Power of main motor	kw	DC 90/110/125	DC 90/110/125	DC 90/110/125	DC 90/110/125
