Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Flat Bed Type CNC Lathe/CNC Turning Center CK-660,CK-500B,CK-560B

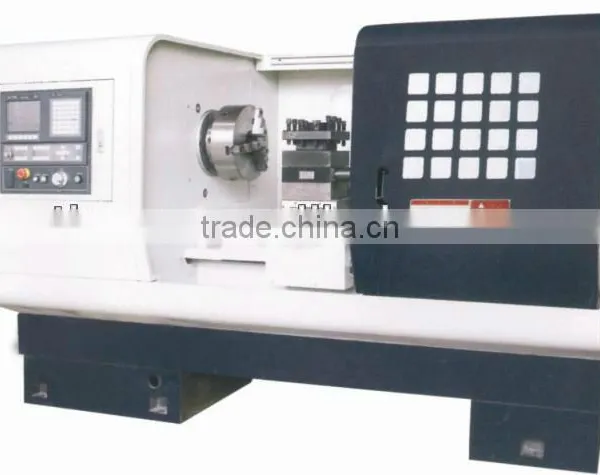

Flat Bed Type CNC Lathe/CNC Turning Center CK-660,CK-500B,CK-560B

Zhengzhou Timeway Machine Tool Co., Ltd.
Flat Bed Type CNC Lathe/CNC Turning Center CK-660,CK-500B,CK-560B thumbnail-1
Flat Bed Type CNC Lathe/CNC Turning Center CK-660,CK-500B,CK-560B photo-1
US$ 2,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 500/560/660mm
Place of Origin Henan, China
Brand Name TIMAC
Model Number CK-660,CK-500B,CK-560B
Voltage As request
Power(W) 7.5/11kw
Dimension(L*W*H) 2250/2500/3000/3500/4500x1200x1520mm
Weight 2700/3000/3500/4000/4600kg
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Flat bed type cnc lathe
2. Swing over bed 500, 560, 660mm
3. Different turning length
4. FANUC 0i mate TD controller

SpecificationUnitCK-500BCK-560BCK-660
Max. swing dia. over bedmm500560660
Max. swing dia. over carriagemm310330430
Center distancemm750/1000/1500/2000/3000
Max. turning lengthmm650/900/1400/1900/2900
Spindle nose A2-8D8
Spindle boremm80105
Spindel taper MT.No7113 1:20
Steps of spindle speed 2steps(Variable)4steps(Variable)
Range of spindle speedrpm

400~1600(high),

50~400(low)

27~135, 55~270,

160~805, 325~1630

Rapid feed for axis Zm/min10
Rapid feed for axis Xm/min8
Max. travel of axis Zmm720/970/1270/1970/2970
Max. travel of axis Xmm300320365
Min. inputmm0.001
Tool post stations 4/6
Tool sectionmm32×32
Tailstock sleeve diametermm75
Tailstock sleeve taper MT.No.5
Tailstock sleeve travelmm150
X/Z motor torqueNm7.5/10, 7.5/22,10/10,10/22
Main motor powerkw7.511
Cooling pump powerw90
Overall dimension(L×W×H)mm

2250/2500/3000/3500/4500

×1200×1520

2250/2500/3000/3500/4500

×1250×1580

Net weightkg2700/3000/3500/4000/46002800/3100/3700/4300/5300





Standard Accessories:

FANUC 0i mate TD CNC controller, FANUC servo feed motor, Inverter main motor, 3 jaw chuck, Electric tool post, Coolant supply system, Auto. Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc.



Optional Accessories:

Other brand CNC controller, 6 stations electric tool post, Hydraulic solid chuck, Hydraulic hollow chuck, Hydraulic tailstock.
