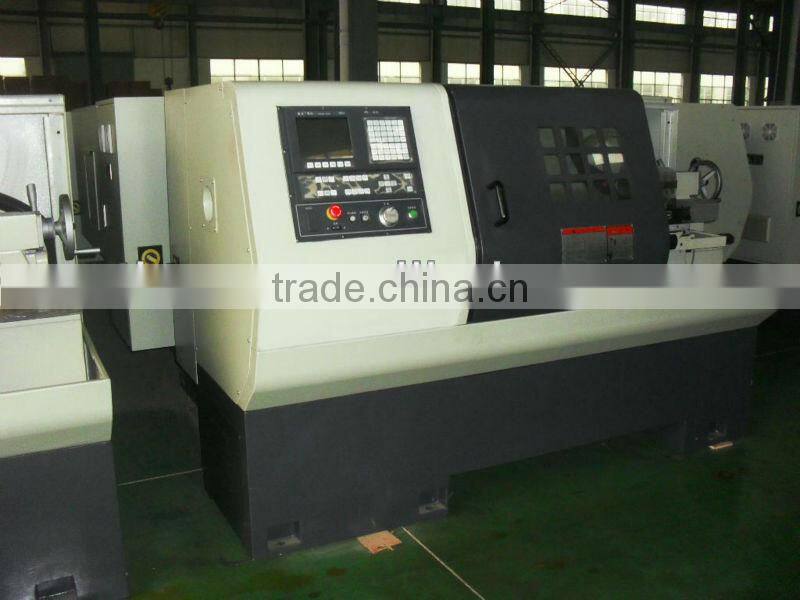

CK-500A Flat Bed Type CNC Lathe With Spindle Bore 80mm
US$ 10,000 - 35,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CK-460A Flat Bed Type CNC Lathe / 460mm CNC Horizontal LatheUS$ 10,000 - 35,000MOQ: 1 Set -
400mm Diameter Horizontal CNC Lathe CK-400AUS$ 10,000 - 35,000MOQ: 1 Set
-
400mm Swing Diameter Horizontal CNC Lathe CK-400SUS$ 5,000 - 20,000MOQ: 1 Set
-
Full-Function Horizontal CNC Turning Center With MillingUS$ 10,000 - 200,000MOQ: 1 Set
-
CNC Turning and Milling Machining CentreUS$ 10,000 - 200,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
500mm
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
CK-500A
Voltage
As Customers' Request
Power(W)
5.5KW
Dimension(L*W*H)
2060/2310/2790x1180x1500mm
Weight
2200x2350x2900kg
Certification
ISO, CE
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Flat bed cnc lathe2.Swing over bed 500mm
3.Center distance 750/1000/1500mm
4.Spindle hole 80mm
5.FANUC or GSK controller

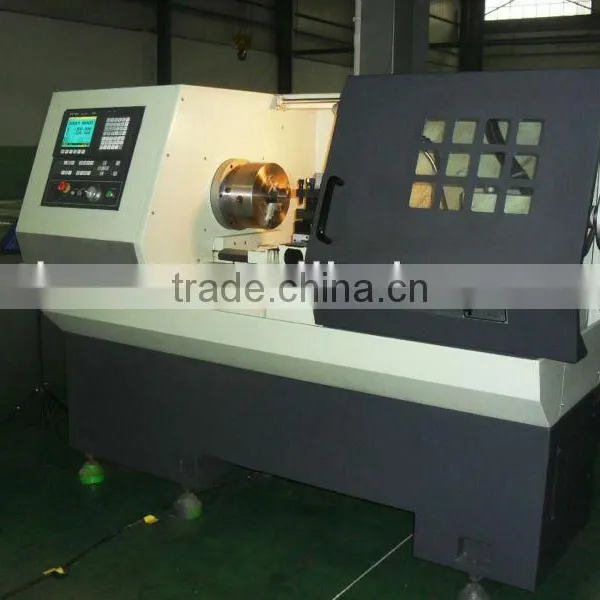

FLAT BED TYPE CNC LATHE
Swing over bed: 400mm, 460mm, 500mm
Center distance: 750mm, 1000mm, 1500mm
Spindle bore: 80mm
Variable spindle speed
| Specification | Unit | CK-400A | CK-460A | CK-500A |
| Max. swing dia. over bed | mm | 400 | 460 | 500 |
| Max. swing dia. over carriage | mm | 210/165 | 240/205 | 280/245 |
| Center distance | mm | 750/1000/1500 | ||
| Max. turning length | mm | 620/870/1370 | ||
| Spindle nose | D8 | |||
| Spindle bore | mm | 80 | ||
| Spindel taper | MT.No7 | |||
| Steps of spindle speed | Variable | |||
| Range of spindle speed | rpm | 100~2000 | ||
| Rapid feed for axis Z | m/min | 10 | ||
| Rapid feed for axis X | m/min | 8 | ||
| Max. travel of axis Z | mm | 710/960/1460 | ||
| Max. travel of axis X | mm | 250/330 | ||
| Min. input | mm | 0.001 | ||
| Tool post stations | 4/ 6/gang type | |||
| Tool section | mm | 25×25 | ||
| Tailstock sleeve diameter | mm | 75 | ||
| Tailstock sleeve taper | MT.No.4 | MT.No.5 | ||
| Tailstock sleeve travel | mm | 130 | ||
| X/Z motor torque | Nm | 4.7/7 | ||
| Main motor power | kw | 5.5( 7.5) | ||
| Cooling pump power | w | 75 | ||
| Overall dimension(L×W×H) | mm | 2060/2310/2790×1180×1500 | ||
| Net weight | kg | 2100/2250/2800 | 2200/2350/2900 | |
Standard Accessories: FANUC 0i mate TD CNC controller, FANUC servo feed motor, Inverter main motor, 3 jaw chuck, Electric tool post, Coolant supply system, Auto. Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc.
Optional Accessories: Other brand CNC controller, 6 stations electric tool post, Gang type tool post, Hydraulic solid chuck, Hydraulic hollow chuck, Hydraulic tailstock.
