CNC Vertical Lathe / CNC Lathe Machine With Specification For Sale
- 50 Set / Sets per Month
- China Port
- T/T
Product Details
Condition: | New | Type: | Vertical | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 530-1000mm | Brand Name: | TIMAC |
Model Number: | VK-500, VK-600, VK-800 | Voltage: | as customer's request | Power(W): | 11kw |
Dimension(L*W*H): | 1590*2670 *2545mm | Weight: | 5500-15000kg | Certification: | CE & ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

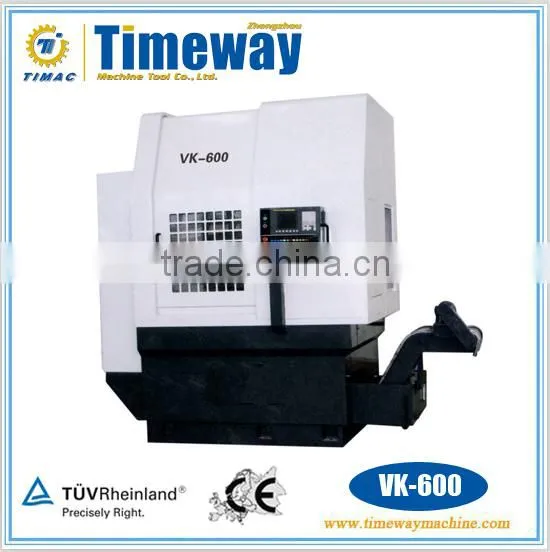

CNC Vertical Lathe Machine , CNC Lathe Machine Specification For Sale
Fertures:
1.Compact structure and rigid spindle component are good for heavy cutting ;
2.Easy to chuck and remove, workpiece roundness and other precision are ensured ;
3.The turret on the side moves along longitudinal or cross rails ;
4.There are three cross rails to support the slide ;
5.Ball screws and linear rails are used to ensure smooth feed ang high precision ;
6.Different handles, eletric buttons and CRT display are allon the same rocking panel for easy operation ;
7.Machine adopts totally sealed guard structure.
Parameters:
Specification | Unit | VK-500 | VK-600 | VK-800 |
Max. swing over bed | mm | 530 | 800 | 1000 |
Max.turning diameter | mm | 500 | 600 | 800 |
Max. turning height | mm | 450 | 600 | 800 |
Range of spindle speed | r/min | 100-2000 | 45-1000 | 50-2000 |
Spindle nose |
| A2-8 | A2-11 | A2-15 |
Spindle bearing diameter(front) | mm | 120 | 160 | 200 |
Stroke of X-axis | mm | 50-250 | 50-500 | 50-800 |
Stroke of Z-axis | mm | 450 | 650 | 850 |
Rapid speed of X-axis | m/min | 8 | 12 | 10 |
Rapid speed of Z-axis | m/min | 10 | 12 | 10 |
Accuracy of positioning X/Z-axis | mm | 0.018/0.02 | ||
Accuracy of repeat positioning X/Z-axis | mm | 0.006/0.01 | ||
Type of tool post |
| Horizontal | Vertical | |
Shank external cutting tool | mm | 25×25 | 32×32 | |
Boring tool | mm | Φ40 | Φ32,Φ40,Φ50 | |
Main motor | kw | 11 | 15 | 30/37 |
Motor of cooling pump | kw | 0.9 | 1.1 | |
Overall dimension (L×W×H) | mm | 1590×2670 | 3340×2630 | 2642×3478 |
Net weight | kg | 5500 | 12000 | 15000 |
