SIEMENS Big Spindle Bore Flat Bed CNC Lathe Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flat Bed CNC Lathe CK6140BUS$ 10,988 - 22,100MOQ: 1 Set -
Large Diameter Bore Horizontal Flat-bed CNC Lathe Machine(CNC Turning Machine)US$ 5,000 - 20,000MOQ: 1 Set
-
Flat Bed CNC Lathe AK-420US$ 10,988 - 19,259MOQ: 1 Set
-
Flat Bed CNC Lathe CK-500BUS$ 10,988 - 22,100MOQ: 1 Set
-
Flat Bed CNC Lathe Machine For Sale CK660NegotiableMOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
340/400mm
Brand Name
TIMAC
Model Number
CAK-340 CAK-400
Voltage
as customer's request
Power(W)
3 kw
Dimension(L*W*H)
1550*1360*700mm
Weight
1100/1200kg
Certification
CE & ISO
After-sales Service Provided
Engineers available to service machinery overseas

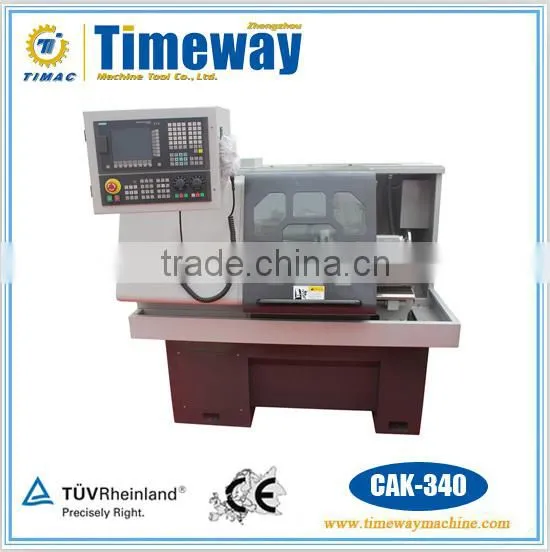

SIEMENS Big Spindle Bore Flat Bed CNC Lathe Machine for sale
(CAK-340 CAK-400)
Product Description
Features:
• Hardened & ground guideway, hardness is up to HRC55.
• Adopt lead screw from HJMC
• Electric tool post from Ya-xing
• X-axis with large travel wide guideways.
Standard Accessories:
SINUMERIK 808D controller, Manual 3-jaw self-centering chuck, Inverter variable speed spindle,
4 station electric tool post, Automatic lubricating unit, Manual moving tailstock, Cooling system, Working light
General tools.
Optional Accessories:
Full-closed guard, Gang type tool post, 6 station electric tool post, Sleeve spring collet, Hydraulic hollow chuck
Deatils Show:
-
42mm Big Spindle Bore
- Guideway & Tool post
- Chip removal easily
Parameter:
| Model | CAK-340 | CAK-400 |
| Max. swing dia. over bed | Φ 340mm | Φ 400mm |
| Max. swing dia. over carriage | Φ 170mm | Φ 200mm |
| Distance between two centers | 435mm | 535mm |
| Spindle bore | Φ 42mm | Φ 54 |
| Spindle taper | MT5 | MT6 |
| Spindle speed | 100~2500(4000)r.p.m | 50~2000(3500)r/min |
| Max. longitudinal travel (Z-axis) | 435mm | 515mm |
| Max. cross travel (X-axis) | 260mm | 300mm |
| Rapid feed for Z-axis | 8m/min | 8m/min |
| Rapid feed for X-axis | 6m/min | 6m/min |
| Min. setting unit | 0.001mm | 0.001mm |
| Tool post stations | 4/6/gang type | 4/6/gang type |
| Section of tool shank | 20×20mm | 20×20mm |
| Tailstock sleeve travel | 70mm | 140mm |
| Tailstock sleeve taper | MT3 | MT4 |
| Main motor (Inverter) | 3 kw | 4 kw |
| Overall dimensions (L×W×H) | 1550×1360×1700mm | 1820×1400×1730mm |
| N.W/G.W | 1100/1200kg | 1330/1430kg |
