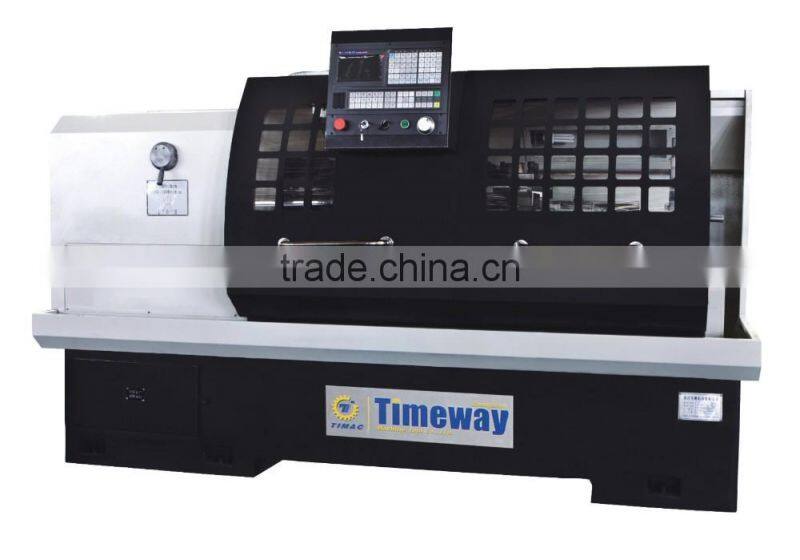

Help CenterCutting 20" Diameter Horizontal Flat-bed CNC Lathe Machine
Related Products
-
SIEMENS Big Spindle Bore Flat Bed CNC Lathe MachineNegotiableMOQ: 1 Set -
Flat Bed CNC Lathe CK6140BUS$ 10,988 - 22,100MOQ: 1 Set
-
Large Diameter Bore Horizontal Flat-bed CNC Lathe Machine(CNC Turning Machine)US$ 5,000 - 20,000MOQ: 1 Set
-
Flat Bed CNC Lathe AK-420US$ 10,988 - 19,259MOQ: 1 Set
-
Flat Bed CNC Lathe CK-500BUS$ 10,988 - 22,100MOQ: 1 Set
Precision Horizontal Flat-bed CNC Lathe Machine

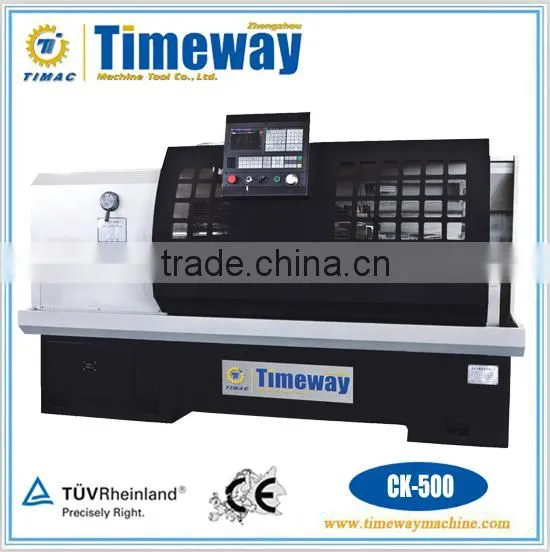

CK-500
Main Functions and Features
1. The large aperture strong cutting CNC lathe is a high rigidity and precision machining equipment, high precision, high reliability, high intensity performance, especially for rough finish, small batch, large and medium-sized workpiece, the machine is easy to operate, with the automatic processing inside and outside round, conical surface, grooves, arc, spherical, and a cariety of thread and other fuctions.
2. The bed legs is conjioned, all castings made of high-grade resin sand casting, and after artificial aging treatment; guideways ultrasound quenching precision grinding, manual scraping, good wear resistance, long-term stability to maintain the machining accuracy and service life, main motor adopt high-power frequency conversion motor, in order to meet the requirements of the powerful cutting machine adjustment range.
3. Spindle is supported at three points, four bearings, low speed high torque output in second gear inverter, vertical and horizontal carriage precision ball rod drive. System using Beijing KND control system, also can use the system according to the requirements of customers, such as Japan FANUC or Germany SIEMENS CNC system.
4. The workpiece clamping jaw chuck. Hydraulic chuck or pneumatic chuck according to customers.
Technical Parameters
| Specifications | Units | CK-500*1000 | CK-500*1500 |
| Working range | |||
| Max. swing dia. over bed | mm | Φ500 | Φ500 |
| Max. swing dia. over skateboard | mm | Φ275 | Φ275 |
| Distance between centers | mm | 1000 | 1500 |
| Max. X-axis travel | mm | 325 | 325 |
| Max. Z-axis travel | mm | 1000 | 1500 |
| Spindle | |||
| Diameter of spindle bore | mm | Φ80 | Φ80 |
| Spindle speed steps | 2 | 2 | |
| Spindle speed range | rpm | 60-700/160-1600 | 60-700/160-1600 |
| Size of manual chuck | mm | Φ250 | Φ250 |
| Tool | |||
| Tool shank specifications | mm | 25*25 | 25*25 |
| Station No. of gang tool | 4/6 | 4/6 | |
| Motor power | |||
| Main motor power | kw | 7.5 | 7.5 |
| X-axis servo motor power | kw | 5 | 5 |
| Z-axis servo motor power | kw | 7.5 | 7.5 |
| Coolant pump motor power | kw | 0.125 | 0.125 |
| Tailstock | |||
| Diameter of tailstock quill | mm | Φ75 | Φ75 |
| Travel of tailstock quill | mm | 150 | 150 |
| Tailstock taper | MT.No5 | Mt.No.5 | |
| Feed | |||
| X/Z axis min. amount of movement | mm | 0.001 | 0.001 |
| X-axis rapid feed | m/min | 8 | 8 |
| Z-axis rapid feed | m/min | 10 | 10 |
| Other | |||
| Machine dimensions(L*W*H) | mm | 2785*1415*1673 | 3285*1415*1673 |
| Gross weight | kg | 2600 | 2850 |
Standard Accessories Optional Accessories
Three-jaw chuck FANUC CNC system
Accessprial tools SIEMENS CNC system
System manual 10" Hydraulic chuck
User manual Pneumatic chuck
Tops
Leveling Wedge
