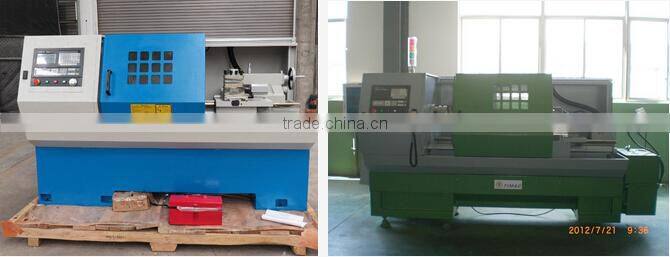

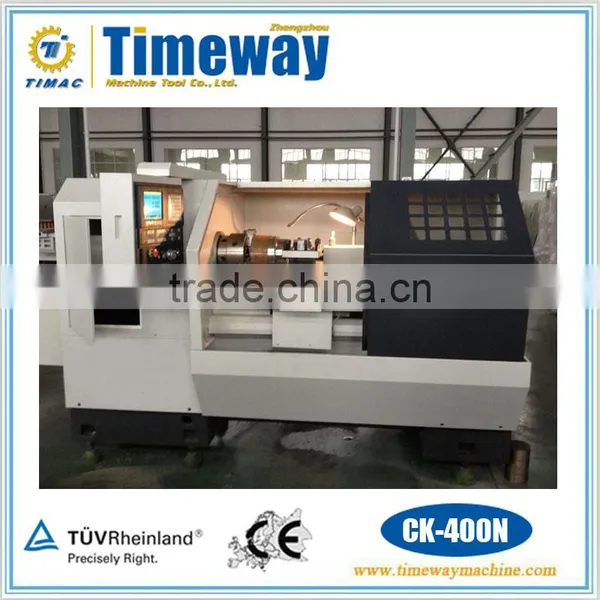

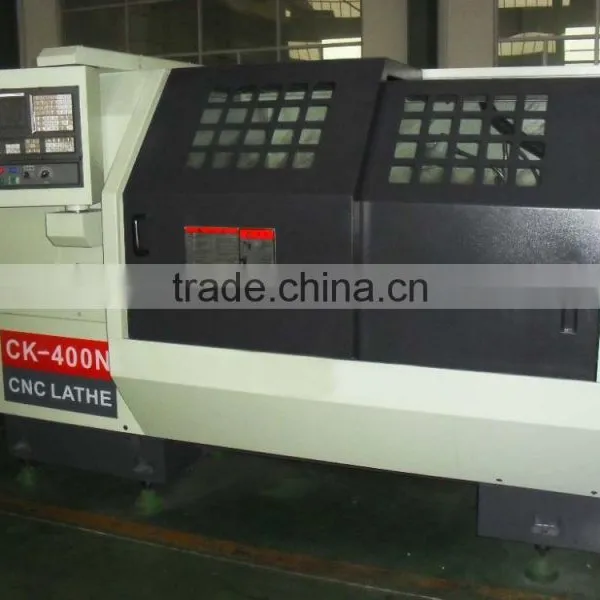

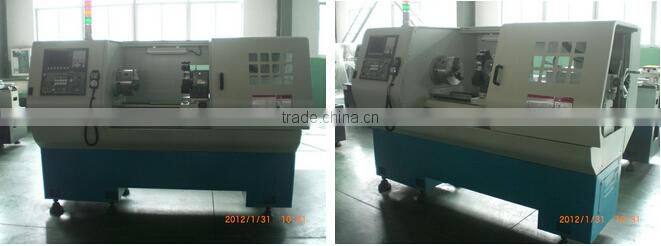

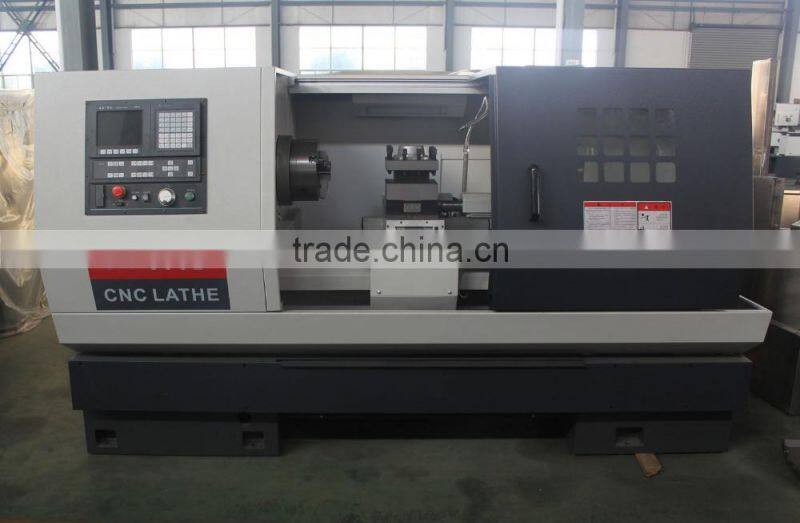

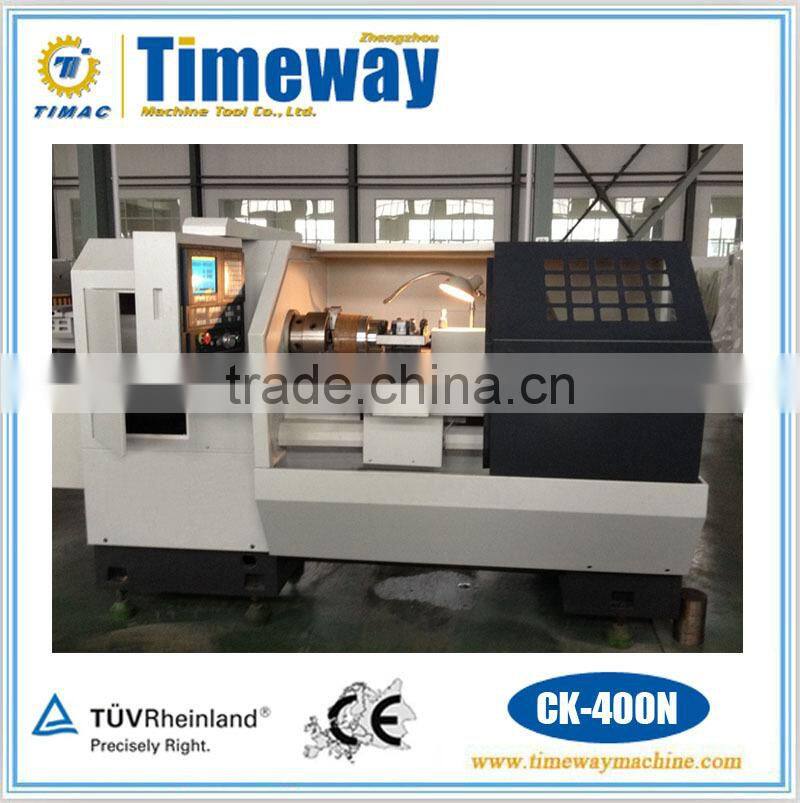

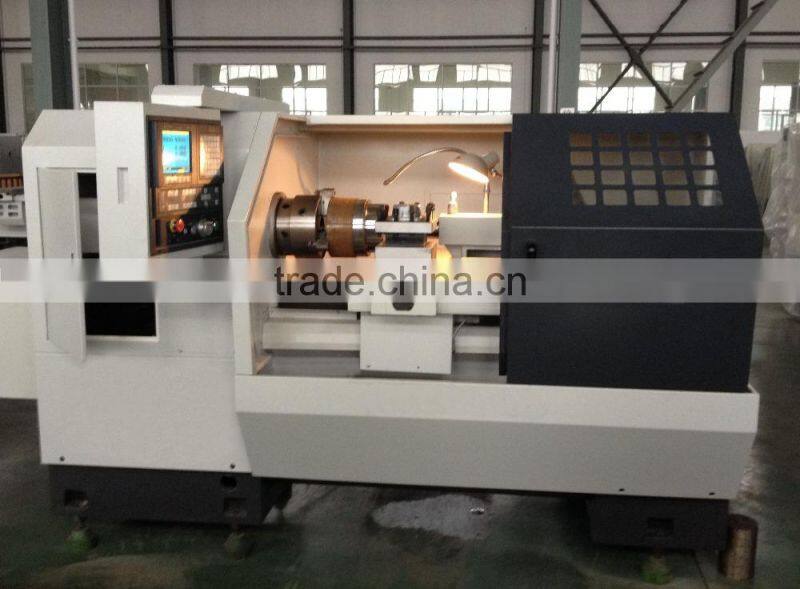

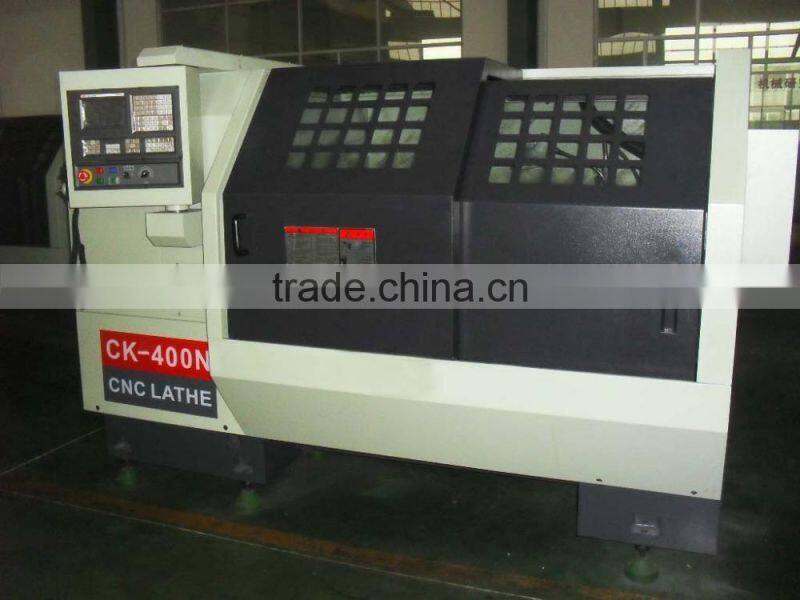

Economical Flat Bed CNC Lathe
Features:
1. Longitudinal and cross feeds are affected by ball leadscrews, driven by servo motors.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected.
The post is located on precision contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The spindle system is high in the rigidity and accuracy.
Parameter:
Specification | CK-400N | CK-500N | |
*Capacity | Max. swing over bed | Ø440mm | Ø500mm |
Max. swing over carriage | Ø210mm | Ø295mm | |
Width of bed | 405mm | ||
Maximum turned length | 1000mm | 1000/1500mm | |
Max. turning length | 900mm | ||
| |||
*Spindle | Spindle nose | A2—6 | D8 |
Spindle bore | Ø56mm | Ø80mm | |
Cone hole diameter and taper of spindle hole | MT.No6 | MT.No7 | |
Steps of spindle speed(Manual) | Variable | 3(variable within each step) | |
Range of spindle speed | 450~2800 r/min | 40~165,160~660,660~2000r/min | |
|
|
|
|
*Feed & travel | Rapid feed for Axis Z | 10m/min | |
Rapid feed for Axis X | 8m/min | ||
Max. travel of Axis Z | 920mm | ||
Max. travel of Axis X | 290mm | 310mm | |
Min. input | 0.001 mm | ||
|
|
| |
*Carriage | Tool post stations | 4-ways | |
Tool cross section | 25×25 mm | 32×32 mm | |
|
|
|
|
*Tailstock | External diameter | Ø75mm | |
Taper of bore | MT.No.5 | ||
Max. Traverse | 150mm | ||
|
|
| |
*CNC Controller | Alternatives | GSK; FANUC; SIEMENS | |
|
|
| |
*Other
| X/Z motor torque | 4.7/7Nm | 7/9.5Nm |
Power of main motor | 5.5 KW | 7.5 KW | |
Power of cooling pump | 90W | ||
Overall dimensions(L×W×H) | 2530×1400×1550mm | 2530/3030×1400×1600mm | |
Net weight | 2700kg | 2850/3050kg | |
***Standard items:
FANUC 0i mate TD CNC system, FANUC servo feed motor for X/Z axes, Inverter main motor, 3-jaw chuck, 4 station electric tool post, Coolant supply system, Auto. lubrication unit, Lighting unit, General tools, Operation and maintenance manuals(English edition).
***Optional items:
GSK980TD CNC system, 6 station electric toolpost, Hydraulic solid chuck, Hydraulic hollow chuck, Hydraulic tailstock
* CK-300S, CK-360S, CK-400S Sereis CNC Lathe
* CK-400A, CK-460A, CK-500A Sereis CNC Lathe
* CK-500B, CK-560B, CK-660 Sereis CNC Lathe
* CK-400N, CK-500N Sereis CNC Lathe

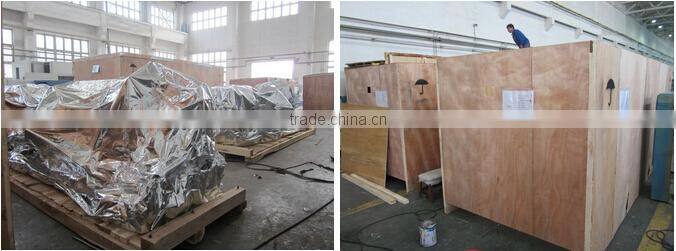

Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
