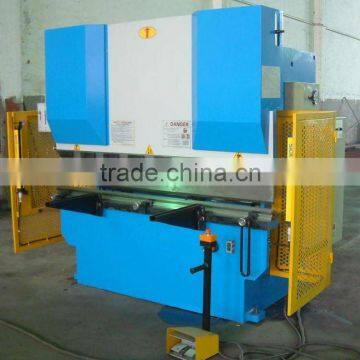

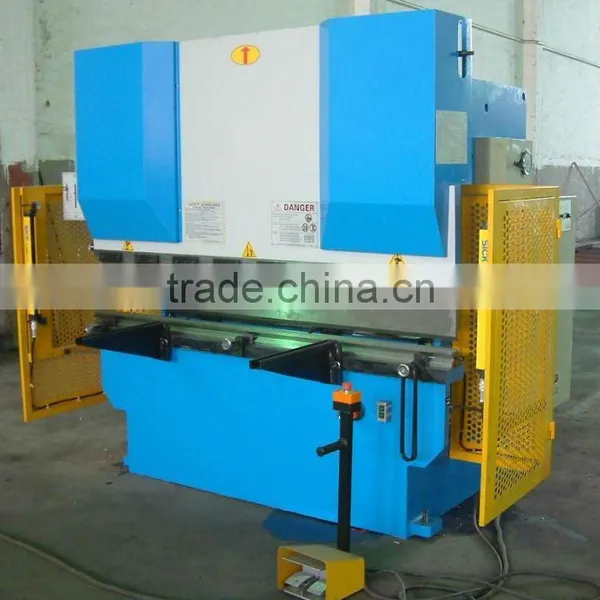

Hydraulic Press Brake
Features:
1. The Hydraulic Press Brake machine adopts steel-welded structure, with sufficient strength and rigidity.
2. Hydraulic drive can avoid the serious overload caused by improper operation.
3. The machine has stability and convenient operation, is safe and reliable.
4. Upper ram is the holistic faceplate with deflection compensation structure, which can get higher bending precision.
5. With external mechanical stop, ensuring quick operation and convenient maintenance.
6. With various mould, the sheet metal can be bended or work in different shape, also can carry out cutting process.
7. This machine is widely used to process sheet metal bending in automobiles, machinery, shipbuilding, electrical appliances, light industry and decoration industry.
Specification | Uint | HPB-160x3200 | |
Nominal Pressure | KN | 1600 | |
Length of working table | mm | 3200 | |
Bending sheet intensity | N/mm2 | 450 | |
Throat depth | mm | 400 | |
Stroke of the ram | mm | 180 | |
Max. open height between worktable and ram | mm | 475 | |
Stroke speed of the ram | Idle | mm/s | 65 |
Working | mm/s | 6 | |
Return | mm/s | 50 | |
Main motor power | Style |
| Y160L-6 |
Power | KW | 11 | |
Revolutions | rpm | 970 | |
axial plunger pump | Style |
| 40MCY14-1B |
flew | L/min | 40 | |
Pressure | MPa | 31.5 | |
Max. working pressure of hydraulic system | MPa | 25 | |
Over dimensions (LxWxH) | mm | 3350x1650x2510 | |
