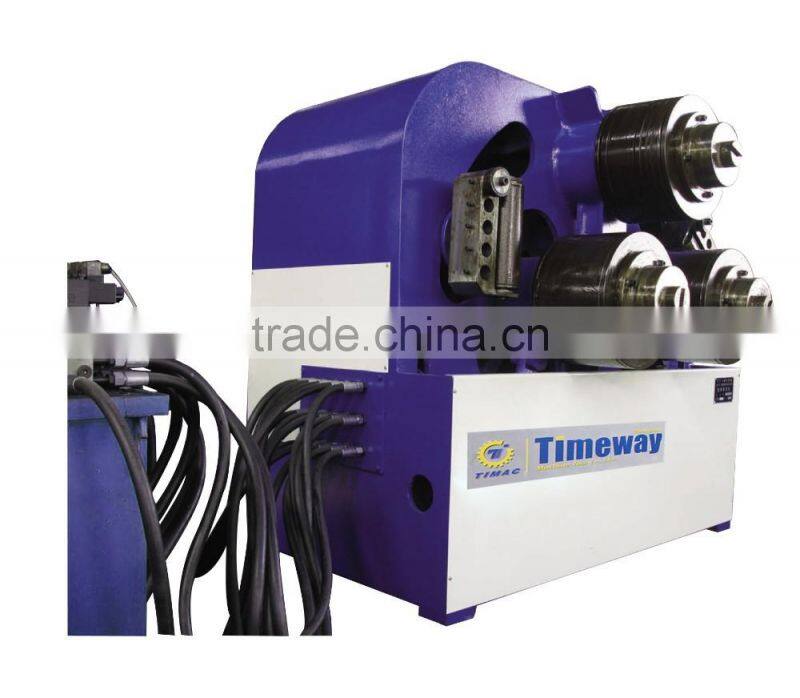

CNC Vertical Full Hydraulic Pipe and Tube Profile Bending Machine With Arc Adjustable(HW-180)
US$ 10,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
HW-180
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Special Use NC Hydraulic Three Roller Plate Rolling Machine for Ships Building or TrailerUS$ 100,000 - 500,000MOQ: 1 Set -
PLC Control Hydraulic Arc Down-Adjusting Three Roller Plate Bending MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
CNC Sheet Metal Bending Machine / CNC Press BrakeNegotiableMOQ: 1 Set
-
WC67Y Series Hydraulic Sheet Metal Bending MachineUS$ 10,000 - 99,990MOQ: 1 Set
-
8 Axis CNC Wire Profile Forming Bending MachineUS$ 1,000 - 100,000MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
HW-180
Machine Type
Pipe and Tube Bending Machine
Raw Material
Other, pipe, steel bar
Material / Metal Processed
Other, Aluminum, carbon steel, stainless steel
Power
Cnc
Automation
Automatic
Extra Services
End Forming
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
CNC Full Hydraulic Bottom Rollers Arc Adjusting Pipe and Tube
Profile Bending Machine
HW-180

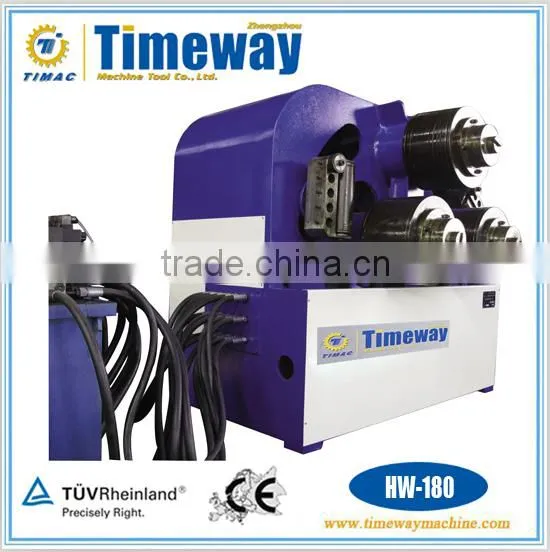

Main Outlook
Product Description
Features:
The material winding machine producted by our company is specially used in the volume curved angle steel, channel steel, I-steel, flat steel, side steel, round steel and so on, each kind of profiled bar highly effective processing equipment, and may one time winding circle, corrective round working procedure, widely used in the petroleum, chemical industry, water and electricity, shipbuilding and machine manufacture and so on.
Specifications List
Technical Parameters
| Specifications | Model | HW-6 | HW-16 | HW-30 | HW-45 | HW-75 | HW-100 |
| Max. anti-winding cass-section moulds(cm³) | 6 | 16 | 30 | 45 | 75 | 100 | |
| Winding speed(m/min) | 6 | 5 | |||||
| Max. Yield strength(Mpa) | 245 | ||||||
|
Angle steel internal winding |
Max. cross-section(mm) | 40*40*5 | 70*70*8 | 90*90*10 | 100*100*16 | 120*120*10 | 125*125*14 |
| Min. winding diameter(mm) | 800 | 1000 | 1200 | 1500 | 2000 | 2000 | |
| Min. cross-section(mm) | 20*20*3 | 30*30*3 | 35*35*3 | 36*36*5 | 38*30*4 | 40*40*4 | |
| Min. winding diameter(mm) | 400 | 500 | 560 | 600 | 600 | 800 | |
|
Angle steel external winding |
Max. cross-section(mm) | 50*50*5 | 75*75*10 | 90*90*10 | 100*100*16 | 120*120*10 | 125*125*14 |
| Min. winding diameter(mm) | 800 | 1000 | 1000 | 1300 | 1600 | 2000 | |
| Min. cross-section(mm) | 20*20*3 | 30*30*3 | 35*35*3 | 36*36*3 | 38*38*4 | 40*40*4 | |
| ding diameter(mm) | 400 | 400 | 500 | 600 | 760 | 800 | |
|
Channel steel internal winding |
Model | 8 | 12 | 18 | 20 | 25 | 28 |
| Min. winding diameter(mm) | 600 | 800 | 900 | 1000 | 1100 | 1200 | |
|
Channel steel external winding |
Model | 8 | 14 | 18 | 20 | 25 | 28 |
| Min. winding diameter(mm) | 700 | 900 | 1000 | 1150 | 1600 | 1700 | |
|
Flat steel internal winding |
Max. cross-section(mm) | 100*18 | 150*25 | 180*25 | 200*30 | 210*40 | 250*40 |
| Min. winding diameter(mm) | 600 | 700 | 800 | 900 | 1000 | 1200 | |
|
Flat steel external winding |
Max. cross-section(mm) | 50*12 | 75*16 | 90*25 | 100*30 | 110*40 | 120*40 |
| Min. winding diameter(mm) | 500 | 760 | 900 | 1000 | 1100 | 1200 | |
| Machine dimensions(L*W*H)(m) | 1.21*0.95*1 | 2.08*1.35*1.2 | 2.06*1.19*1.3 | 1.6*1.26*1.53 | - | 2.94*1.9*1.77 | |
| Specifications | Model | HW-140 | HW-180 | HW-280 | HW-400 | HW-500 |
| Max. anti-winding cass-section moulds(cm³) | 140 | 180 | 280 | 400 | 500 | |
| Winding speed(m/min) | 5 | 4 | ||||
| Max. Yield strength(Mpa) | 245 | |||||
|
Angle steel internal winding |
Max. cross-section(mm) | 140*140*16 | 150*150*16 | 160*160*25 | 180*180*14 | 200*200*24 |
| Min. winding diameter(mm) | 2400 | 2600 | 3000 | 3600 | 4000 | |
| Min. cross-section(mm) | 45*45*5 | 50*50*6 | 63*63*6 | 75*75*6 | 85*85*6 | |
| Min. winding diameter(mm) | 1000 | 1200 | 1300 | 1400 | 1600 | |
|
Angle steel external winding |
Max. cross-section(mm) | 140*140*16 | 150*150*16 | 180*180*20 | 200*200*24 | 250*250*25 |
| Min. winding diameter(mm) | 2200 | 2600 | 3000 | 3600 | 4000 | |
| Min. cross-section(mm) | 45*45*5 | 50*50*6 | 63*63*6 | 75*75*6 | 85*85*6 | |
| ding diameter(mm) | 800 | 1000 | 1100 | 1260 | 1600 | |
|
Channel steel internal winding |
Model | 30 | 32 | 36 | 40 | 50 |
| Min. winding diameter(mm) | 1200 | 1500 | 1800 | 2000 | 2400 | |
|
Channel steel external winding |
Model | 30 | 30 | 32 | 36 | 40 |
| Min. winding diameter(mm) | 1700 | 1800 | 1900 | 2000 | 2400 | |
|
Flat steel internal winding |
Max. cross-section(mm) | 280*50 | 320*50 | 350*60 | 380*75 | 500*76 |
| Min. winding diameter(mm) | 1300 | 1400 | 1600 | 2000 | 2400 | |
|
Flat steel external winding |
Max. cross-section(mm) | 150*40 | 180*40 | 190*50 | 200*56 | 200*60 |
| Min. winding diameter(mm) | 1500 | 2000 | 2100 | 2200 | 2500 | |
| Machine dimensions(L*W*H)(m) | 2.18*2.5*2.58 | 2.3*2.55*2.42 | - | - | - | |
