PLC Control Hydraulic Three roller Arc Down-Adjusting
Plate Rolling Machine

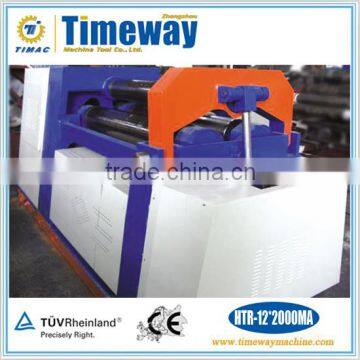

HTR-12*2000MA
Features:
1. The upper roller is fixed. The two lowers can move up and down in arc way around fixed roller. It can finish pre-bending and rolling by feeding once.
2. The three rollers are driving-roller. It can prevent skidding while rolling thin steel plate.
3. It's controlled by micro-machine and has digital display, simply operation and high efficiency.
4. With compact structure, it is economical and pratical and fit for rolling thin and medium plate.
Processing Methods:
Rolling Method Ⅰ: Rolling after pre-bending
Rolling Method Ⅱ: Pre-bending after rolling
Technical Parameters
| Specificaitons |
Max. thickness (mm) |
Max. pre-bending thickness (mm) |
Max. width (mm) |
Plate yield limit (Mpa) |
Full loading min. bending dia.(mm) |
Upper roller diameter (mm) |
Bottom roller diameter (mm) |
Rolling speed (m/min) |
Main motor power (kw) |
| HTR-6*2000MA | 6 | 4 | 2000 | 245 | 600 | 220 | 210 | 5.5 | 5.5 |
| HTR-8*2500MA | 8 | 6 | 2500 | 245 | 650 | 240 | 240 | 5 | 11 |
| HTR-12*2000MA | 12 | 8 | 2000 | 245 | 700 | 250 | 250 | 5 | 11 |
| HTR-15*2000MA | 15 | 10 | 2000 | 245 | 700 | 300 | 300 | 5 | 15 |
| HTR-16*2500MA | 16 | 12 | 2500 | 245 | 800 | 330 | 320 | 5 | 18.5 |
| HTR-20*2000MA | 20 | 16 | 2000 | 245 | 800 | 320 | 320 | 4.5 | 22 |
| HTR-20*2500MA | 20 | 16 | 2500 | 245 | 900 | 350 | 340 | 4.5 | 22 |
| HTR-25*2000MA | 25 | 20 | 2000 | 245 | 850 | 330 | 330 | 4.5 | 22 |
| HTR-25*3000MA | 25 | 20 | 3000 | 245 | 1300 | 460 | 460 | 4 | 30 |
| HTR-30*2000MA | 30 | 25 | 2000 | 245 | 1300 | 420 | 420 | 4 | 30 |
| HTR-40*2000MA | 40 | 32 | 2000 | 245 | 1500 | 550 | 550 | 3 | 37 |

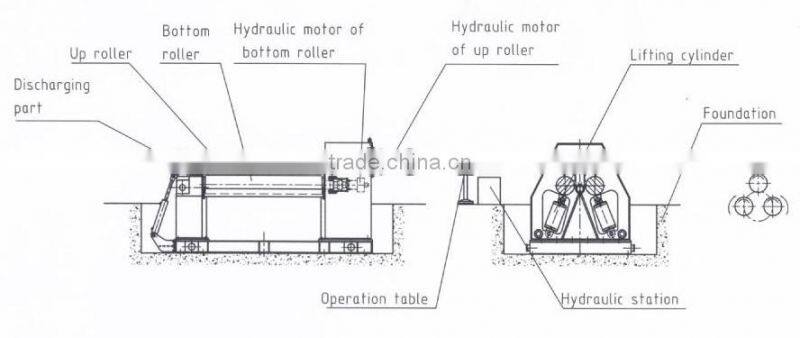

Foundation Plan
