CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine With Pre-Bending

CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine With Pre-Bending thumbnail-1
CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine With Pre-Bending thumbnail-2
CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine With Pre-Bending thumbnail-3
CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine With Pre-Bending thumbnail-4
CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine With Pre-Bending photo-1
CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine With Pre-Bending photo-2
CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine With Pre-Bending photo-3
CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine With Pre-Bending photo-4
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
UTR-40*2500
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name TIMAC
Model Number UTR-40*2500
Machine Type Other, Coiling bending machine, Roll forming machine, Roller-bending machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Other, All kinds of steel sheet
Power Cnc
Automation Other, Semi-automatic
Extra Services Other, Rolling cone workpiece
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

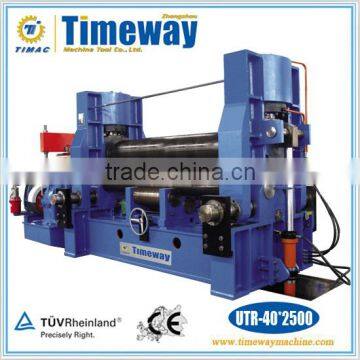

CNC Upper Roller Universal Hydraulic Plate Rolling Machine

UTR-40*2500



Main Outlook



CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine with Pre-Bending

Product Description



Features:



1. The device is hydraulic three-rollers rolling machine, it used to bend plate into cylinder-shap, arc-shape in normal temperature. The upper roller of the device can lift up and down, level left and right. Level move up roller to pre-bend the plate, let the upper roller in asymmetrical location relative two bottom rollers. Upper roller's lift movement adopts hydraulic driven, and level move adopts mechanical driven.

2. Unique curved technology, the end part of high accuracy has in advance curved, no back angle when bending continuously, curved course digital control.

3. Man-machine interaction control interface, efficient intelligent operation. Physical curved technology software man-machine interaction window curved course automatic compensation.

4. Rich curved shape, have rolling O-type, U-type, multistage R and other different shape.



Specifications List



Technical Parameters of Small Size CNC Upper Roller Universal Plate Rolling Machine

Model

Max. rolling

 thickness

(mm)

Max. pre-rolling

thickness

(mm)

Plate width

(mm)

Diameter of

upper roller

(mm)

Main motor

power

(kw)
UTR-12*2000 12 10 2000 250 5.5
UTR-16*2000 16 12 2000 255 7.5
UTR-16*2500 16 12 2500 300 11
UTR-18*3000 18 14 3000 350 11
UTR-20*3000 20 16 3000 375 15
UTR-25*2500 25 20 2500 380 15
UTR-30*2500 30 25 2500 410 22
UTR-30*3000 30 25 3000 450 30
UTR-32*3000 32 28 3000 480 30
UTR-35*2500 35 30 2500 460 30
UTR-35*3000 35 30 3000 510 37
UTR-40*2500 40 35 2500 500 37
UTR-40*3000 40 35 3000 540 45



Technical Parameters of Medium Size CNC Upper Roller Universal Plate Rolling Machine

Model

Max. rolling

thickness

(mm)

Max. pre-rolling

thickness

(mm)

Plate width

(mm)

Diameter of

upper roller

(mm)

Main motor

power

(kw)
UTR-40*4000 40 32 4000 610 45
UTR-45*3000 45 40 3000 590 45
UTR-45*4000 45 40 4000 660 45
UTR-50*4000 50 45 4000 700 55
UTR-55*3000 55 45 3000 620 55
UTR-55*4000 55 50 4000 750 55
UTR-60*3000 60 50 3000 650 55
UTR-60*4000 60 55 4000 780 75
UTR-65*4000 65 60 4000 810 75
UTR-70*3000 70 60 3000 710 75
UTR-70*4000 70 65 4000 820 75
UTR-75*3000 75 65 3000 740 75
UTR-80*3000 80 70 3000 760 75
UTR-80*4000 80 75 4000 860 90
UTR-90*3000 90 80 3000 790 90
UTR-100*3000 100 90 3000 820 90



Technical Parameters of Large Size CNC Upper Roller Universal Plate Rolling Machine



Model

Max. rolling

thickness

(mm)

Max. pre-

rolling

thickness

(mm)

Plate width

(mm)

Diameter of

upper roller

(mm)

Main motor

power

(kw)
UTR-110*4000
 		110 90 4000 940 90
UTR-120*3000 120 100 3000 860 90
UTR-120*4000 120 100 4000 990 110
UTR-130*3000 130 110 3000 960 2*75
UTR-160*3000 160 120 3000 1080 2*75
UTR-160*4000      160 130 4000 1260 2*90



Main Images

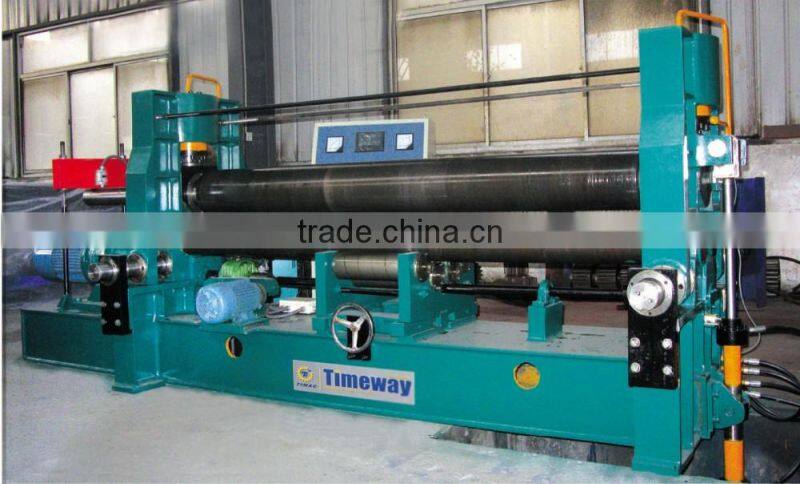

Small Size

CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine with Pre-Bending

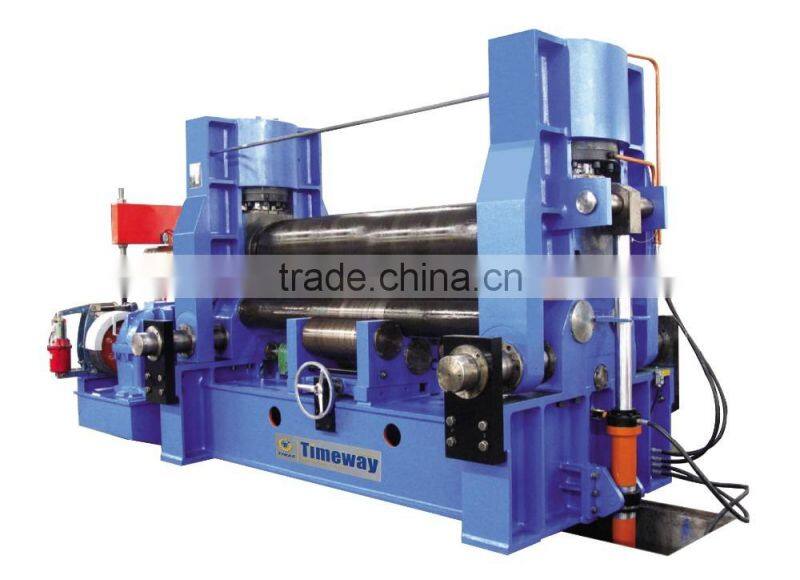

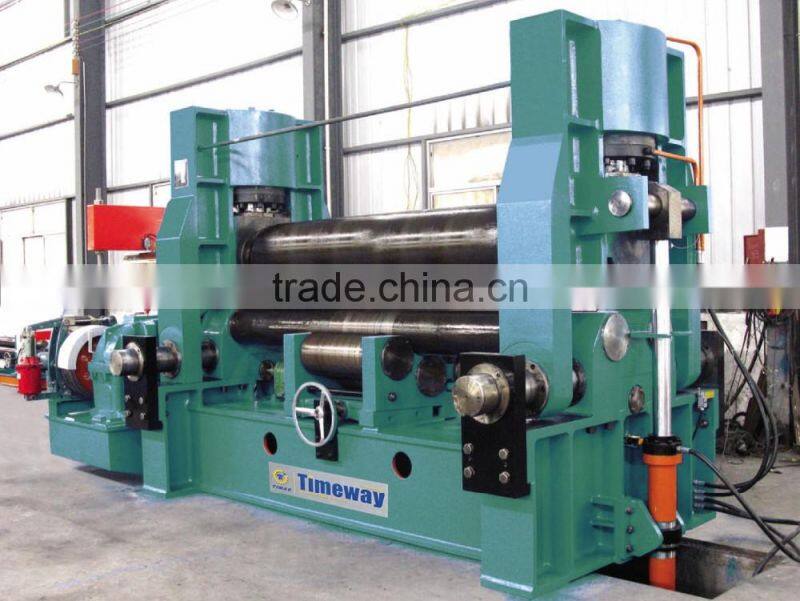

Medium Size

CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine with Pre-Bending

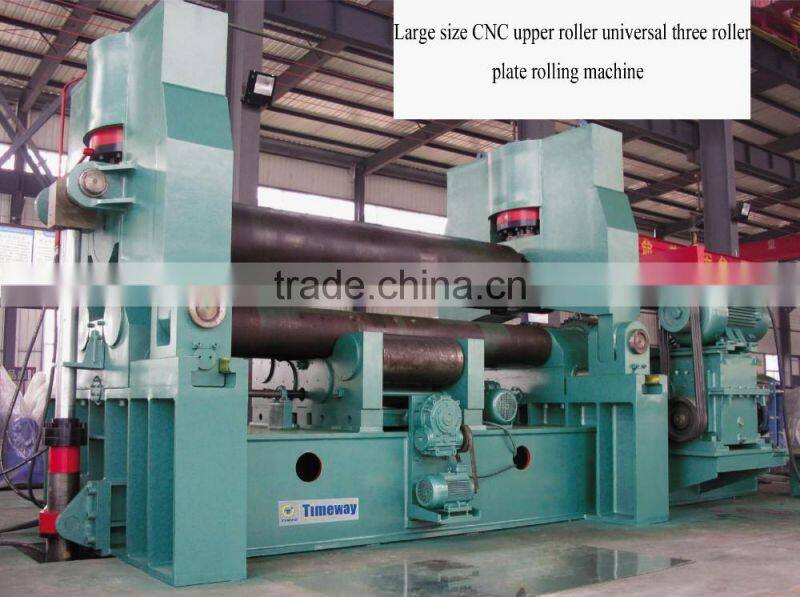

Large Size

CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine with Pre-Bending



Company Information



CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine with Pre-Bending

CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine with Pre-Bending



Certifications



CNC Small Size Upper Roller Universal Three Roller Plate Rolling Machine with Pre-Bending
