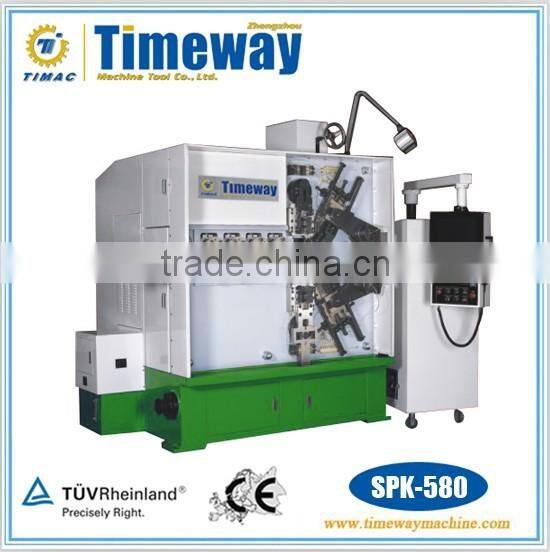

Five-axis CNC High Efficiency Wire Spring Coiling Bending Machine
SPK-580
Technical Parameter
Model |
SPK-580 |
Total power |
55kw |
Axes count |
5 axis |
Wire size range |
Φ3.0-Φ8.0 |
Max. feeding speed |
72m/min |
Feeding axes count |
4pcs. |
Number of machining workpiece per minute |
1-60pcs./min. |
Max. feeding length |
Unlimited |
Machine dimension(L*W*H) |
1620*1895*2270mm |
Machine weight |
9000kg |
Voltage(AC) |
3-380V AC 50HZ |
Performance and Feature
- SPK-580 has five axis which can work in high speed single-step or synchronously.
- This is a machine especially for making compression spring.
- It is new in design, stable in operation. Precise in the products it make.
- The servo motor of it is imported from Japan and we introduce the most famous yitu computer control system from Taiwan.
- With function of graphics system, only need to input the relative parameters, the wire diameter, the number of turns and wire diameters etc., then the program will be generated automatically in the computer
- With fuction of camera spring length gauge, the spring will be amplifying and showed on the computer, it can help you to control the length accurate.
Other Spring Machine
SPK-30 SPK-40
SPK-660 SPK-8

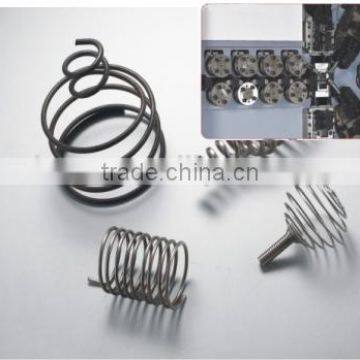

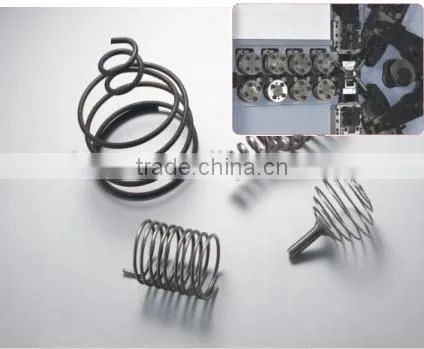

Workpiece Sample
Spring Tool
Automatic Wire Feeding Machine
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
