Japanese Brand Chassis 16 m High Platform Truck

FOB Price

USD $29,200 - $34,500 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Shanghai or any port of China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Transmission Type:	Manual	Condition:	New	Emission Standard:	Euro 4
Fuel Type:	Diesel	Dimensions (L x W x H) (mm):	7400x2000x3100 mm	Place of Origin:	Hubei, China
Brand Name:	Isuzu	Model Number:	CLW5060JGKQ4

Product Description

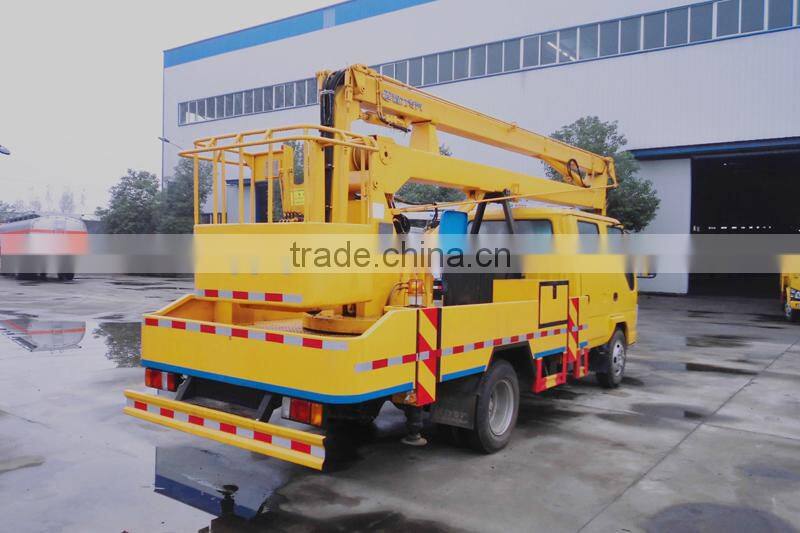

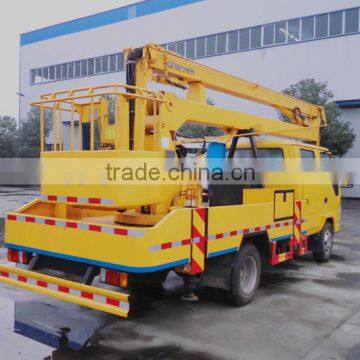

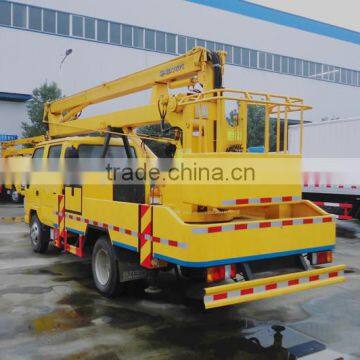

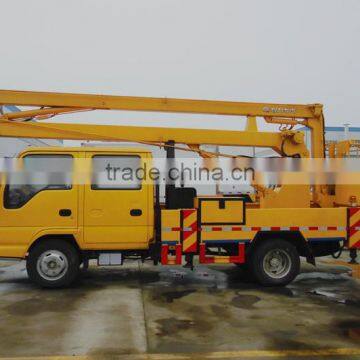

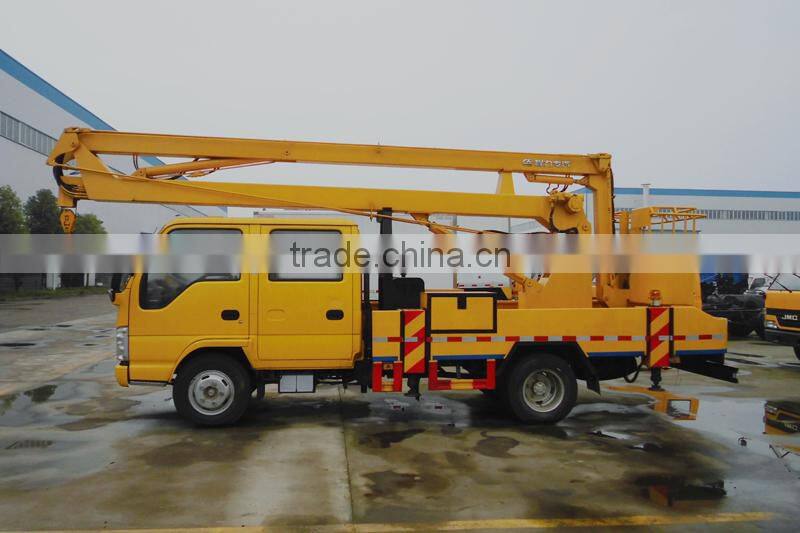

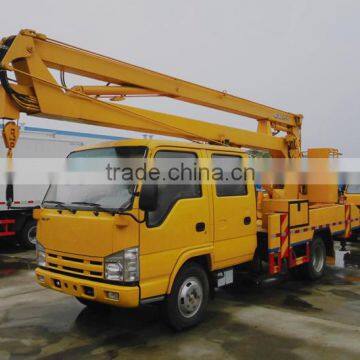

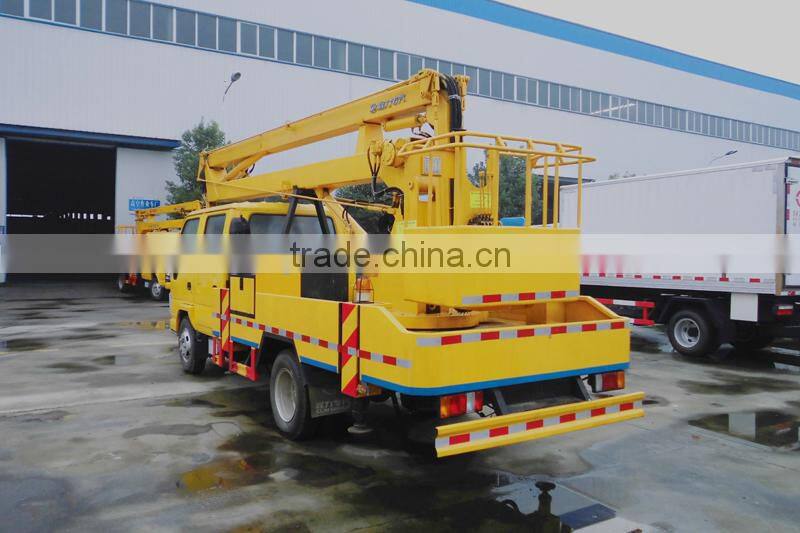

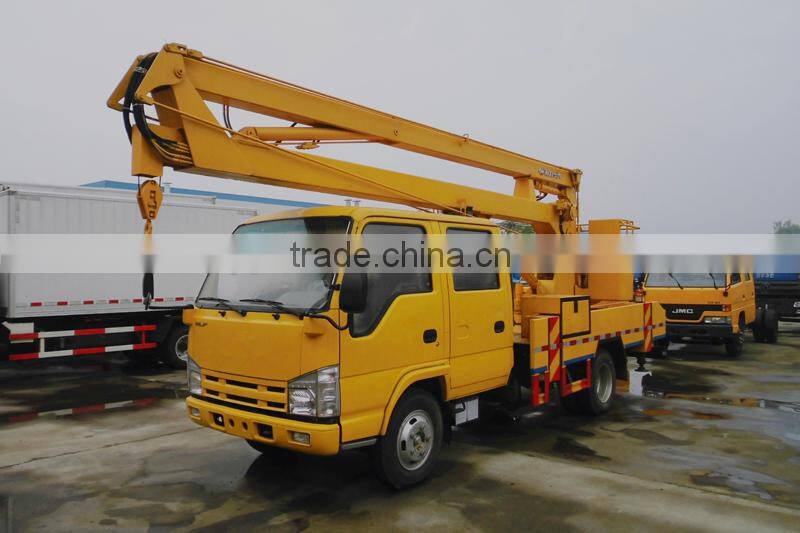

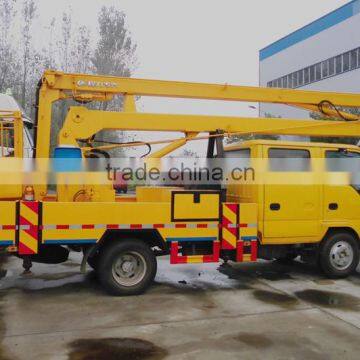

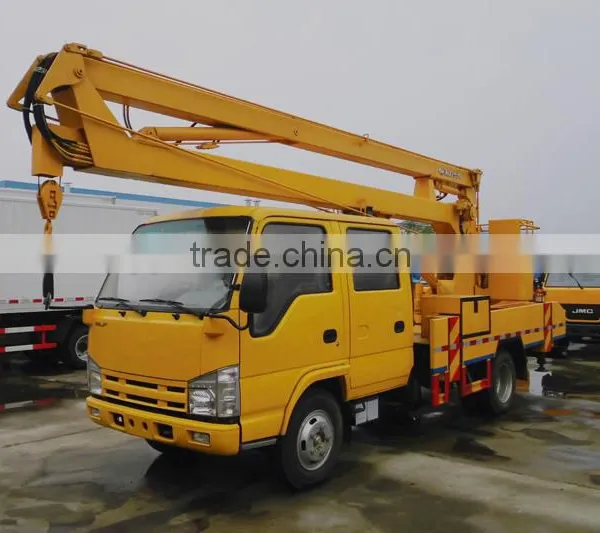

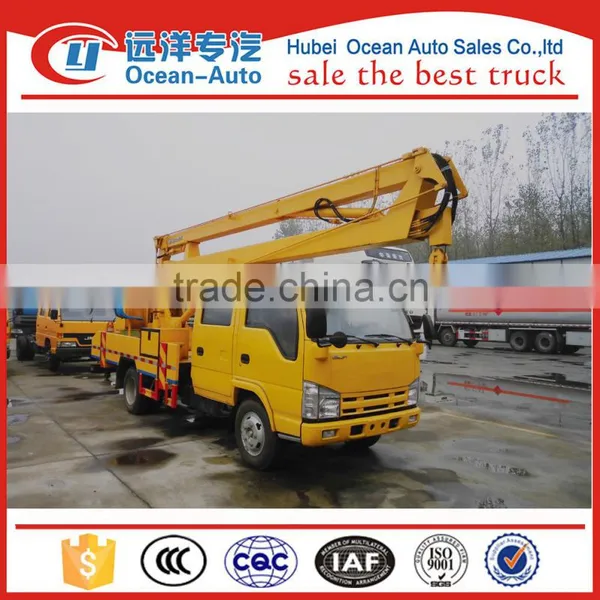

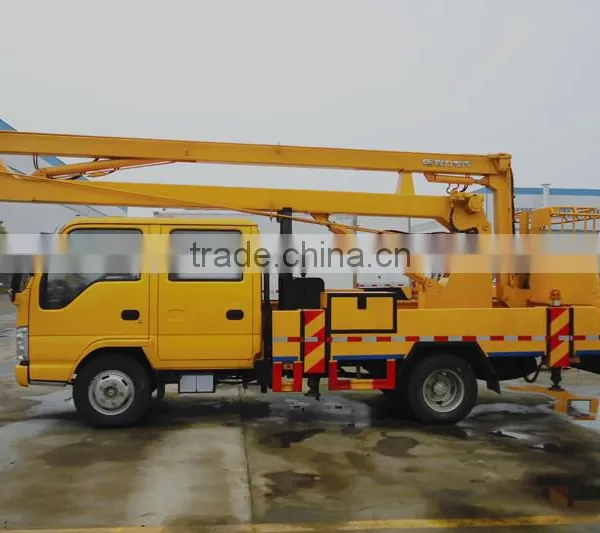

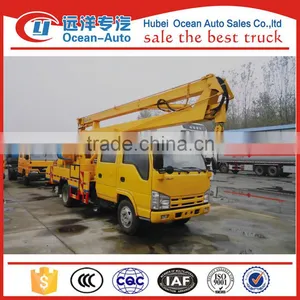

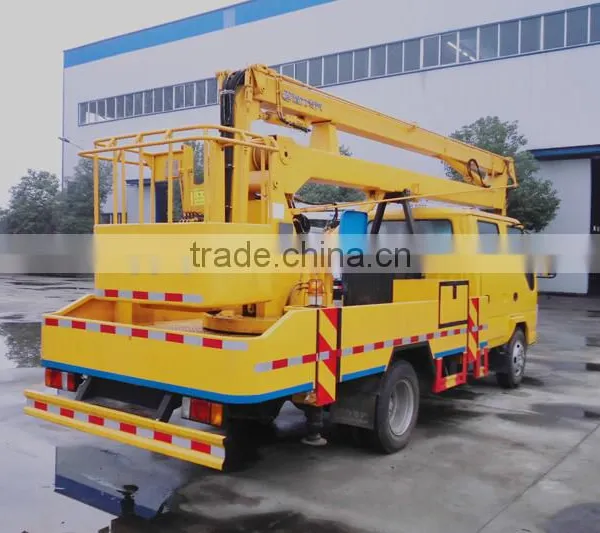

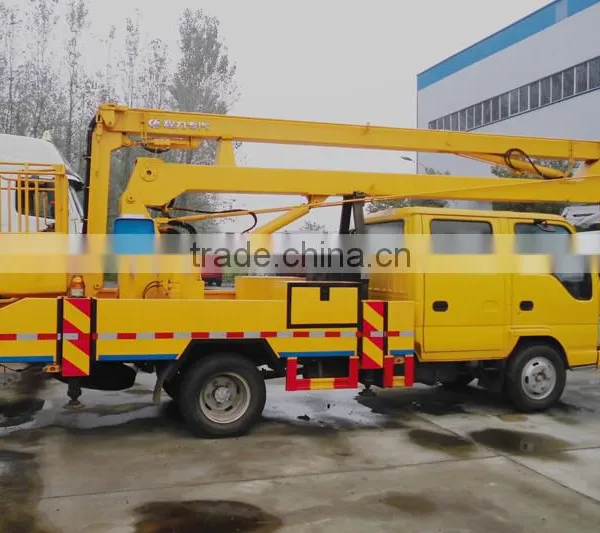

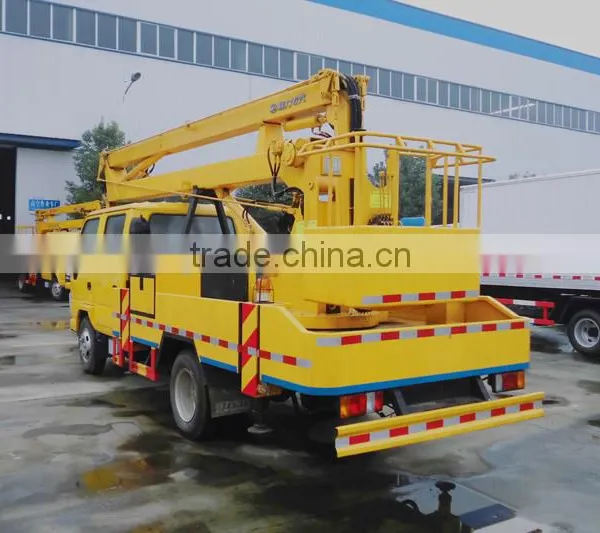

Japanese Brand Chassis 16 m High Platform Truck

Product Description

High Altitude Operation Truck, mainly means the truck that could lift up and down the platform to operate by several hydraulic cylinder supported with the hydraulic system or electric system above the height of 3 meters.

The high operation truck with people loading is one of the advanced mechanic equipments. The worker work at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.

1.Technical Specification

Item		Unit	Specification
Product name			high-altitude truck
Chassis model			QL10703HWRY
	Gross weight	kg	5660
	Curb weight		5335
	Overall dimension	mm	7400×2000×3100
	wheelbase		3360
	Approach/departure angle	°	24/10
Engine model			4JB1CN
Engine manufacturer			Isuzu isuzu (chongqing) engine co., LTD
Transmission			MSB 5 gears
Cabin			Double cab, luxurious interior trim and seat, with power steering,air conditioning, USB interface radio.
Emission standard			Euro IV
Displacement / Power		ml/kw	2771/ 72
Tire specification / Number		pcs	7.00-16/6
Max speed		km/h	105
Max working height		m	16
Rated platform load		kg	200
Rated manned platform		man	2
Slewing angle(Left,Right)		°	360
Outrigger type / Q’ty		pcs	H-type, 4 pcs
Remark		The whole truck is operated through upper and lower hydraulic operation, equipped with hook.

Product Overviews

Various of Famous Brand Chassis for High-altitude Operation Truck

Packaging

(1) About the package of our trucks,usually it is nude that covered with wax. And it also can be packed as your need.

(2) About the shipping,there are many ways, such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.

Factory Overviews1

Contact Us

Hubei Ocean Special Automobile Co., Ltd.: Contact nameEmma ma; Phone86-722-3819709; AddressChengli automobile industrial park, South suburb ,Suizhou city, HuBei province , China Suizhou,Hubei
