18 m Elevating Platform Truck / Japanese High-altitude Operation Truck

FOB Price

USD $40,000 - $43,500 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Shanghai or any port of China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Transmission Type:	Manual	Condition:	New	Emission Standard:	Euro 4
Fuel Type:	Diesel	Dimensions (L x W x H) (mm):	8315x2320x3500 mm	Place of Origin:	Hubei, China
Brand Name:	Isuzu	Model Number:	JDF5070JGKQ4

Product Description

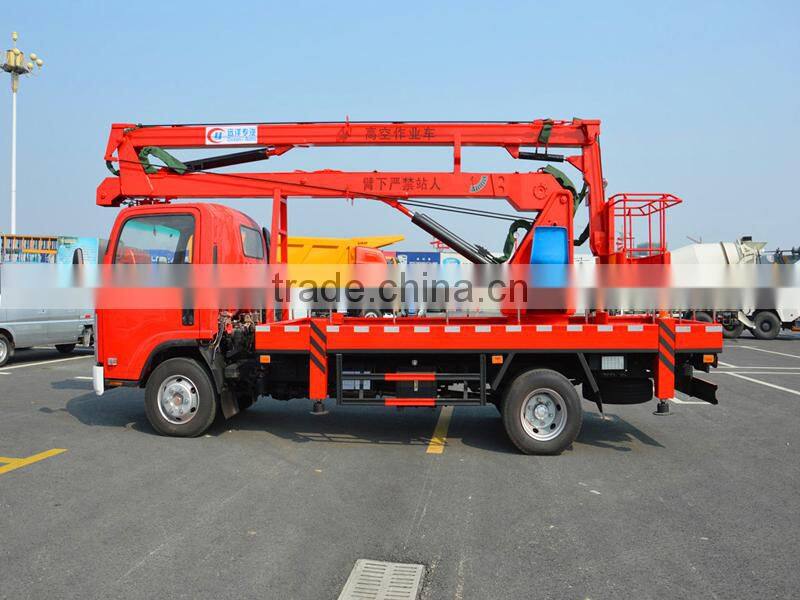

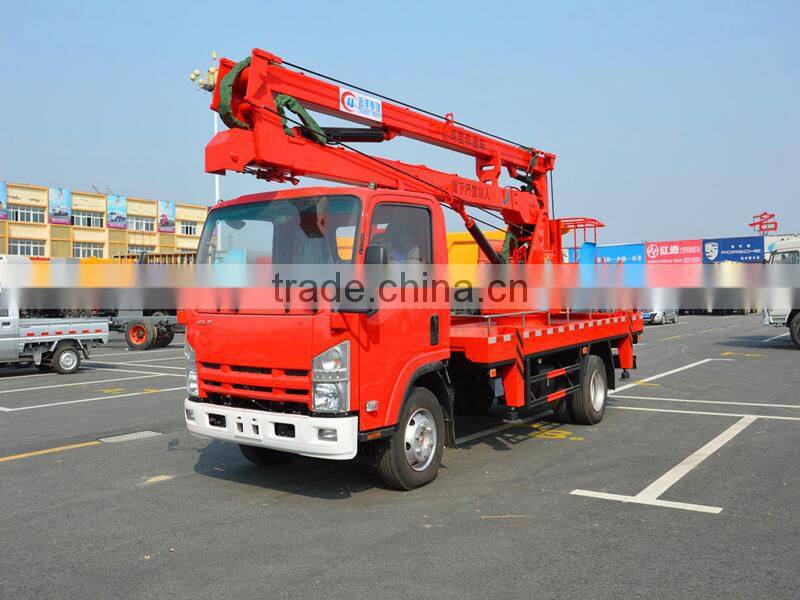

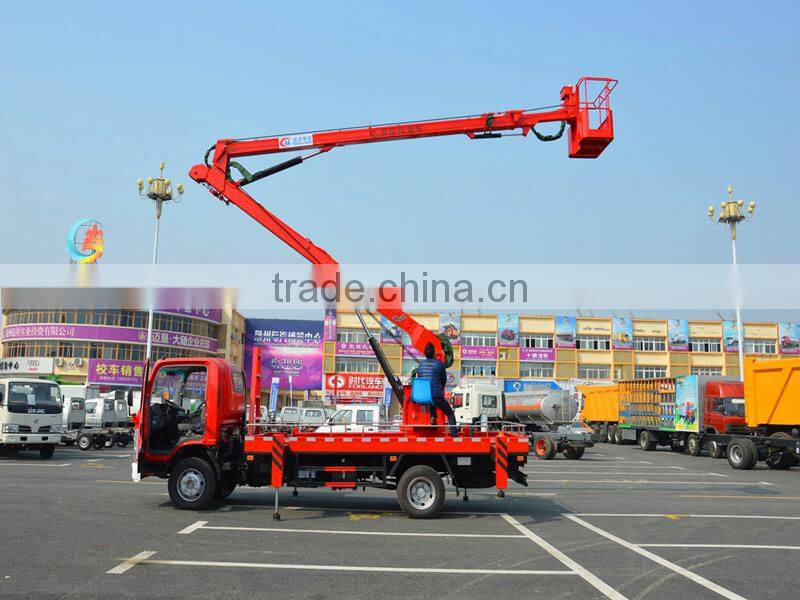

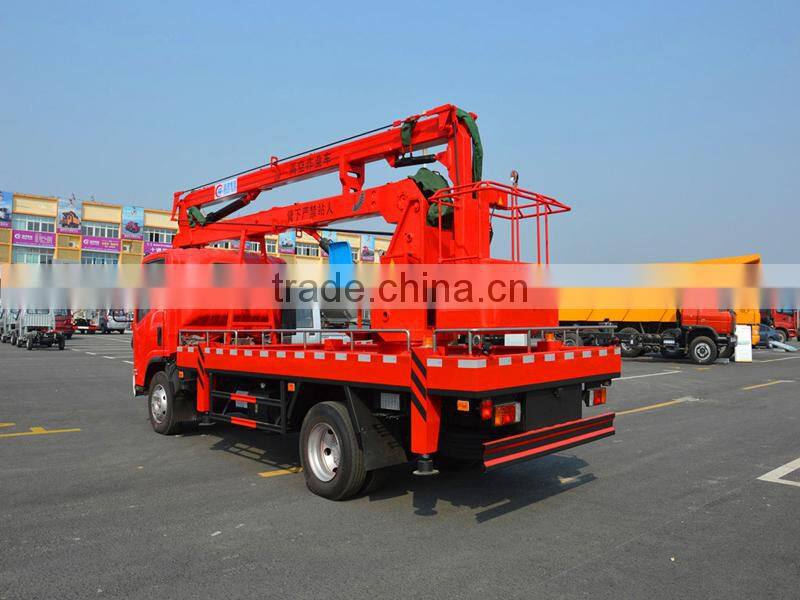

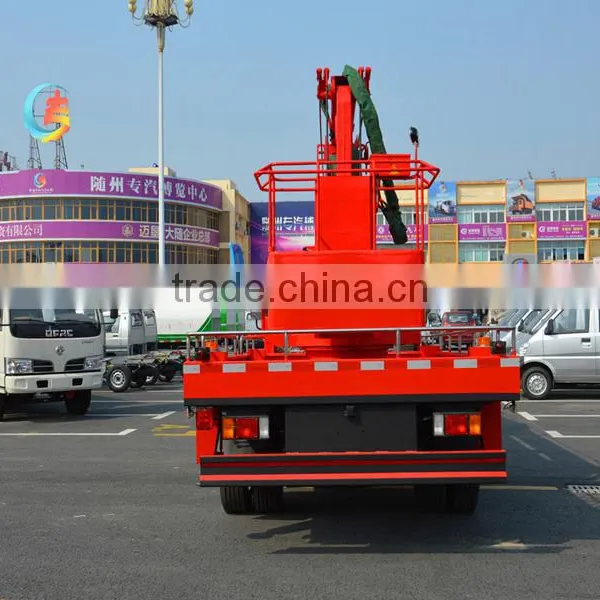

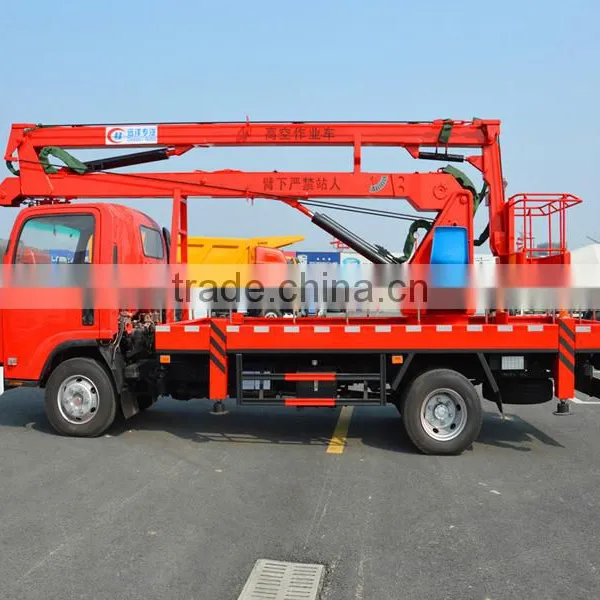

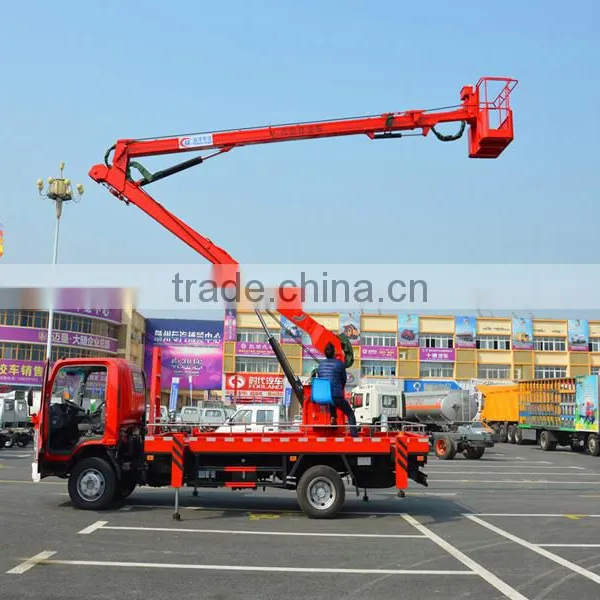

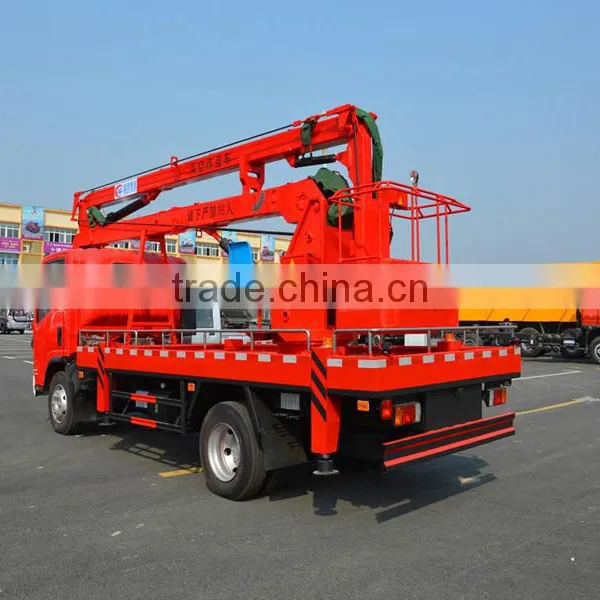

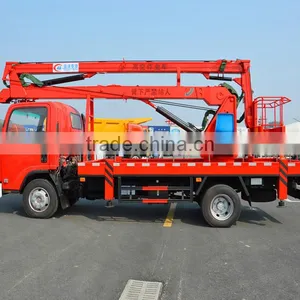

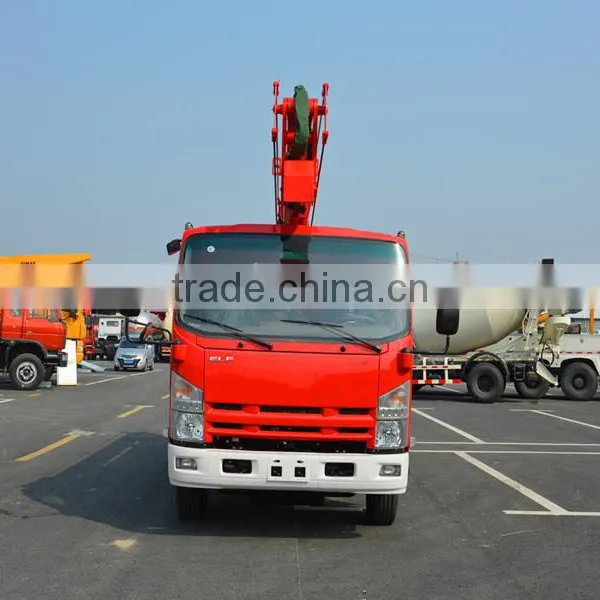

18 m Elevating Platform Truck / Japanese High-altitude Operation Truck

Product Description

High Altitude Operation Truck, mainly means the truck that could lift up and down the platform to operate by several hydraulic cylinder supported with the hydraulic system or electric system above the height of 3 meters.

The high operation truck with people loading is one of the advanced mechanic equipments. The worker work at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.

1.Technical Specification

Item		Unit	Specification
Product name			High-altitude truck
Chassis model			QL10909KARY
	Gross weight	kg	7450
	Curb weight		7255
	Overall dimension	mm	8315×2320×3500
	wheelbase		3815
	Approach/departure angle	°	21/11
Engine model			4HK1-TCG40
Engine manufacturer			Isuzu (chongqing) engine co., LTD
Transmission			MLD 6 gears
Cabin			Luxurious interior trim and seat, with power steering,air conditioning.
Emission standard			Euro IV
Displacement / Power		ml/kw	5193 / 139
Tire specification / Number		pcs	8.25-16 / 6
Max speed		km/h	95
Max working height		m	18
Rated platform load		kg	200
Rated manned platform		man	2
Slewing angle(Left,Right)		°	360
Outrigger type / Q’ty		pcs	H-type, 4 pcs
Remark		The whole truck is operated through upper and lower hydraulic operation, equipped with hook.

Product Overviews

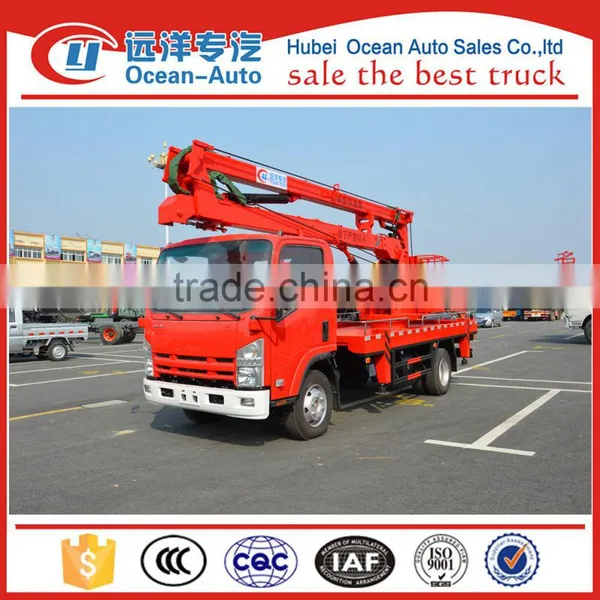

Various of Famous Brand Chassis for High-altitude Operation Truck

Packaging

(1) About the package of our trucks,usually it is nude that covered with wax. And it also can be packed as your need.

(2) About the shipping,there are many ways, such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.

Factory Overviews1

Contact Us

Hubei Ocean Special Automobile Co., Ltd.: Contact nameEmma ma; Phone86-722-3819709; AddressChengli automobile industrial park, South suburb ,Suizhou city, HuBei province , China Suizhou,Hubei
