JMC 4X2 16M high-altitude operation truck

FOB Price

USD $27,500 - $30,850 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Shanghai or any port of China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Transmission Type:	Manual	Condition:	New	Emission Standard:	Euro 4
Fuel Type:	Diesel	Dimensions (L x W x H) (mm):	7600X2000X3050MM	Place of Origin:	Hubei, China
Brand Name:	JMC	Model Number:	CSC5060JGKJ16

Product Description

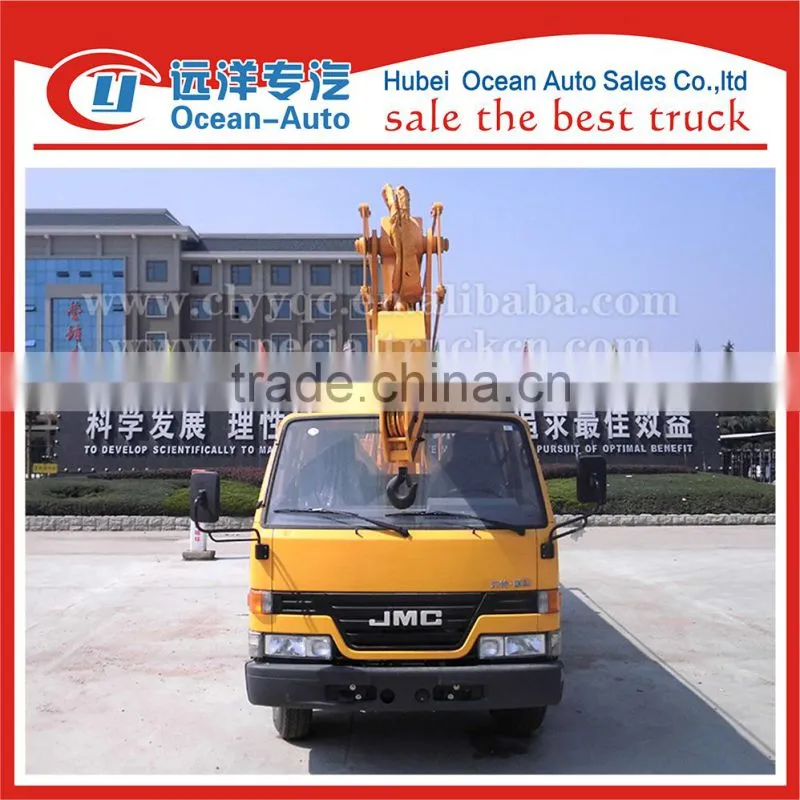

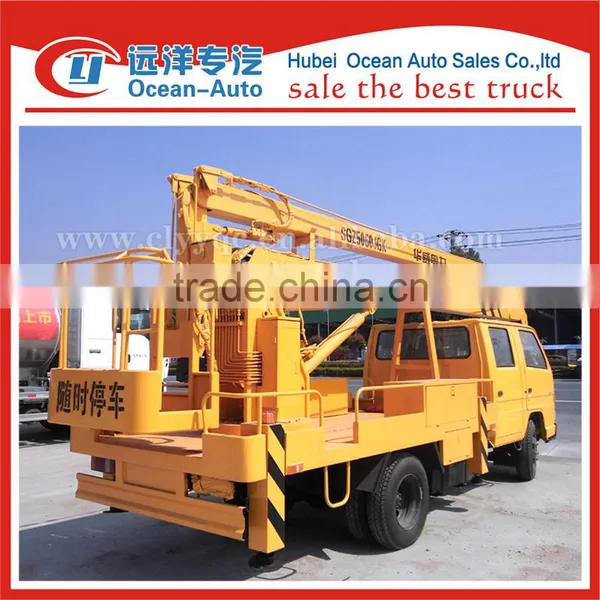

JMC 4X2 16M high-altitude operation truck

Product Description

High Altitude Operation Truck, mainly means the truck that could lift up and down the platform to operate by several hydraulic cylinder supported with the hydraulic system or electric system above the height of 3 meters.

The high operation truck with people loading is one of the advanced mechanic equipments. The worker work at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.

1.Technical Specification

Item		Unit	Specification
Product name			CSC5060JGKJ16 high-altitude truck
Chassis model			JX1060TSG24
	Gross weight	kg	5835
	Curb weight		5510
	Overall dimension	mm	7600×2000×3050
	wheelbase		3360
	Approach/departure angle	°	27/14
Engine model			JX493ZLQ4
Engine manufacturer			Jiangling Motors Corporation, Ltd
Transmission			5 gears
Cabin			Double cab, air conditioning can be equiped if customer requires.
Emission standard			Euro 4
Displacement / Power		ml/kw	2771 / 80
Tire specification / Number		pcs	7.00R16LT / 6
Max speed		km/h	90
Max working height		m	16
Rated platform load		kg	200
Rated manned platform		man	2
Slewing angle(Left,Right)		°	360
Outrigger type / Q’ty		pcs	H-type, 4 pcs
Remark		The whole truck is operated through upper and lower hydraulic operation, equipped with hook.

Product Overviews

Various of Famous Brand Chassis for Aerial Platform Working Trucks

Packaging

(1) About the package of our trucks,usually it is nude that covered with wax. And it also can be packed as your need.

(2) About the shipping,there are many ways, such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.

Factory Overviews1

Contact Us

Hubei Ocean Special Automobile Co., Ltd.: Contact nameEmma ma; Phone86-722-3819709; AddressChengli automobile industrial park, South suburb ,Suizhou city, HuBei province , China Suizhou,Hubei
