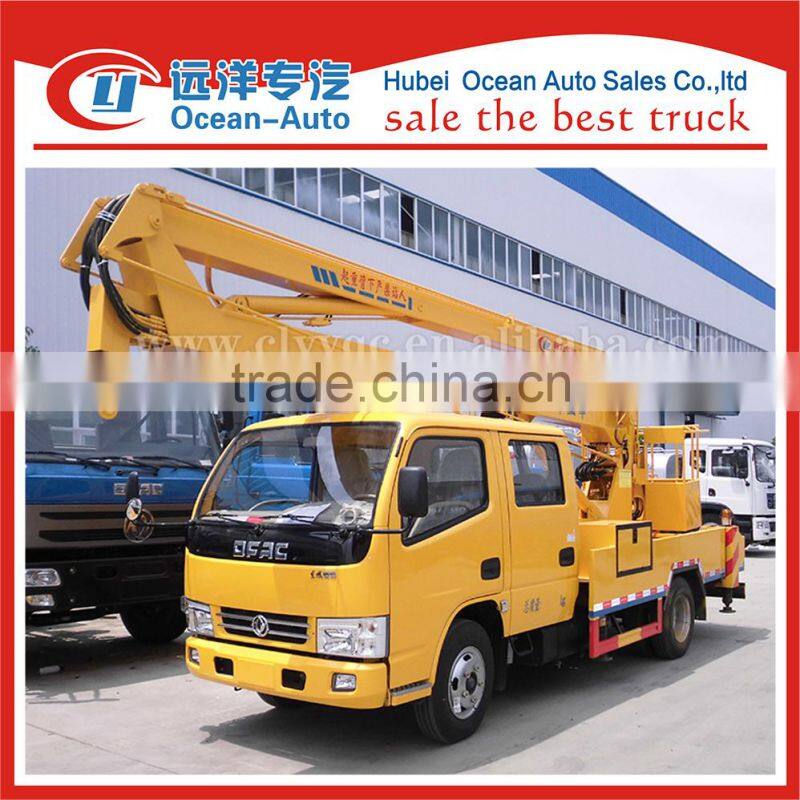

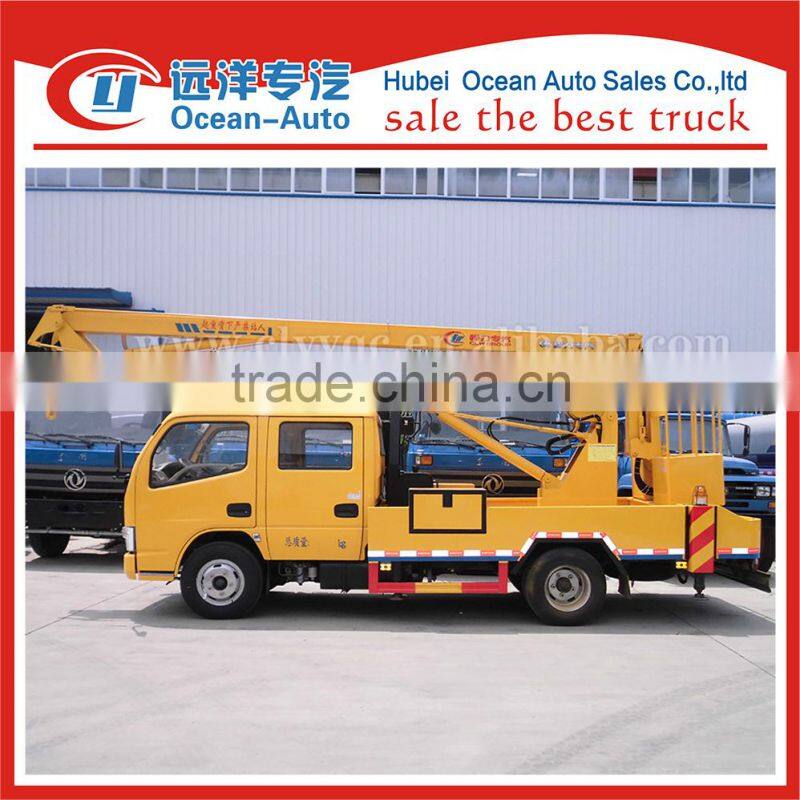

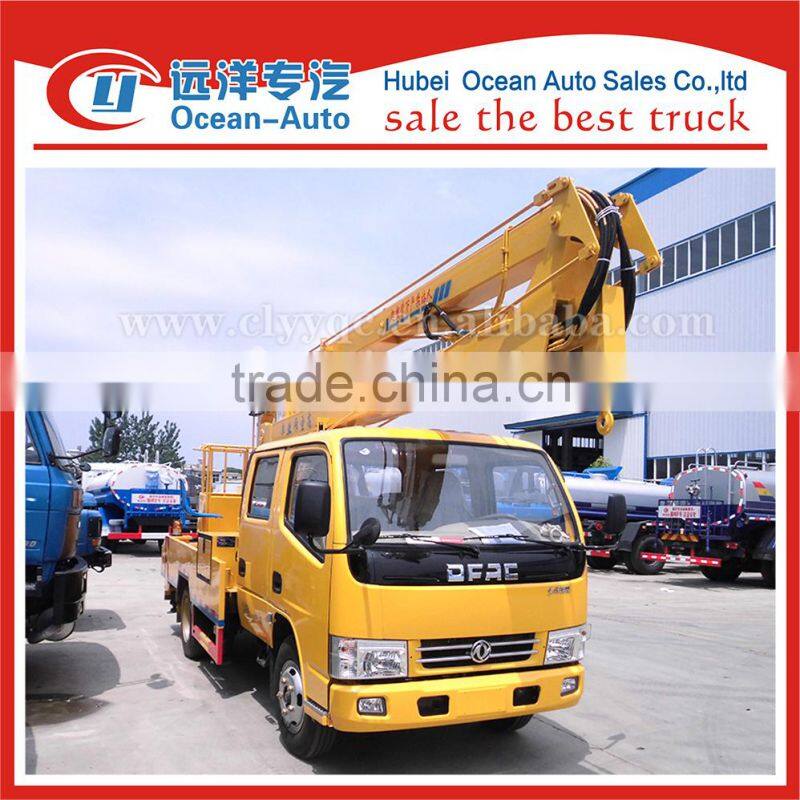

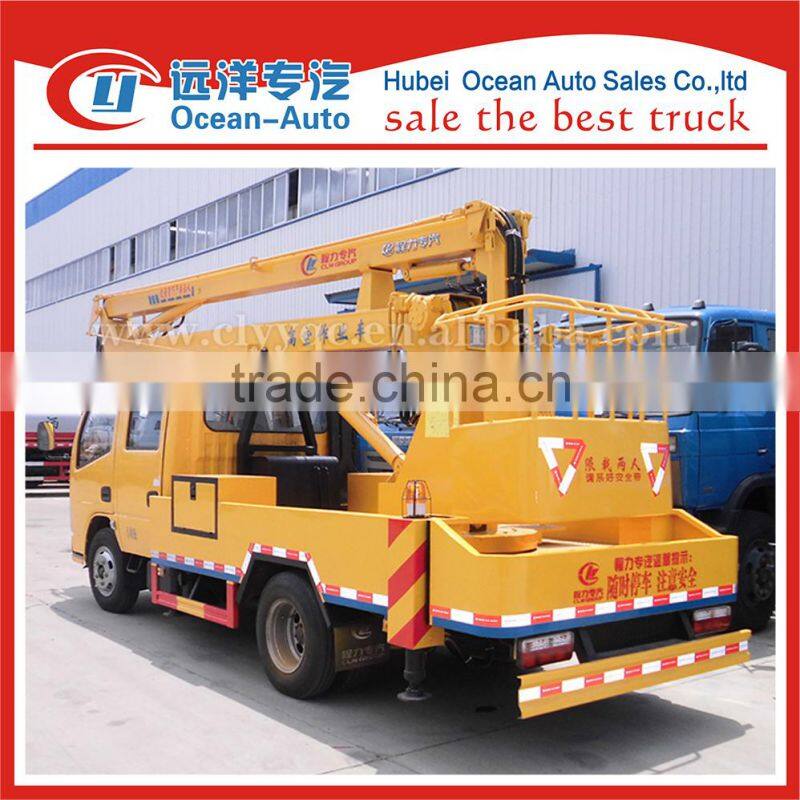

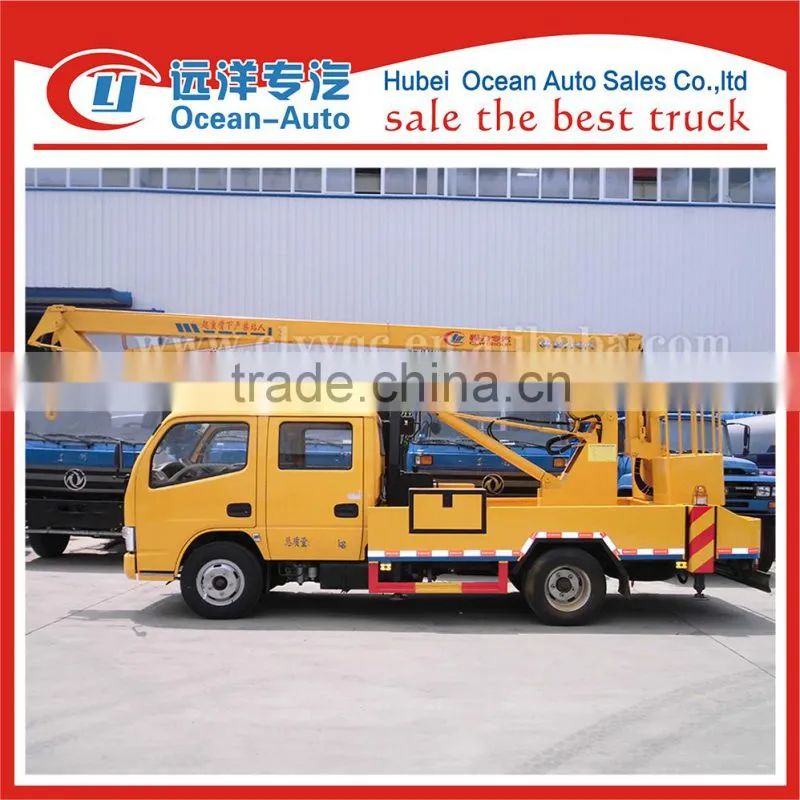

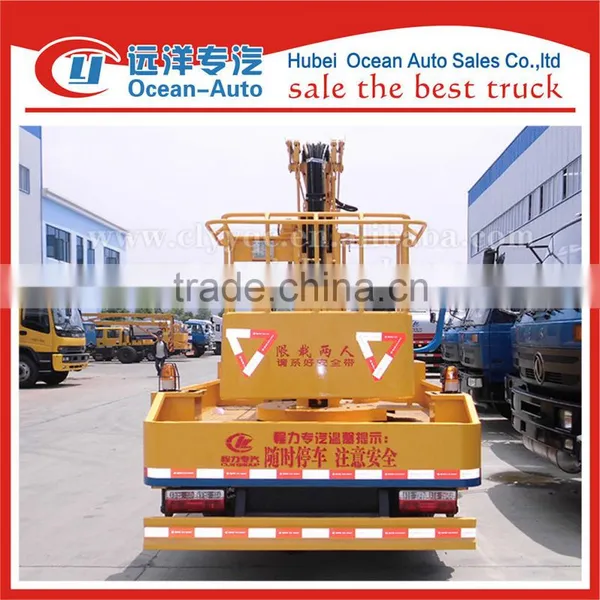

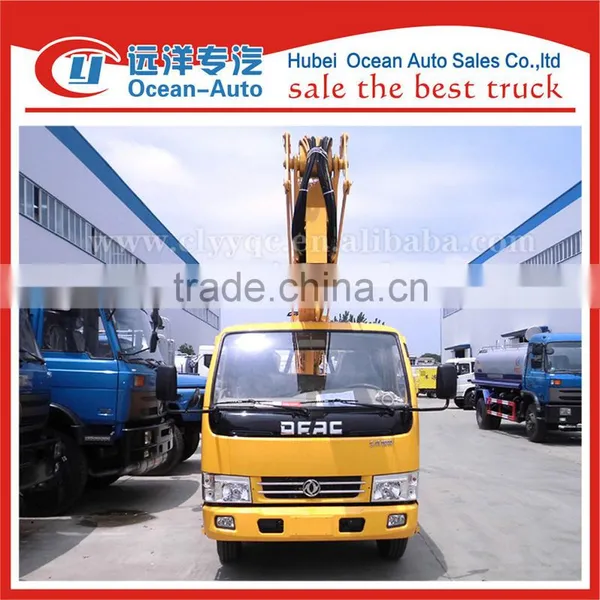

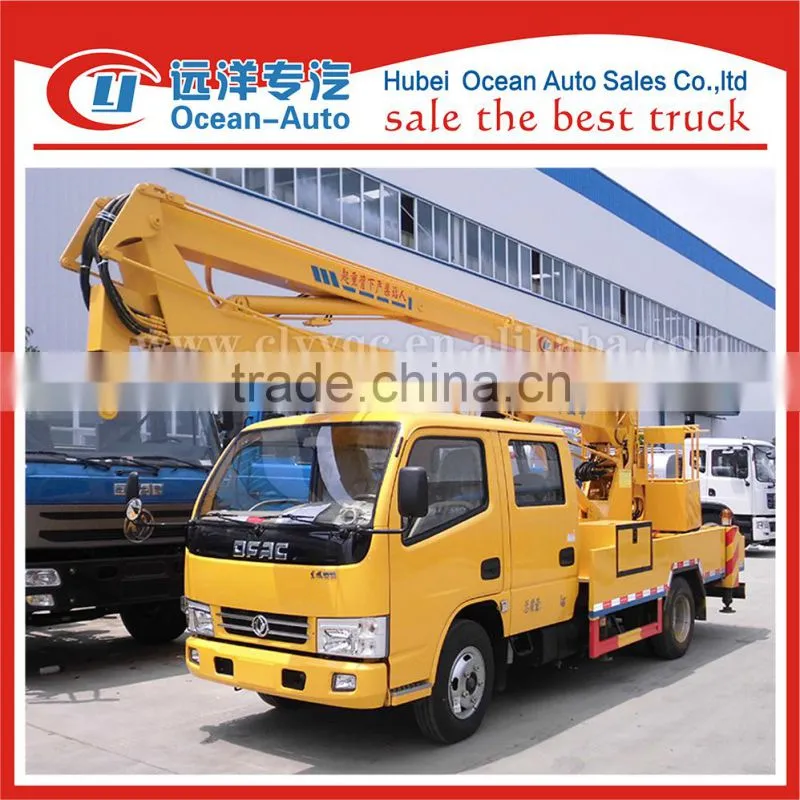

16m Dongfeng small chassis euro 3 high-altitude operation truck
High Altitude Operation Truck, mainly means the truck that could lift up and down the platform to operate by several hydraulic cylinder supported with the hydraulic system or electric system above the height of 3 meters.
The high operation truck with people loading is one of the advanced mechanic equipments. The worker work at some certain height with the help of the high altitude operation truck in proper condition and then it should be safe.
1.Technical Specification
aerial platform truck
Item | Unit | Specification | |
Product name |
| CSC5050JGK3 high-altitude truck | |
Chassis model |
| EQ1050NJ20D3 | |
| Gross weight | kg | 5375 |
Curb weight | 5050 | ||
Overall dimension | mm | 7350×1980×3100 | |
wheelbase | 3300 | ||
Approach/departure angle | ° | 19/15 | |
Engine model |
| CY4102-C3F | |
Engine manufacturer |
| Dongfeng Chaoyang Diesel Co.,Ltd | |
Transmission |
| 5 gears | |
Cabin |
| Double cab, air conditioning can be equiped if customer requires. | |
Emission standard |
| Euro III | |
Displacement / Power | ml/kw | 3856 / 70 | |
Tire specification / Number | pcs | 7.00-16 / 6 | |
Max speed | km/h | 95 | |
Max working height | m | 16 | |
Rated platform load | kg | 200 | |
Rated manned platform | man | 2 | |
Slewing angle(Left,Right) | ° | 360 | |
Outrigger type / Q’ty | pcs | H-type, 4 pcs | |
Remark | The whole truck is operated through upper and lower hydraulic operation, equipped with hook. | ||
Various of Famous Brand Chassis for High-altitude Operation Truck
1.About the package of our trucks,usually it is nude that covered with wax. And it also can be packed as your need.
2.About the shipping,there are many ways, such as Ro-Ro Ship / Bulk transport / Container packing / SKD / etc. And it can be offered according to your request.
Customer visite
For more information,please feel free to contact me! We will do our best to work with you to get the job done.
