RHD mini dump garbage truck
1.factory direct sale,best price
2.Certificate: ISO9001,3C.
3.new design, light weight, less oil consumption
4.Drive Mode:4*2
5.capacity: 4m3

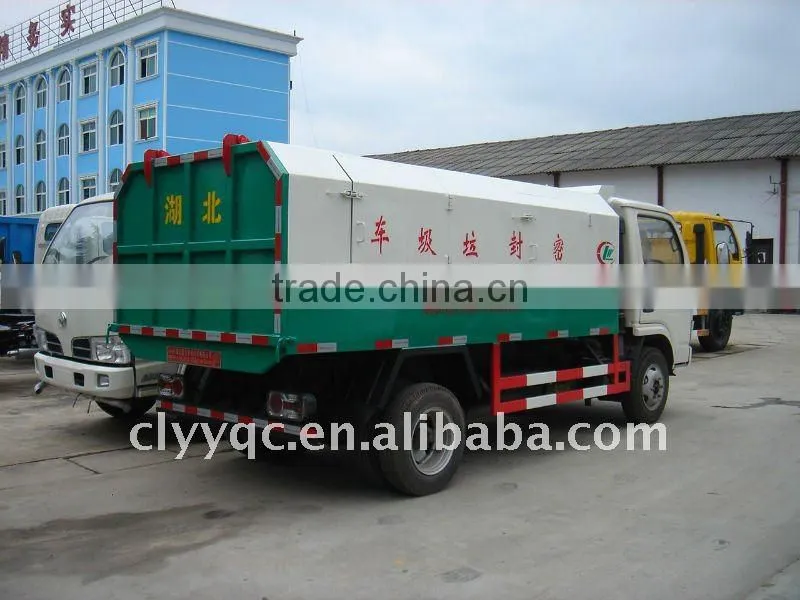

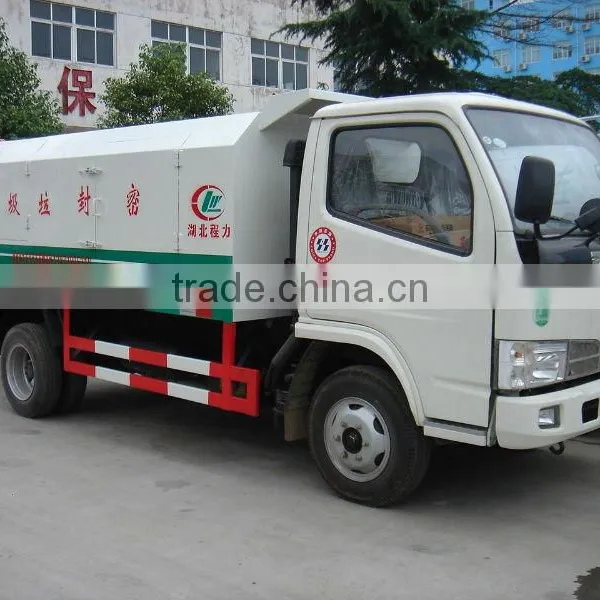

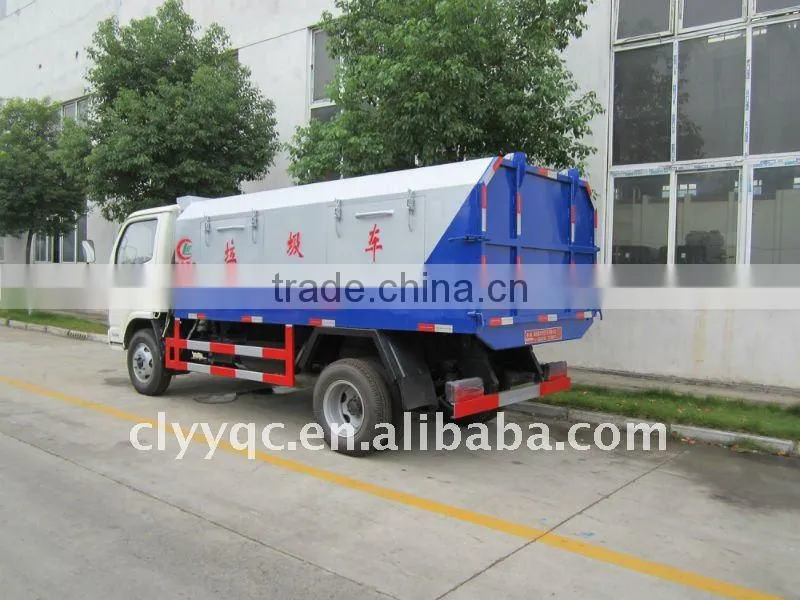

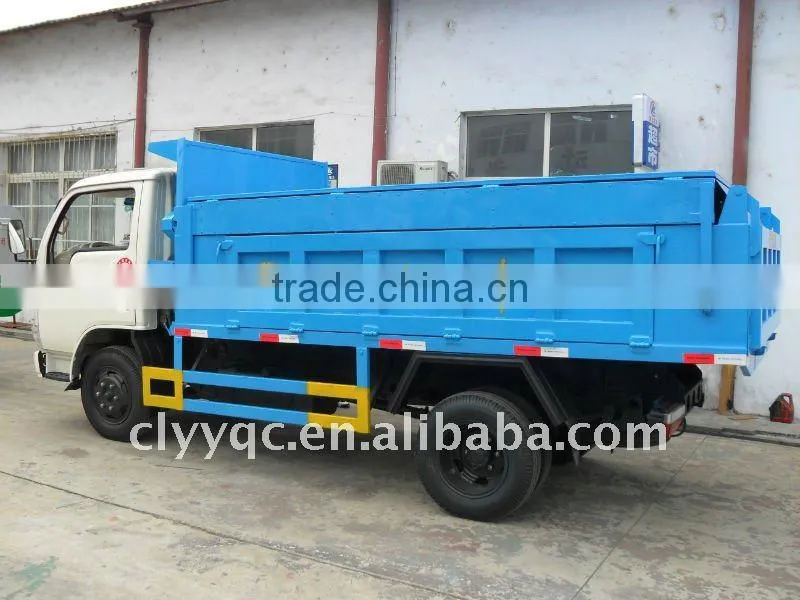

Product image:
mini dump garbage truck
mini dump garbage truck
mini dump garbage truck
Parameter list
Overall diemension(mm) |
5650×2000×2250 |
Gross weight(Kg) |
6495 |
Garbage box dimension(mm) |
3700×1850×1100 |
Rated loading capacity(Kg) |
2800,2865 |
Approach/departure angle(°) |
19/15 |
Curb weight(Kg) |
3500 |
Front/rear suspension(mm) |
1032/1318 |
Max speed(km/h) |
90 |
Chassis model |
EQ1060TJ20D3 |
Engine model |
CY4102-C3F |
Displacement |
3856cc |
Power |
70kw/95hp |
Fuel |
Diesel |
Emission standard |
Euro III |
Axle |
2 |
Tyre number |
6+1 |
Axle space(mm) |
3300 |
Tyre size |
7.00-16,6.50-16, 7.00R16,6.50R16 |
Axle load(kg) |
2550/3945 |
Front wheelbase(mm) |
1506 |
Leaf spring |
8/9+5,6/8+4 |
Rear wheelbase(mm) |
1466 |
Side wall thinckness (mm) |
3 |
Bottom thickness(mm) |
4 |
