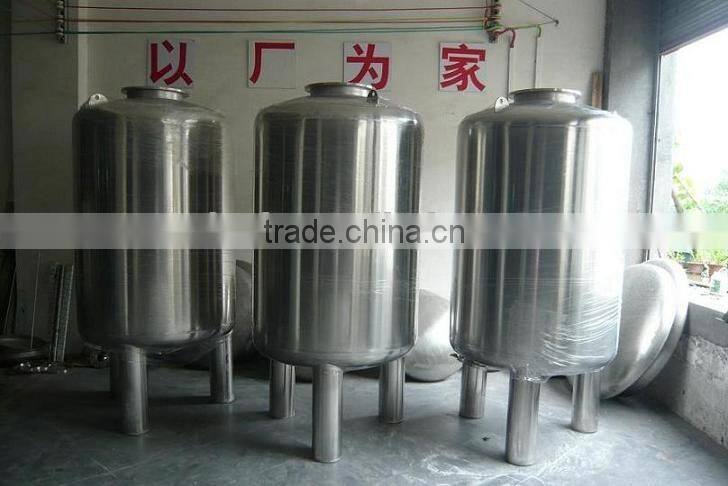

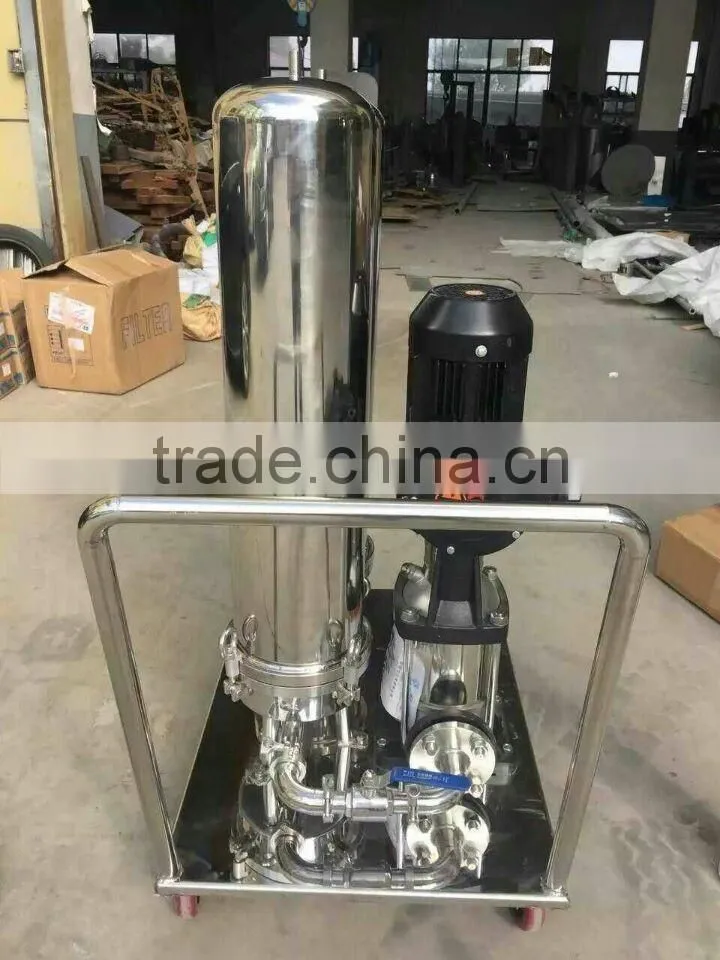

Stainless steel housing filter in water treatment

1.The description of the equipment

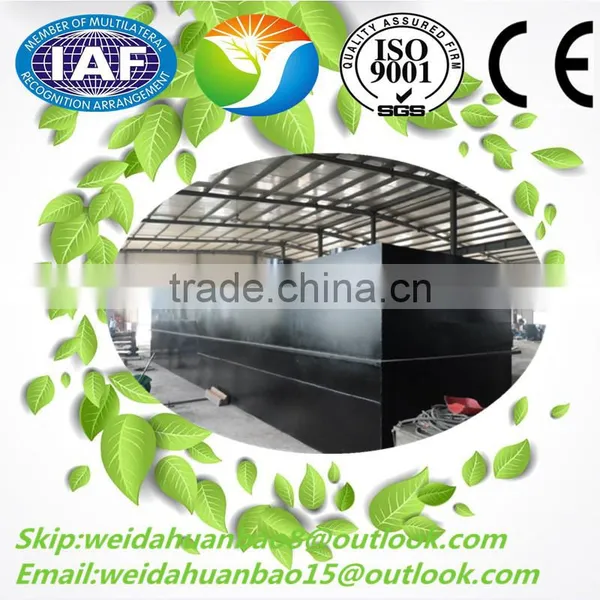

The device is an underground plant which adopts the advanced Biological technology and the company’s scientific research and engineering practice result, it can effectively remove BOD5,COD and NH3-N. The device is characterized by the stable performance, effective treatment, economical investment, automatic operation, convenience of maintenance and small occupying space. There is no need for plant construction, neither heating and heat preservation. The surface can be used as green land or square land.

As the most efficient sewage treatment device, it is widely used in treating the sewage in the area of senior hotels, villa districts and residential districts, etc. The water after treatment would meet the national emission standards.

2.Device configuration

Name: the new rural community sewage treatment equipment

Model: zl - xncws001

Sewage quantity: 1-10 (m3 / h)

Outlet pipe diameter: 150 (mm)

Inlet pipe diameter: 200 (mm)

Aerator power: 0.5-10 (kw)

Pump power: 1-3 (kw)

3.Equipment structure

 1. The equipment body according to water treatment for carbon steel structure commonly, anticorrosive epoxy asphalt;

2. The biochemical filler and support, suspended biological packing type and high efficiency;

3. The fan and pump components;

4. Piping system: PVC, stainless steel, carbon steel, on the basis of fluid properties;

5. Instrument and meter, liquid level gauge, pressure gauge;

6. Disinfection equipment;

7. Other spare parts.

4.Scope of application

1. The new rural communities, residential quarters, villages and towns;

2. Hotels, restaurants, nursing homes, hospitals, resorts;

3. The railway stations, airports, docks, ship, engineering camp;

4. The factories, mines, troops, attractions, scenic spots;

5. Like all kinds of industrial organic wastewater and sewage.

5.Product features

1. Our company adopts the integrated design, save a space, the layout is compact, can be buried in the ground, the surface can be used as green or other land, saves the land, and no impact on the surrounding environment.

2. Push streaming biological contact oxidation, treatment effect is better than that of completely mixed or secondary series hybrid biological contact oxidation pool completely. Adaptability to water quality, strong resistance to impact load performance is good, stable discharging water, no sludge bulking.

3. The pool with new elastic solid packing, specific surface area is large, microbial easy hanging membrane, membrane, under the condition of same organic load, high removal rate of organic matter, can increase the oxygen in air solubility in water. Biochemical pool using the biological contact oxidation method, the packing is lower, the volume of the load itself in the microbial oxidation phase, less sludge production, easy to dredge.

4. The deodorization methods can be used air exhaust, or odor treatment unit, a simple and reliable.

5. Integrated automatic electrical control systems and equipment fault alarm system, safe and reliable running, without personal care operation maintenance cost is low.

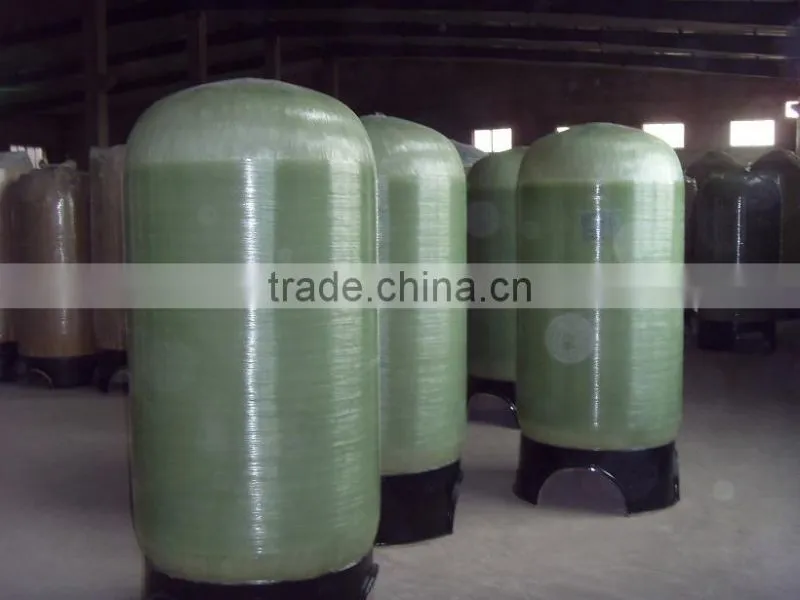

6. Use glass reinforced plastics, stainless steel, carbon steel anticorrosion structure, which have excellent properties such as corrosion resistance, anti-aging, the service life of 20 years.

Warranty:Equipment warranty period of one year

Within a year if the equipment fails, Seller will be responsible for maintenance for free. Please ensure that buyer operate in strict accordance with operating instructions, because of illegal operations lead to equipment failure, not part of seller responsibility. Seller provide free lifetime technical support and services(Respond within 48 hours)

After-sale Service

We provide after-sale telephone return,online technical support and train qualified on-site maintenance engineers for customers.

For each set of equipment,we will:

• Provide common spare parts for one year for the new equipment, after one-year guarantee,we offer spare parts with  preferential price.

• Provide lifelong network technical support.

 We also accept your special requirements to make self-design for you. And the painted color can also designated by customers.

We look forward to your any request!
