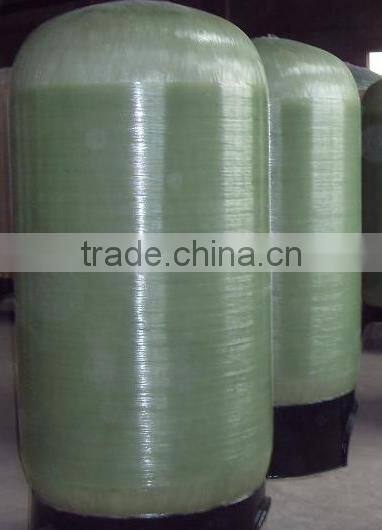

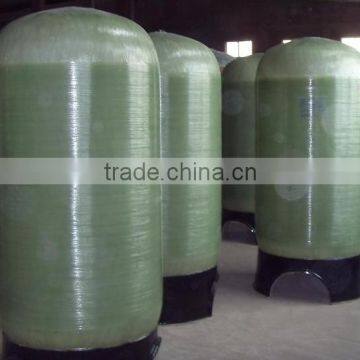

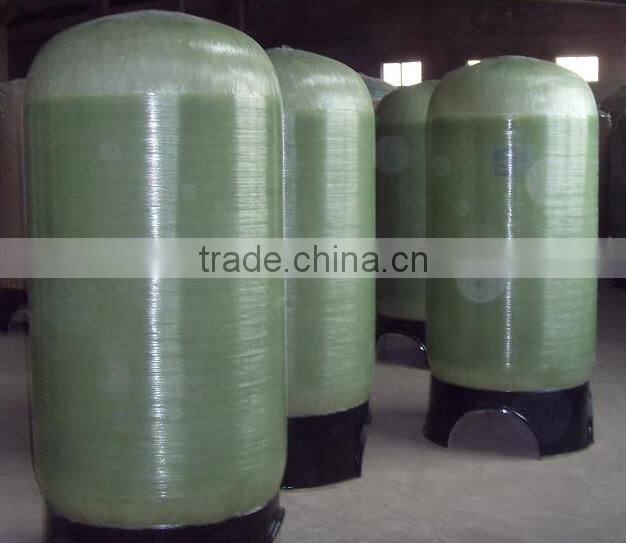

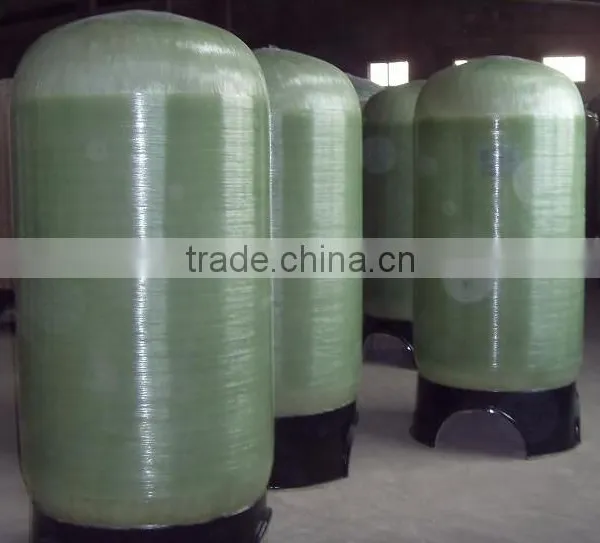

HY FRP tank/FRP vessel/pressure tank

1.Winding with the crashworthy foam
2.Packed with the double deck carton
3.Using the pallet for the flange tanks

                                                       FRP tank/FRP vessel/pressure tank

  Diameter dimension: From 8 "to 83 " inch (205mm to 2100mm);

 Specification: A)Material:

(a). inner shell – Polyethylene (PE) seamless one-piece tank liner

(b). Outer shell – Continuous strands of fiber-glass with high strength epoxy resin

(c). Bottom base – FRP reinforced tripod base

(d). Opening – 2.5" & 4" precision injected model with threaded opening for 8 " to 36" diameter tanks

(e). Opening – 6 "Aluminum flange (anti-corrosion coating) opening for 36” to 63” diameter tanks

 Warranty: 1 year , All feed water and waste water treatment application, included multi-media filter and softener.

Application:

All feed water and waste water treatment application, included multi-media filter and softener.

1. Who are we ?

Wade is the Chinese supplier with more than 10 years water treatment service and experiences.Our long term customers are from all over the world,such as Europe and South East Asia.We have remained unwavering in its commitment to quality.

2.Fiberglass Reinforced Plastic Tank Specification

1.Shell Layer:Fiber glass

2 Liner material:PE or FRP

3,Max pressure:150psi

4 Temperature Range:1-50°C

5.Max Vacuum:5'' HG

Base of FRP Vessel:

6"-16": 2.5" 8-NPSM Top Standard Base.

16"-36": 4" 8-UN Top Opening Standard Base.

14"-36": 4" 8-UN Top & Bottom Tripod Base.

30"-63": 6" Flange Top & Bottom Tripod Base.

Commercial and industrial pressure tanks,size 14" to 63": 5 year limited warranty.

Application:

1.Water softener system.

2.Multi Media Filters.

3.Carbon Filters.

4.Water Filtration for Hotels, Spas, Resorts.

5.Pretreatment to Reverse Osmosis (RO) Membrane Systems for removal of oxidants.

6.Pretreatment to Ion Exchange Systems.

Trading informations:

Trade Terms: FOB Tianjin, CIF xx, EXW Beijing;

Payment Terms: T/T, Western Union, PayPal, Escrow, MoneyGram;

Payment Condition: 30% deposit in advance, 70% balance before shipment.

Delivery:Time:5-7 working days after deposit;

Packing: Neutral Carton box.

Shipping: By sea, by air and by express.
