Wide cab
Five-segment U section boom
Single cylinder luffing and double-winch
Manual mechanical control
Spacious and luxury streamline cab
U boom system
Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.
Compact boom head
Extend the jib length, which can extend the working radius to the most.
Hydraulic pipeline
The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.
Operating cab
It has large space and wide views. The control levers and instrument buttons are at hand.
Torque limiter
The colorful LCD display of the torque limiter can shows all the important operating information.
Engine
Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.

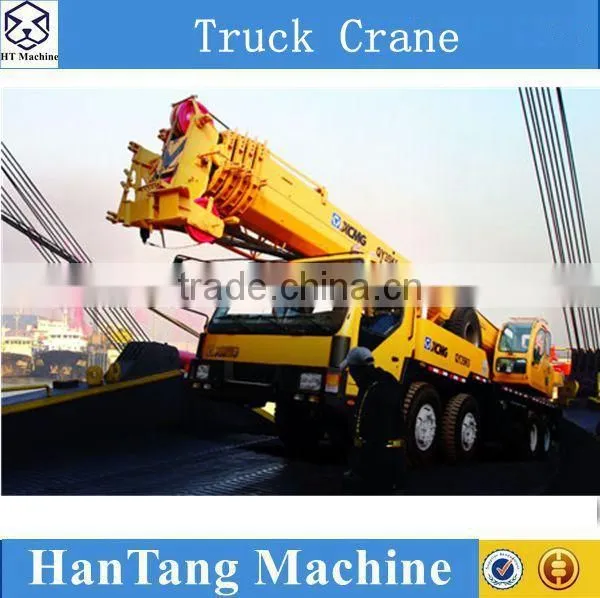

Truck crane QY35K5 | ||
Dimensions | Overall length | 12620mm |
Overall width | 2500mm | |
Overall height | 3350mm | |
Weight | Dead weight in travel state | 36930kg |
Front axle load | 12330kg | |
Rear axle load | 24600kg | |
Power | Engine model | SC9DK320Q3 |
Engine rated power | 235/2200 Kw(r/min) | |
Engine rated torque | 1250/1400 N.m(r/min) | |
Travel | Max.travel speed | 75 Km/h |
Min. turning diameter | 19.5m | |
Min. ground clearance | 260mm | |
Approach angle | 17 | |
Departure angle | 15.7 | |
Max. Grade ability | 40% | |
Fuel consumption of per 100km | 30L | |
Lifting performance | Max. total rated lifting load | 35T |
Min. rated working radius | 3000mm | |
Max.lifting torque | 1200kn.m | |
Turning radius at turn table tail | 3.055m | |
Base boom | 10.5m | |
Full-extend boom | 39.6m | |
Full-extend boom+Jib | 54.6m | |
Outrigger longitudinal distance span | 5.35m | |
Outrigger lateral distance span | 6m | |
Working speed | Boom elevating time | 68s |
Boom full extension time | 155s | |
Max. slewing speed | 2.5 r/min | |
Main winch max. speed(single line) | 130m/min | |
Auxiliary winch max.speed(single line) | 130m/min | |
Payment Terms: T/T 30% in advance, and the balance by T/T after leaving the factory..
Delivery time: within 30 days after receiving the deposit.
1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1200 working hours, whichever comes first.
2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.
3. Provide the parts free of charge in the guaranty time if the parts cannot work well.
4. Excess the guaranty; you can easily to buy from us with cost price anytime.
