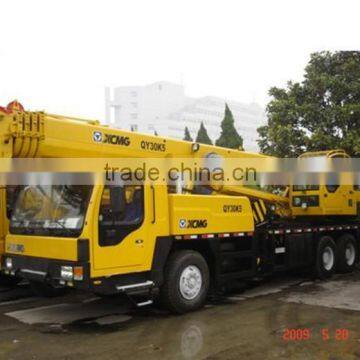

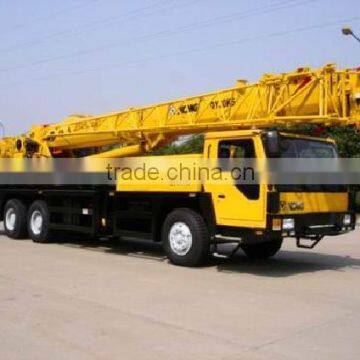

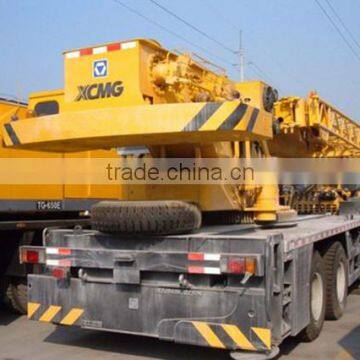

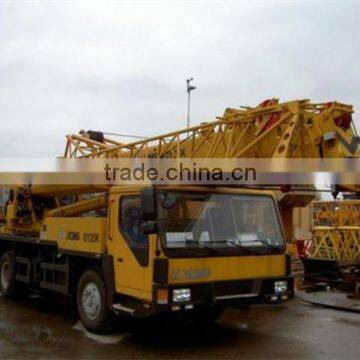

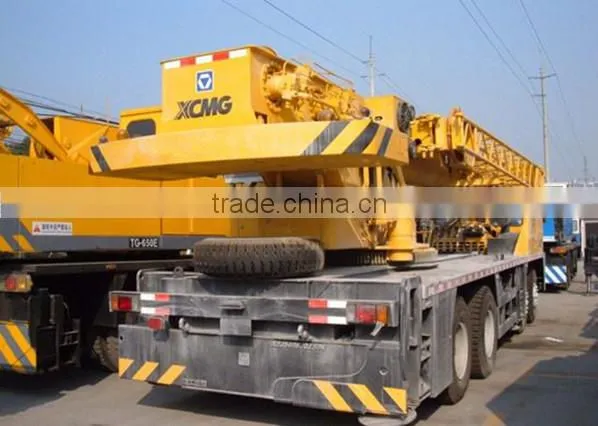

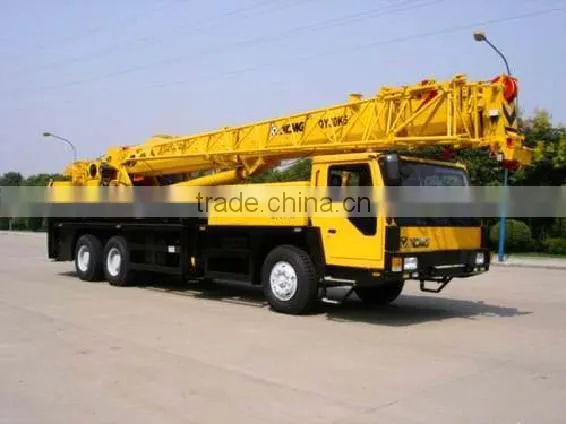

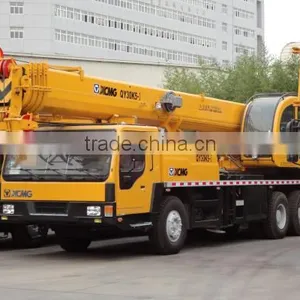

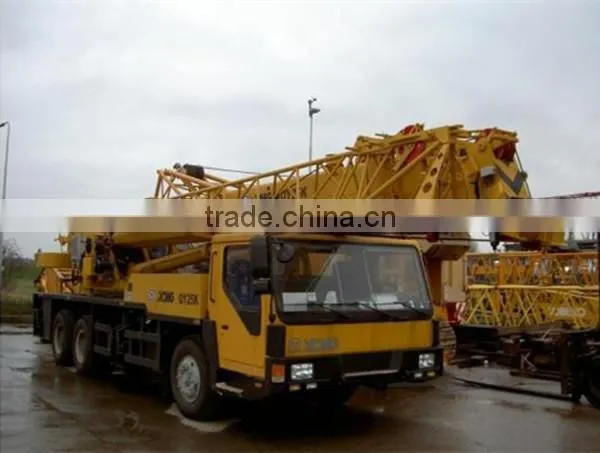

Truck crane QY30K-I XCMG 30T

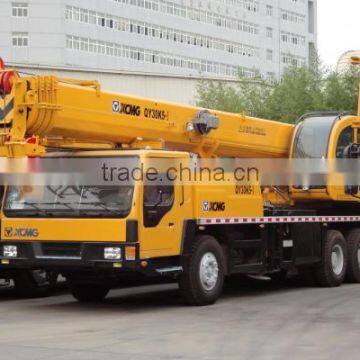

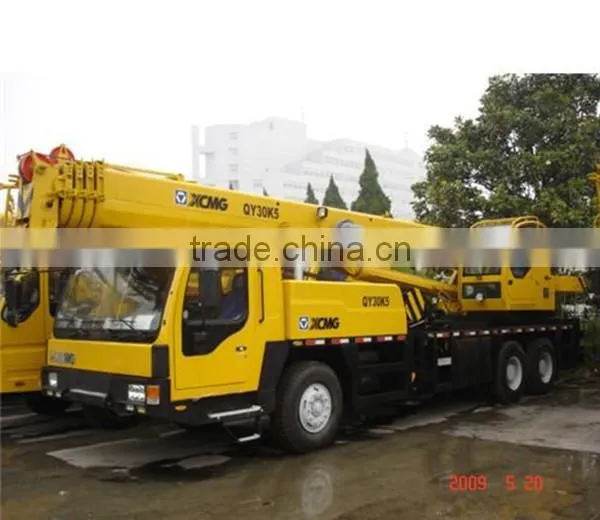

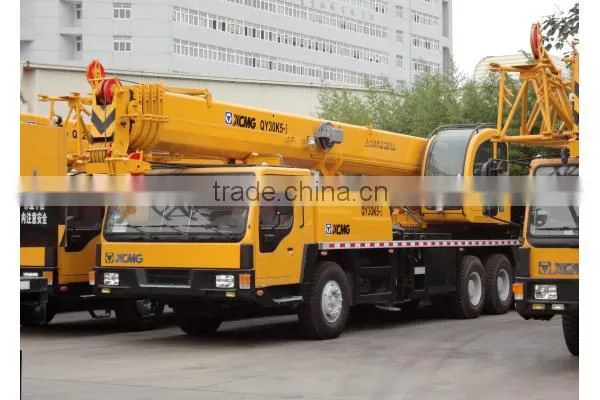

Truck crane QY30K5-I | ||
Dimensions | Overall length | 12570mm |
Overall width | 2500mm | |
Overall height | 3390mm | |
Weight | Dead weight in travel state | 32400kg |
Front axle load | 7000kg | |
Rear axle load | 25400kg | |
Power | Engine model | SC8DK280Q3 WD615.329 |
Engine rated power | 206/2200 213/2200Kw(r/min) | |
Engine rated torque | 1112/1400 1160/1400 N.m(r/min) | |
Travel | Max.travel speed | 80 Km/h |
Min. turning diameter | 22m | |
Min. ground clearance | 291mm | |
Approach angle | 19 | |
Departure angle | 13 | |
Max. Grade ability | 40% | |
Fuel consumption of per 100km | 40L | |
Lifting performance | Max. total rated lifting load | 30T |
Min. rated working radius | 3000mm | |
Max.lifting torque | 1025kn.m | |
Turning radius at turn table tail | 3.065m | |
Base boom | 10.6m | |
Full-extend boom | 40.4m | |
Full-extend boom+Jib | 48.7m | |
Outrigger longitudinal distance span | 5.85m | |
Outrigger lateral distance span | 6m | |
Working speed | Boom elevating time | 68s |
Boom full extension time | 150s | |
Max. slewing speed | 2.5 r/min | |
Main winch max. speed(single line) | 130m/min | |
Auxiliary winch max.speed(single line) | 130m/min | |
Truck crane QY30K-I
1.The torque limiter adopts colorful LCD display.
2.Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
3.The humanity design makes the cab and control cab more spacious.
4.Six unique manufacturing technologies ensure the high quality.
5.Extend the lifting space and scope, improving the lifting capacity of the front part.
XCMG 30T Truck Crane
Pre-sale services:According to your need, we will provide product selection for your reference.
Sale Service:For your timely feedback to track the progress of the production.
Within 24 hours to respond to your consultation vehicle use and maintenance problems, and regular visits to your usage, provide product maintenance guide.
1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading)
or 1200 working hours, whichever comes first.
2. Provide maintenance instruction, parts list, packing list,
accessories and tools free of charge when send the machine to you.
3. Provide the parts free of charge in the guaranty time if the parts cannot work well.
4. Excess the guaranty; you can easily to buy from us with cost price anytime.
Payment Terms: T/T 30% in advance, and the balance by T/T after leaving the factory..
Delivery time: within 30 days after receiving the deposit.
1.What type of shipping for our company?

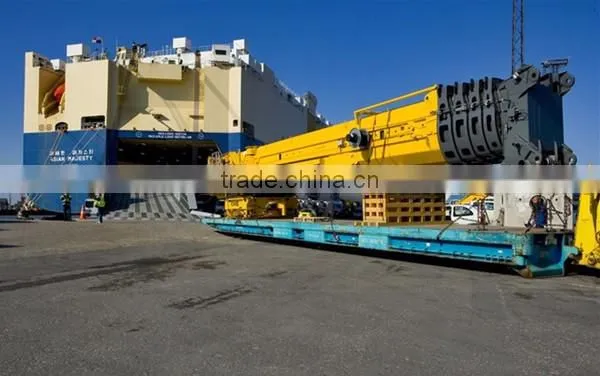

We usually adopt ocean shipping type for most countries.
2.What is the minimum quantity for your company?
Min.Order Quantity:1 unit ;
3.What time is the shipment date of your company?
Our shipping date is usually 30days after receiving deposit.
Hantang Machine is engaged in manufacturing and exporting kinds of construction machines.
Such as wheel loader, truck crane, crawler crane, bulldozer, excavator, forklift,
concrete pump truck,dump truck, tractor, trailer, etc.
Great Service is our Mission. We always take client's dement as our No.1 supply.
With more than 9 years construction machine experience,
Hantang Machine staff team can supply client any high quality products and quality service.
