• The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
• The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
• Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
• Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
• The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
• The humanity design makes the cab and control cab more spacious, and easy to operate.
• Six unique manufacturing technologies ensure the high quality.

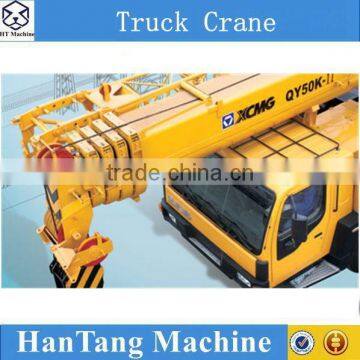

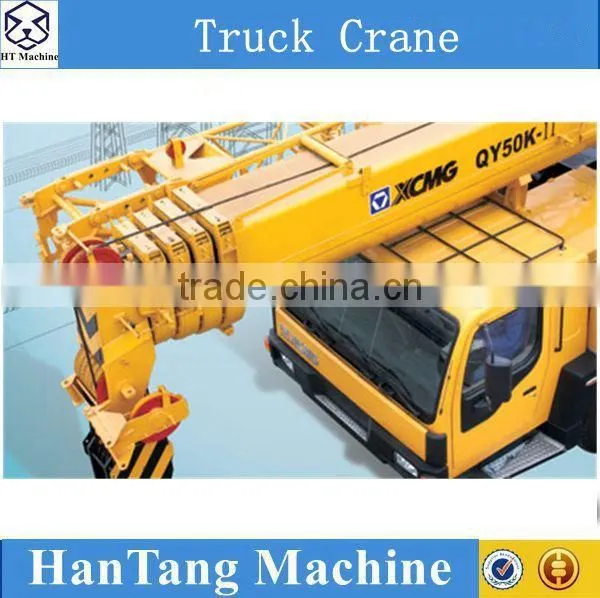

Truck crane QY50K-II | ||
Dimensions | Overall length | 13750mm |
Overall width | 2800mm | |
Overall height | 3520mm | |
Weight | Dead weight in travel state | 41000kg |
Front axle load | 15000kg | |
Rear axle load | 26000kg | |
Power | Engine model | WD615.334 |
Engine rated power | 247/2200 Kw(r/min) | |
Engine rated torque | 1350/1400 N.m(r/min) | |
Travel | Max.travel speed | 80Km/h |
Min. turning diameter | 24m | |
Min. ground clearance | 291mm | |
Approach angle | 17 | |
Departure angle | 11 | |
Max. Grade ability | 40% | |
Fuel consumption of per 100km | 45L | |
Lifting performance | Max. total rated lifting load | 50T |
Min. rated working radius | 3000mm | |
Max.lifting torque | 1764kn.m | |
Turning radius at turn table tail | 3482mm | |
Base boom | 11.3m | |
Full-extend boom | 42.7m | |
Full-extend boom+Jib | 57.7m | |
Outrigger longitudinal distance span | 5.91m | |
Outrigger lateral distance span | 6.9m | |
Working speed | Boom elevating time | 88s |
Boom full extension time | 180s | |
Max. slewing speed | 2 r/min | |
Main winch max. speed(single line) | 110m/min | |
Auxiliary winch max.speed(single line) | 110m/min | |
Payment Terms: T/T 30% in advance, and the balance by T/T after leaving the factory..
Delivery time: within 30 days after receiving the deposit.
1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1200 working hours, whichever comes first.
2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.
3. Provide the parts free of charge in the guaranty time if the parts cannot work well.
4. Excess the guaranty; you can easily to buy from us with cost price anytime.
