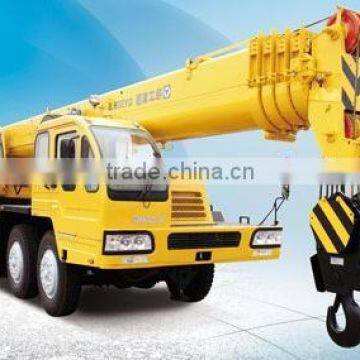

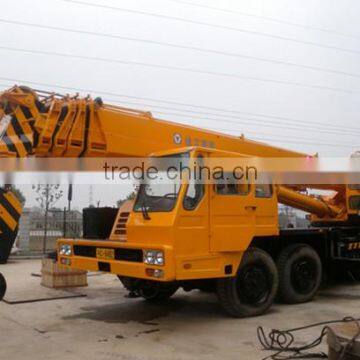

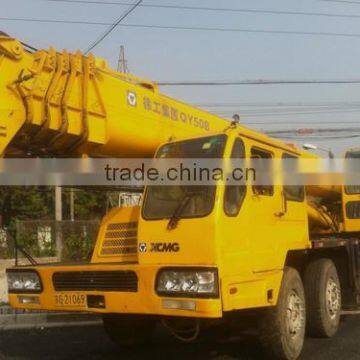

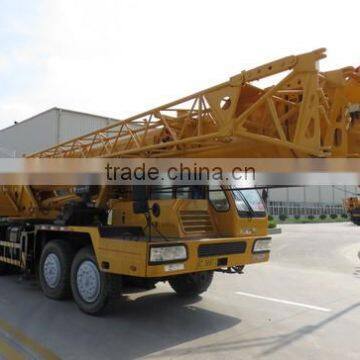

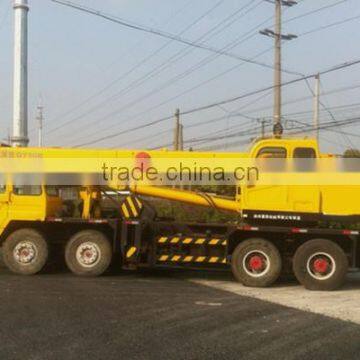

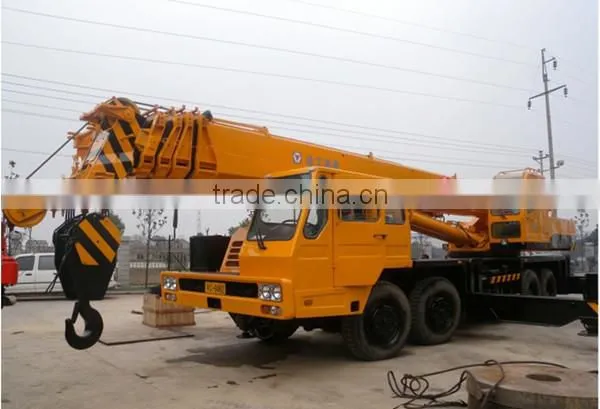

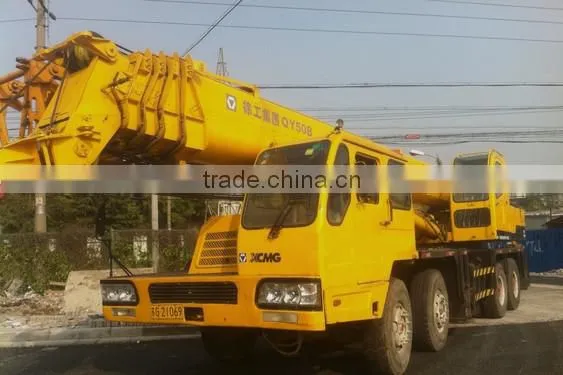

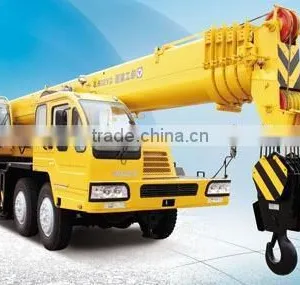

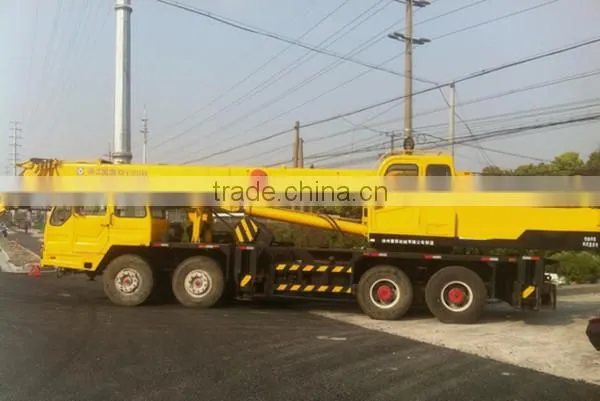

Truck Crane XCMG QY50B 50T China
Truck crane QY50B.5 | ||
Dimensions |
Overall length |
13890mm |
|
Overall width |
2800mm |
|
Overall height |
3440mm |
Weight |
Dead weight in travel state |
42000kg |
|
Front axle load |
18000kg |
|
Rear axle load |
26000kg |
Power |
Engine model |
WD615.338 |
|
Engine rated power |
247/2200 Kw(r/min) |
|
Engine rated torque |
1350/1400 N.m(r/min) |
Travel |
Max.travel speed |
80Km/h |
|
Min. turning diameter |
24m |
|
Min. ground clearance |
327mm |
|
Approach angle |
18 |
|
Departure angle |
11 |
|
Max. Grade ability |
35% |
|
Fuel consumption of per 100km |
40L |
Lifting performance |
Max. total rated lifting load |
50T |
|
Min. rated working radius |
3000mm |
|
Max.lifting torque |
1800kn.m |
|
Turning radius at turn table tail |
3710mm |
|
Base boom |
11.56m |
|
Full-extend boom |
42.58m |
|
Full-extend boom+Jib |
55.8m |
|
Outrigger longitudinal distance span |
5.93m |
|
Outrigger lateral distance span |
6.9m |
Working speed |
Boom elevating time |
88s |
|
Boom full extension time |
180s |
|
Max. slewing speed |
2 r/min |
|
Main winch max. speed(single line) |
110m/min |
|
Auxiliary winch max.speed(single line) |
110m/min |

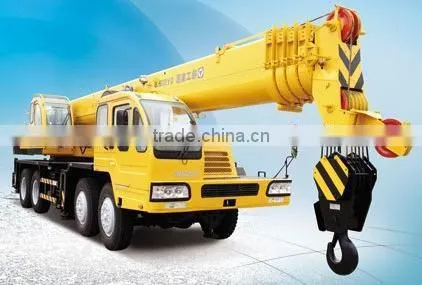

Truck Crane XCMG QY50B 50T China
1. The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable.
2. Optimize the stress design. Adopt the box-type outriggers which have larger span.
3. Adopt the classic K series jib telescoping technique, working safer and more reliable.

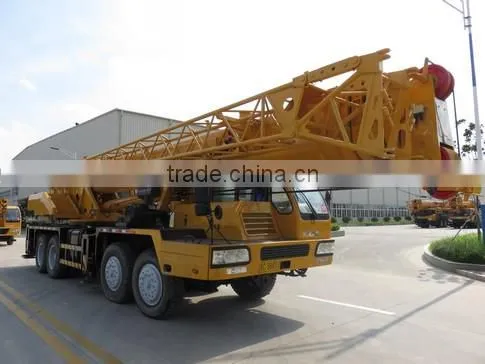

Truck Crane QY50B China
Payment Terms: T/T 30% in advance, and the balance by T/T after leaving the factory..
Delivery time: within 30 days after receiving the deposit.
XCMG Truck Crane
Pre-sale services:According to your need, we will provide product selection for your reference.
Sale-Service:For your timely feedback to track the progress of the production.
1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1200 working hours, whichever comes first.
2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.
3. Provide the parts free of charge in the guaranty time if the parts cannot work well.
4. Excess the guaranty; you can easily to buy from us with cost price anytime.
Hantang Machine is engaged in manufacturing and exporting kinds of construction machines.
Such as wheel loader, truck crane, crawler crane, bulldozer, excavator, forklift,
concrete pump truck,dump truck, tractor, trailer, etc.
Great Service is our Mission. We always take client's dement as our No.1 supply.
With more than 9 years construction machine experience,
Hantang Machine staff team can supply client any high quality products and quality service.
1.What are your payment terms and trade terms?
Payment terms:T/T,L/C,Trade terms: FOB/CIF
2.What dose your factory do regarding quality control?
Quality is priority!our factory strictly implements ISO9001 quality control system.
3. Did your side accept that we put our own logo on your machine?
We can do the OEM according to customers request. Customized design is acceptable.
