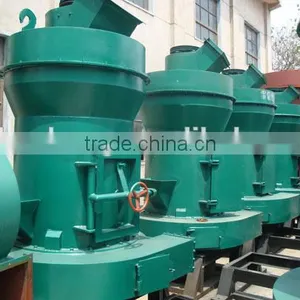

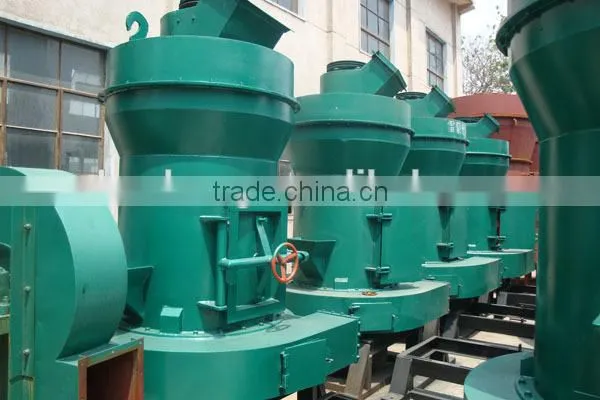

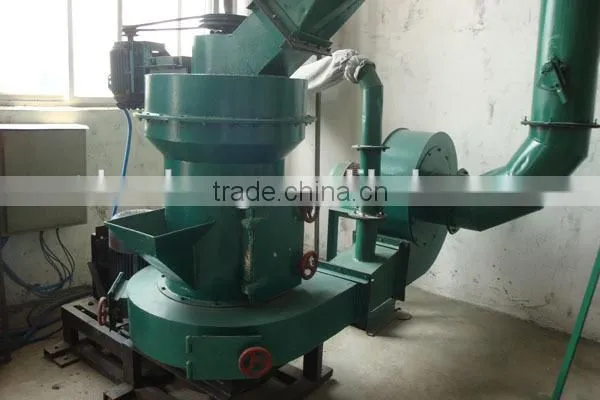

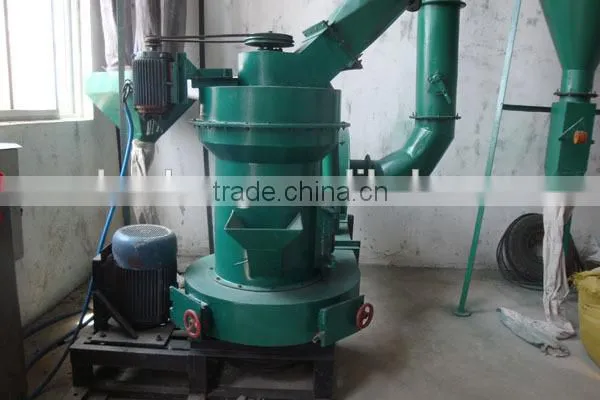

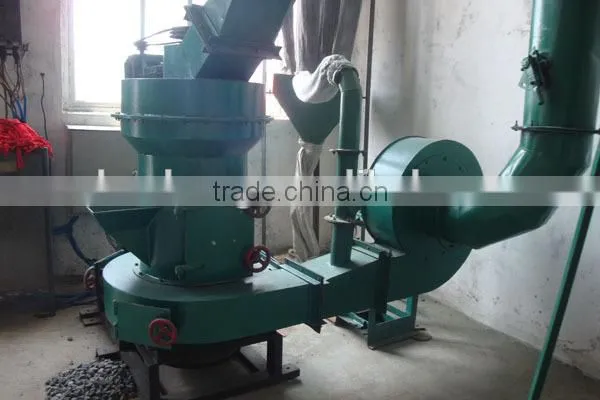

Raw ore superfine raymond mill price,grinding mill for sale
Why do customers choose Huahong?
Huahong raw ore superfine raymond mill, grinding mill applications:
Raymond Mill is applicable to the grinding and processing of more than 280 kinds of non-flammable and non-explosive materials with hardness less than 7 and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass.
Huahong raw ore superfine raymond mill, grinding mill principles:

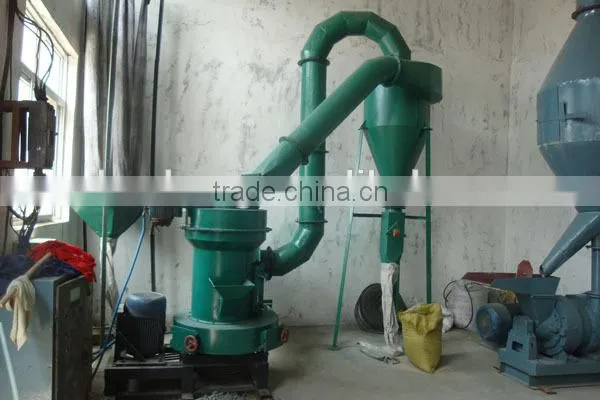

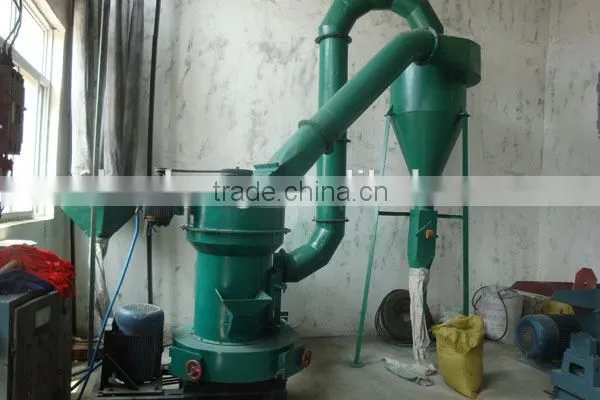

The fine powder flows into the cyclone collector together with air flow and is expelled from the powder output pipe as product.In the grinding chamber, since the stuff contains moisture to some extent, the heat generated during grinding makes the moisture evaporate, since the pipeline joints are not airtight, the external air is sucked in and the circulation air massincreases.
Huahong raw ore superfine raymond mill, grinding mill technical parameters:
Model data |
3R1410 |
3R2615 |
3R2714 |
4R2714 |
3R3016 |
4R3016 |
4R3216 |
5R4119 |
6R4525 |
|
Max. feeding siz (mm) |
5-8 |
20 |
20 |
15-25 |
15-25 |
15-25 |
25 |
30 |
30 |
|
Fineness of product (mm) |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
0.125-0.044 |
|
Capacity/Shift (t/8h) (Range diff materials) |
1-10 |
2-25 |
2-28 |
3-30 |
3-34 |
3-36 |
3-38 |
6-76 |
10-120 |
Speed (r/m) |
280 |
170 |
170 |
170 |
178 |
178 |
130 |
105 |
82 |
|
Inner ring diameter (mm) |
Φ405 |
Φ780 |
Φ830 |
Φ830 |
Φ910 |
Φ910 |
Φ970 |
Φ1280 |
Φ1770 |
|
Roller diameter (mm) |
Φ140 |
Φ260 |
Φ270 |
Φ270 |
Φ300 |
Φ300 |
Φ320 |
Φ410 |
Φ450 |
Height (mm) |
100 |
150 |
140 |
140 |
160 |
160 |
160 |
190 |
250 |
Main motor power(kw) |
Y160M-6-7.5 |
Y225S-8-18.5 |
Y255M-8-18.5 |
Y225M-8-22 |
Y225M-8-30 |
Y225M-8-30 |
Y225S-4-37 |
Y280S-4-75 |
Y315M-4-132 |
|
Fan motor model (kw) |
Y132S-4-5.5 |
Y180M-4-15 |
Y180M-4-18.5 |
Y180M-4-18.5 |
Y180L-4-22 |
Y180L-4-22 |
Y220M-4-30 |
Y25M-4-55 |
Y315M-4-132 |
|
Classifier motor (kw) |
Y90L-6-2.2 |
Y112M-6-2.2 |
Y112M-6-2.2 |
Y112M-6-2.2 |
Y132S-6-3 |
Y132S-6-3 |
YC1200-4A-5.5 |
YC1200-4B-7.5 |
Y160M-4-11 |
Dimensions(mm) |
3340×2161×3246 |
5970×4000×5000 |
5970×4000×5000 |
5970×4000×5000 |
7500×4500×6200 |
7500×4500×6200 |
9900×5800×8500 |
7850×8000×9700 |
8850×10500×1100 |
Weight (kg) |
2500 |
3800 |
3850 |
3900 |
7000 |
7500 |
14000 |
257000 |
Welcome to visit our factory!
We will provide you our best equipments at the
reasonable price to meet your requirements.
