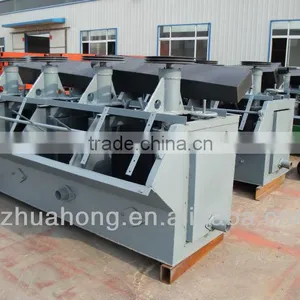

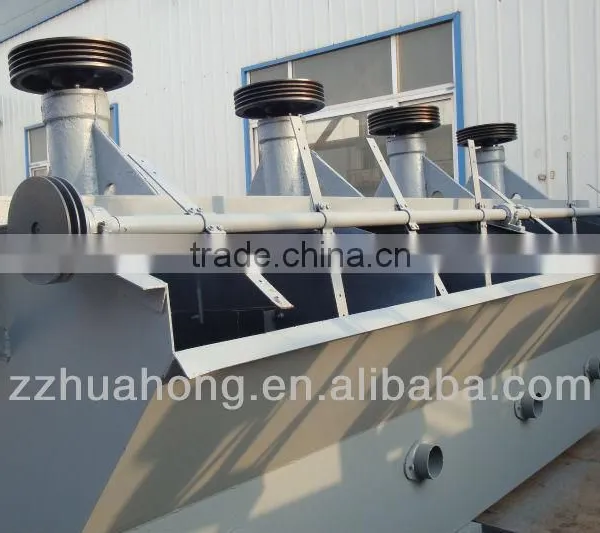

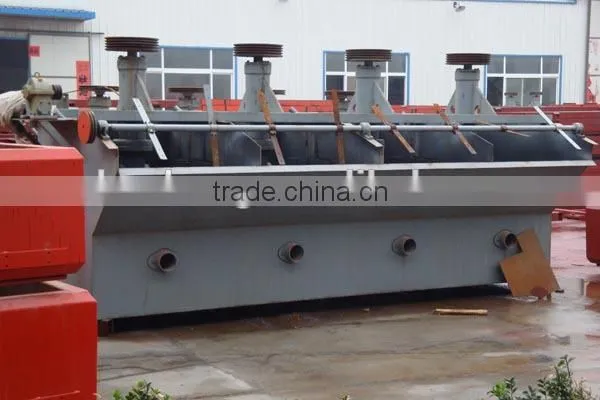

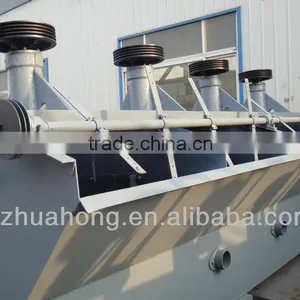

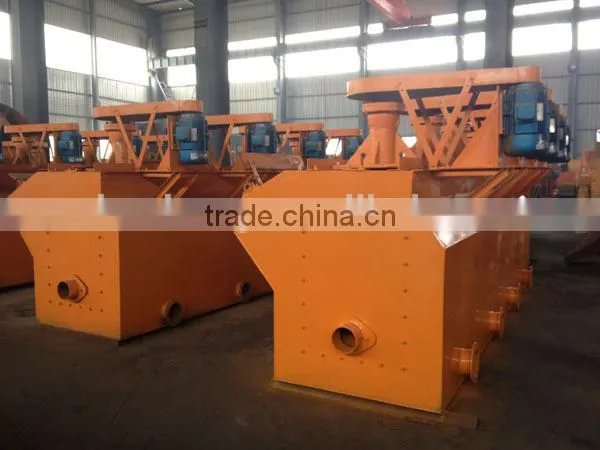

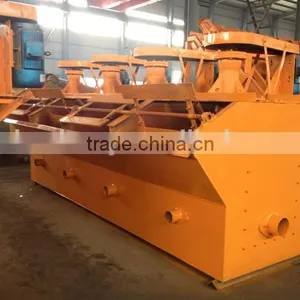

Help CenterAir Inflation Floatation Cell Machine / Separator Equipment for Sale With Low Price
Related Products
-
Separate Ferrous Metal and Non-ferrous Metal Floatation Mining Machine for SaleUS$ 1 - 9,999MOQ: 1 Set -
Low Investment Cost Floatation Machine for Mining With Good QualityUS$ 1 - 9,999MOQ: 1 Set
-
Gold Mining Subaeration Floatation Machine for Sale From China SupplierUS$ 1 - 9,999MOQ: 1 Set
-
Gold Ore Flotation Machine,floatation Tank,copper Ore Flotation MachineUS$ 1 - 9,999MOQ: 1 Set
-
2016 New Flotation Machine,laboratory Flotation Cell,laboratory Flotation MachineUS$ 1 - 9,999MOQ: 1 Set
Floatation machine feature
1.strong mixing force makes large material float
2.steady performance to separating complex ore and high grade mine
3.low energy cost
Floatation machine function and usage
Floatation machine can be used in coarse separating, fine separating and counter-floatation of nonferrous metal, ferrous metal and nonmetal mine such as coal, lead, iron, molybdenum, copper, zinc and nickel. It consists of slurry trough, mixing part, air filling part, motor and mineral foam removing part. When slurry is filled into trough, mixing blade stirs to let air in. Due to different hydrophilicity, some mineral sticks to floating air bubble, then the removing part gets it out from the mixture.
Floatation machine technical data
Model |
XJK-0.35 |
XJK-0.62 |
XJK-1.1 |
XJK-2.8 |
Available volume(m3) |
0.35 |
0.62 |
1.1 |
2.8 |
Capacity(m3/min) |
0.18-0.4 |
0.3-0.9 |
0.6-1.6 |
1.5-3.5 |
Rotating speed(r/min) |
470 |
400 |
330 |
280 |
Wheel diameter(mm) |
300 |
350 |
500 |
600 |
Power(kw) |
1.5+1.1 |
3+1.1 |
5.5+1.1 |
11+1.1 |
Weight(t/single trough) |
0.43 |
0.86 |
1.38 |
2.33 |
| Packing details | standard export packing; nude packing, wood case package |
| Delivery time | within 5 - 25 days after order confirmed |
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
On-sales service:
Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
After-sales service:
1. Installation, adjustment, and testing of equipment is available.
2. Train of technicians and workers at site is promised.
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers.
