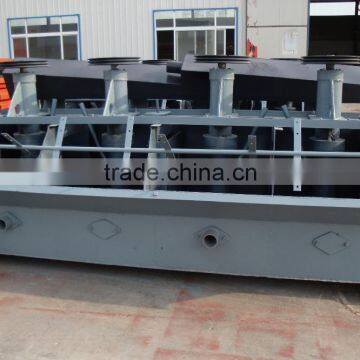

2016 new high efficiency flotation machine for sale
Floatation machine feature
1.strong mixing force makes large material float
2.steady performance to separating complex ore and high grade mine
3.low energy cost
Floatation machine function and usage
Floatation machine can be used in coarse separating, fine separating and counter-floatation of nonferrous metal,
ferrous metal and nonmetal mine such as coal, lead, iron, molybdenum, copper, zinc and nickel.
It consists of slurry trough, mixing part, air filling part, motor and mineral foam removing part.
When slurry is filled into trough, mixing blade stirs to let air in. Due to different hydrophilicity, some mineral sticks to
floating air bubble, then the removing part gets it out from the mixture.
Floatation machine technical data
Model |
XJK-0.35 |
XJK-0.62 |
XJK-1.1 |
XJK-2.8 |
Available volume(m3) |
0.35 |
0.62 |
1.1 |
2.8 |
Capacity(m3/min) |
0.18-0.4 |
0.3-0.9 |
0.6-1.6 |
1.5-3.5 |
Rotating speed(r/min) |
470 |
400 |
330 |
280 |
Wheel diameter(mm) |
300 |
350 |
500 |
600 |
Power(kw) |
1.5+1.1 |
3+1.1 |
5.5+1.1 |
11+1.1 |
Weight(t/single trough) |
0.43 |
0.86 |
1.38 |
2.33 |
These are our stock machines:
My email is: tomgao(at)
My skype is: haoheweimin6
Mobile phone number: 0086-15538238903
QQ number is: 2819981331
