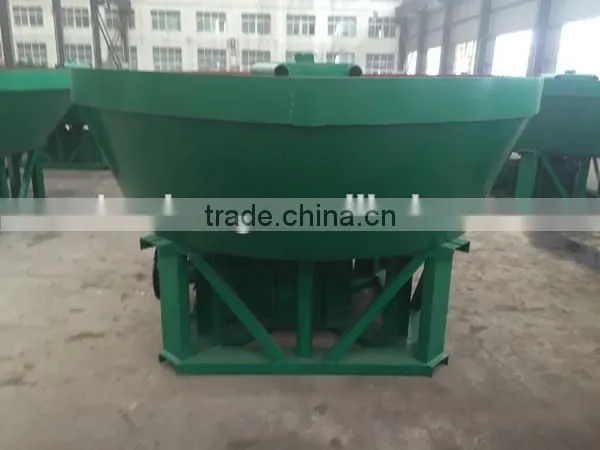

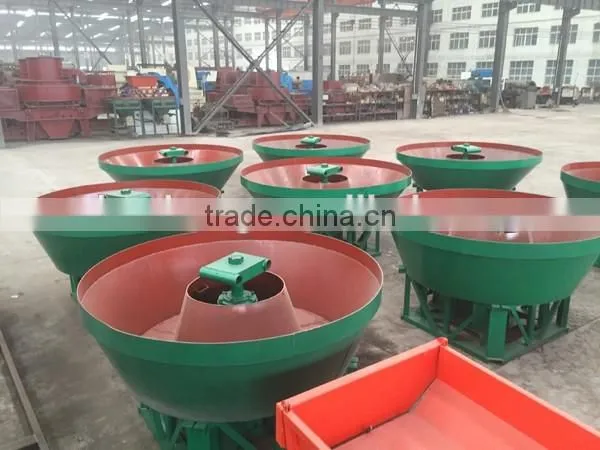

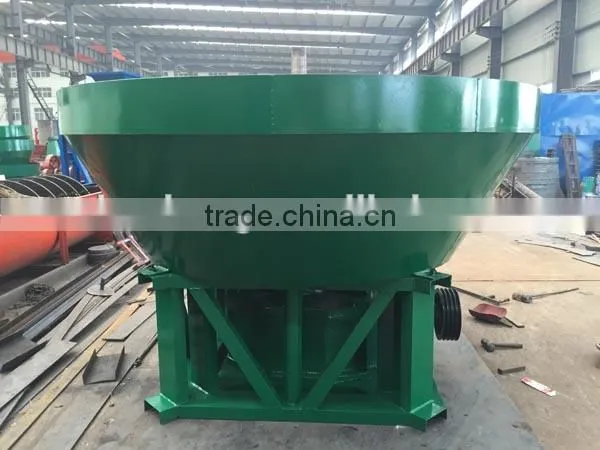

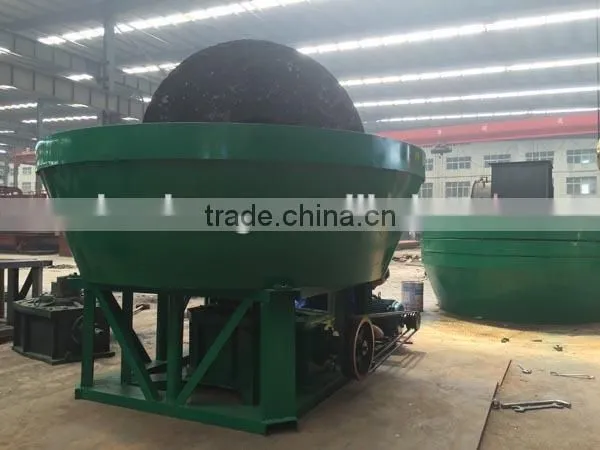

brief introduction of Mercury grinding mill plant:
Mercury grinding mill plant also named wet pan mill, is mainly used for separation of gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin and other minerals selected. With less investment, fast results, small footprint, saving power, sturdiness and durability, ease of maintenance and high return on investment. It is the preferred production for alternative ball mill, is ideal for small and medium enterprises dressing.

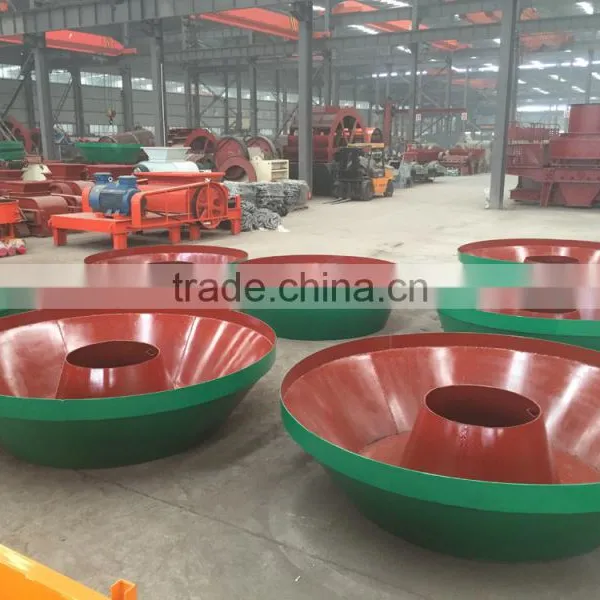

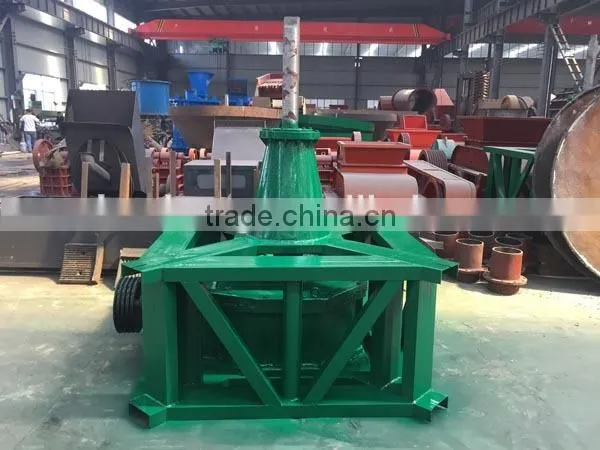

We use thicken plate on the water tank and improves gear box. The casting parts is joint by small pieces, even without large lifting device, it can finish parts change, this helps to decrease operation cost.
Feature of Mercury grinding mill plant
Mercury grinding mill is mainly through the raw material mixing, rolling, crushing, rolling repeated to achieve water balance, the ratio is uniform, low gas content, improve the molding rate and molding quality, through the machine grinding material molding products, With high density, good strength, non-stomatal ratio and so on. High efficiency, high output, the product is used in iron ore tailings for recycling process, not to the loss of slag, so that effective resources can be fully utilized
the selection method and process
1 grind gold machine in the installation and commissioning to the end of the grinder bottom 5 kg of mercury began to work properly.
2 each class to collect a sands, in the shift by adding 1 kg of mercury to charge the bottom of the Sands and mercury, the mercury received gold Sheng of the equipment, with a relatively high density of red cloth to the screw to screw out, open the red cloth Which is left Sands.
3 each class starts to add one kilogram of mercury on it. Containing a gold grasping or grasping gold rug behind the mercury plate can be put on the gold
Wet pan mill Application
Wet pan mill used with gold, silver, lead, zinc, iron, molybdenum, copper, antimony mine, mine, all ball mill can be selected grind gold machine can be used. It grinds gold through the raw material mixing, rolling, crushing, rolling repeatedly reach moisture equilibrium ratio of uniform, low gas content, improve the forming rate and forming quality, grind the material through the machine molding Products with high density, good strength, no porosity ratio weight. Energy efficient, high volume of output, the product is used for iron ore process tailings recovery, not to slag the loss of effective resources can be fully utilized.

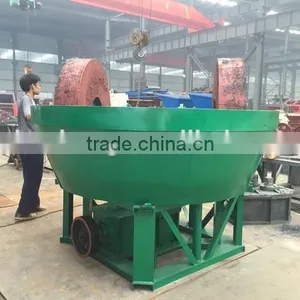

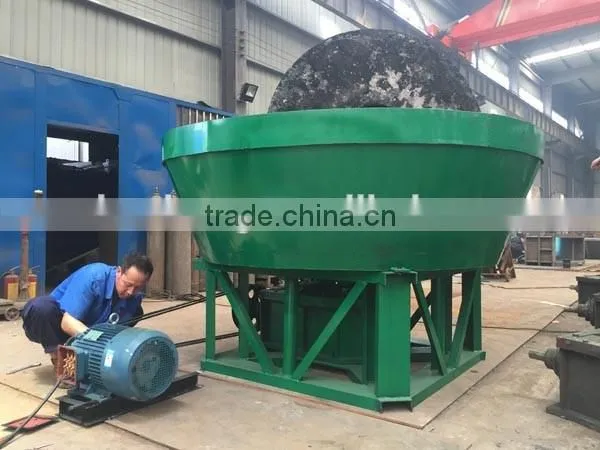

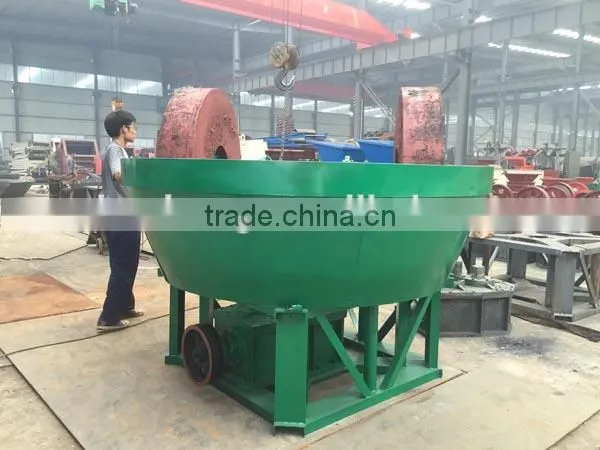

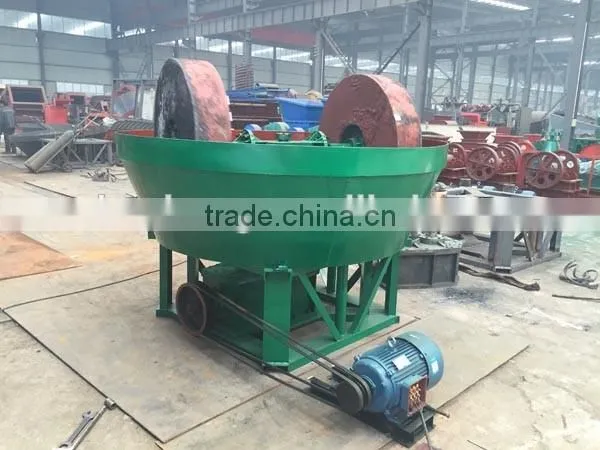

Three roller wheel wet pan mill
The operation and maintenance:
1) The raw material should be put into the machine after the machine running normally.
2) This machine is not allowed to state with the material in the machine. If the machine is stopped because of stoppage, the residual material in the machine should be cleared. Then start the machine again.
3) The material should be put into the machine uniformity, not sometimes much sometimes less. It's better to use a feeding equipment.
4) The bearing part should be add butter regularly.
5) Every bolts should be checked to avoid flexible.
6) The bearing should be changed in time if it is damaged to avoid damage other parts.
7) While the machine is running formally, you should check if there is abnormal sound in the reducer box and or bearing part, if there is a too high temperature, if there is too big motor current and so on. If it happened, you should stop the machine to remedy of the trouble.
8) The motor V-belt should be removed while examine and repair the machine for your safe.
our technical engineer will privod technical services in a year.
The thchnical parameters
| Model | specification |
Input size (mm) |
Process ability (t/h) |
Speed (r/min) |
Motor (kw) |
Weight (t) |
| 1600 | 1600×400×±20 |
less than 30 mm |
4 | 20—22 | 6—30 | 17 |
| 1500A | 1500×400×±20 | 3 | 20—22 | 6—22 | 15 | |
| 1500B | 1500×350×±20 | 2.5—3 | 20—22 | 6—22 | 14 | |
| 1500C | 1500×300×±20 | 2—2.5 | 20—22 | 6—22 | 12.5 | |
| 1400 | 1400×250×±20 | 1.5—2 | 16—18 | 6—18.5 | 9.5 | |
| 1300 | 1300×250×±20 | 1.5 | 21—23 | 6—15 | 7.8 | |
| 1200A | 1200×220×±20 | 0.9—1.2 | 16—18 | 4—7.5 | 6.0 | |
| 1200B | 1200×200×±20 | 0.8—1 | 21—23 | 4—7.5 | 5.8 | |
| 1100 | 1100×200×±10 | 0.6—0.8 | 16—18 | 4—5.5 | 5.5 | |
| 1000 | 1000×200×±10 | 0.5 | 21—23 | 4—5.5 | 4.5 | |
| 900 | 900×150×±10 | 0.3 | 17—19 | 3 |
3.2 |
certification
1. Are you a trading company or a manufacturer?
We are a manufacturer.
2. How can I get to your company?
You can get a flight to Zhengzhou Xinzheng International Airport . and we can go to airport to pick you up directly.
All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!
3. How long is your guarantee?
One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support
you when needed. You will be welcome to contact us with any problem may happened.
4. Will you send engineers to install the plant?
yes, but at an extra cost payable by the customer. Or you can get local contractors to do thecommissioning and we send one supervising engineer.
