Specifications
Limestone Ball Mill
1.Reduce the energy cost by 30%
2.Improve fineness of dischargin
3.High-effiencicy
4.Top quality ensure

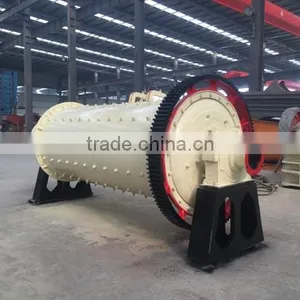

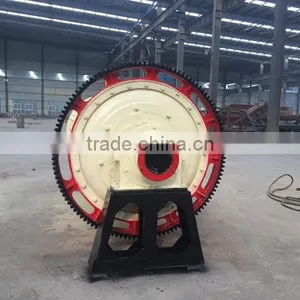

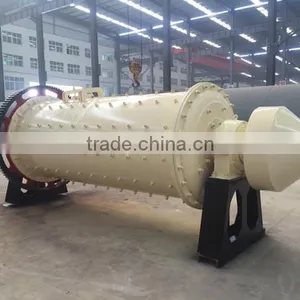

Brief Introduction of Ball mill
Ball mill is the key milling equipment after material has been crushed. It is widely used in cement, silicate, new construstion material, refractory material, chemical fertifizer, ferrous metal and non-ferrous mtals as well as ceramics. it is widely applied to dryy or wet grinding for ores nd grindable materials.
Working principle of ball mill:
The limestone ball mill is horizontal cylindrical rotation device, driven by brim gearwheel.
There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth.Then the whole grinding process is ended.

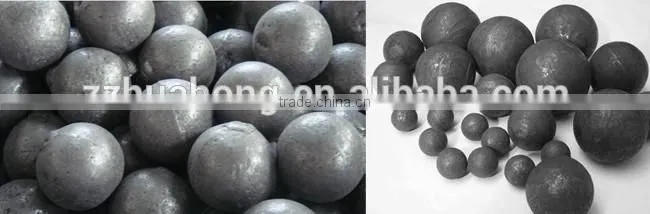

Grinding balls:
Technical parameters of Ball Mill
Model |
Speed of bucket (r/min) |
Weight of ball (t) |
Size of feed opening (mm) |
size of outputting feed (mm) |
Production (t/h) |
Power (Kw) |
Weight (t) |
900×1800 |
38 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
3.6 |
900×2100 |
38 |
1.3-1.4 |
≤15 |
0.075-0.83 |
0.7-3.5 |
18.5 |
3.9 |
900×3000 |
38 |
2.7 |
≤20 |
0.075-0.89 |
1.1-3.5 |
22 |
4.5 |
1200×2400 |
32 |
3.8 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
11.5 |
1200×2800 |
32 |
3.3-3.5 |
≤25 |
0.075-0.6 |
2-6 |
30 |
13 |
1200×4500 |
32 |
7 |
≤25 |
0.074-0.4 |
1.6-5.8 |
45 |
13.8 |
1500×3000 |
27 |
8 |
≤25 |
0.074-0.4 |
2-5 |
75 |
17 |
1500×3500 |
27 |
6.75-6.4 |
≤25 |
0.075-0.4 |
3-7 |
75 |
17.5 |
1500×4500 |
27 |
14 |
≤25 |
0.074-0.4 |
3.5-12 |
110 |
21 |
1500×5700 |
27 |
15 |
≤25 |
0.074-0.4 |
3.5-8 |
115 |
24.7 |
1830×3000 |
24 |
18 |
≤25 |
0.074-0.4 |
4-10 |
130 |
28 |
1830×3600 |
24 |
10.6-11.35 |
≤25 |
0.075-0.4 |
5-22 |
130 |
33.5 |
1830×7000 |
24 |
25 |
≤25 |
0.074-0.4 |
7.5-17 |
210 |
36 |
2100×3600 |
22 |
14-15.2 |
≤25 |
0.074-0.4 |
15-36 |
370 |
46.8 |
2200×5500 |
21 |
30 |
≤25 |
0.074-0.4 |
10-22 |
210 |
48.5 |
2200×6500 |
21 |
31 |
≤25 |
0.074-0.4 |
14-26 |
380 |
52.8 |
2200×7500 |
21 |
33 |
≤25 |
0.075-0.4 |
16-29 |
380 |
56 |
2400×3000 |
20.6 |
15.5-16.6 |
≤25 |
0.074-0.4 |
22-44 |
245 |
59 |
2400×4500 |
21 |
30 |
≤25 |
0.074-0.4 |
8.5-60 |
380 |
65 |
2700×3600 |
20.6 |
39 |
≤25 |
0.074-0.4 |
12-70 |
400 |
91.3 |
2700×4000 |
20.7 |
40 |
≤25 |
0.074-0.4 |
12-80 |
400 |
94 |
2700×4500 |
20.7 |
48 |
≤25 |
0.074-0.4 |
12-90 |
430 |
102 |
3200×4500 |
18 |
65 |
≤25 |
0.074-0.4 |
12-100 |
800 |
137 |

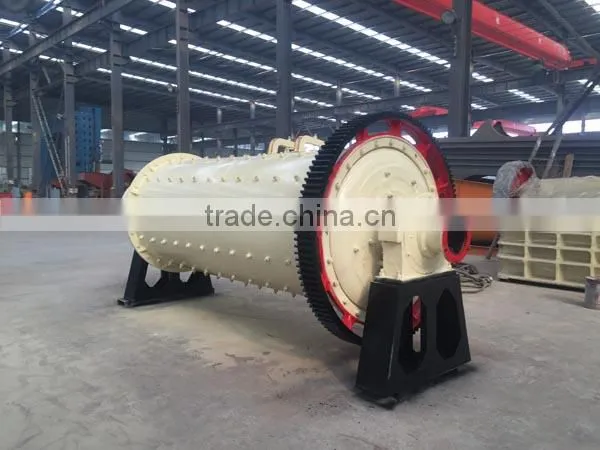

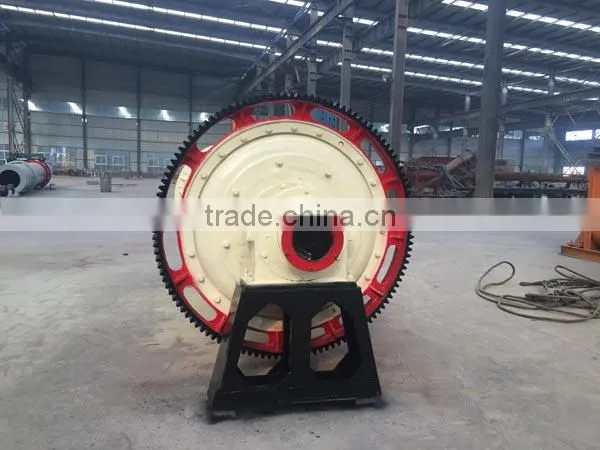

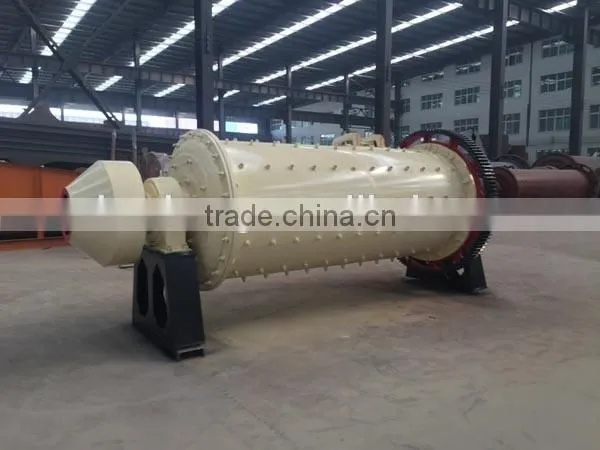

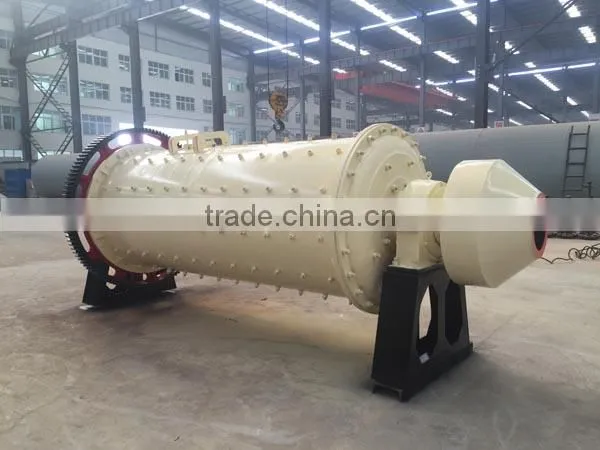

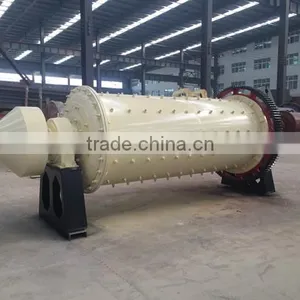

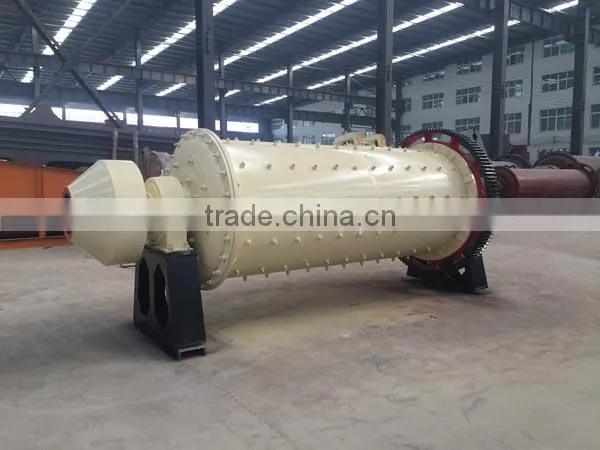

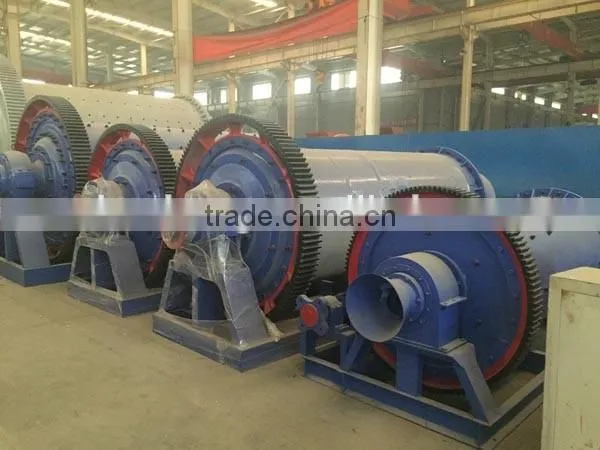

Ball mill in stock

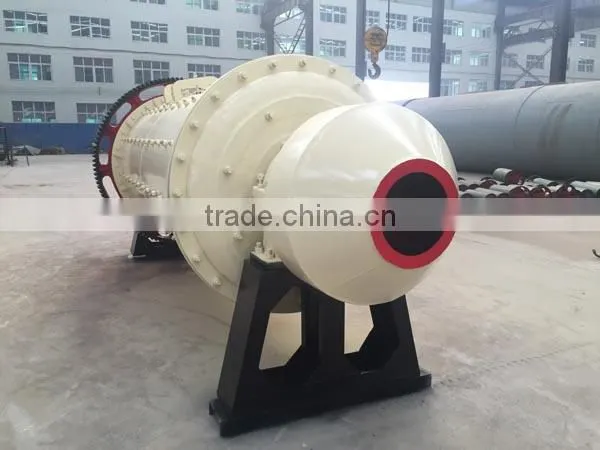

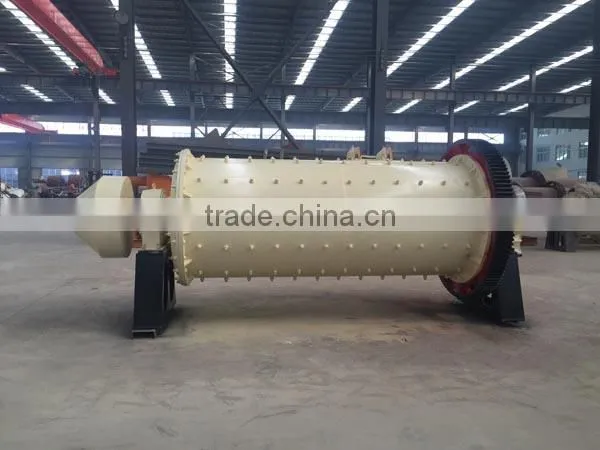

Small ball mill 900*1800

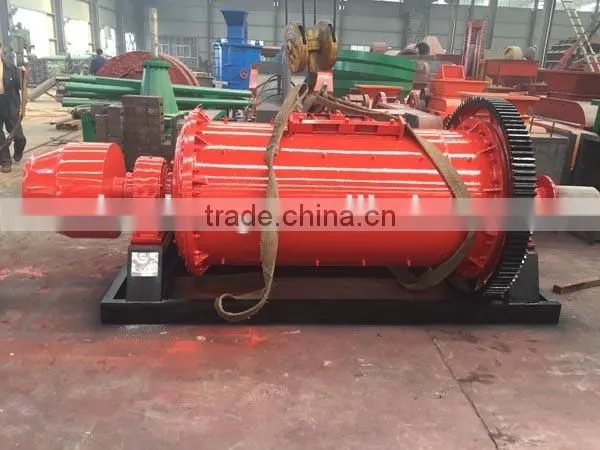

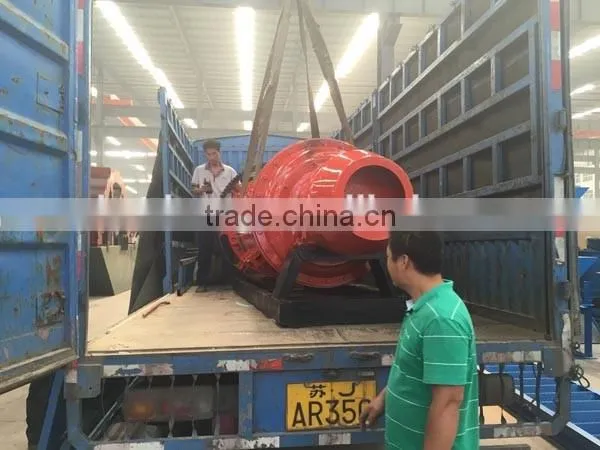

Ball mill ready to delivery to Japan:
| Packing details | standard export packing; nude packing, wood case package |
| Delivery time | within 5 - 25 days after order confirmed |
Delivery Detail:
- If the size is suitable for container ship, usually by container;
- If the size is too big, usually by bulk ship or by container after truncation;
- Transport ways are based on reducing cost for you and keep the crane performance!
- We have developed long-term and excellent relationship with many ocean freight partners, such as
APL, COSCO, OOCL, CSCL, MSC, etc. And train carrying is also available.The complete mode of
shipping and best service with lowest price are always provided for customers.
1>.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2>.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3>.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4>.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.
Zhengzhou Huahong Machinery & Equipment (Group) Co., Ltd. is located in National Hi-Tech Industrial Development Zone of Zhengzhou City, Henan Province, Our products passed the ISO9001 international quality system certification. It has won the glory of provincial superior enterprise. Huahong company's quality of products have been in a leading and dominant position in machinery industry of China. Its high-quality products and first-class services were also have been praised by overseas and domestic customers.
Customer Visiting:
Contact Person: Linda
Skype: huahongmachine05
Tel/WhatsApp: +86 15093303198
Hi, I am Linda. Always being on service you.
