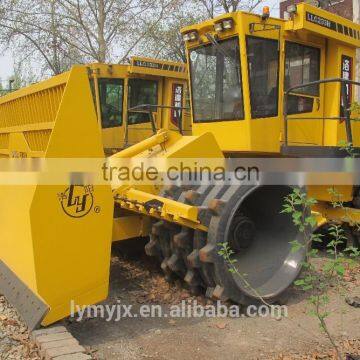

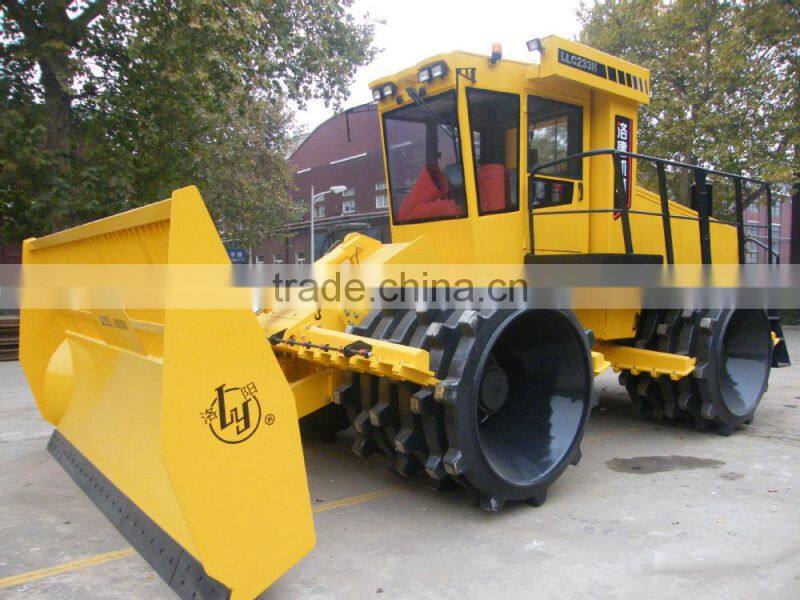

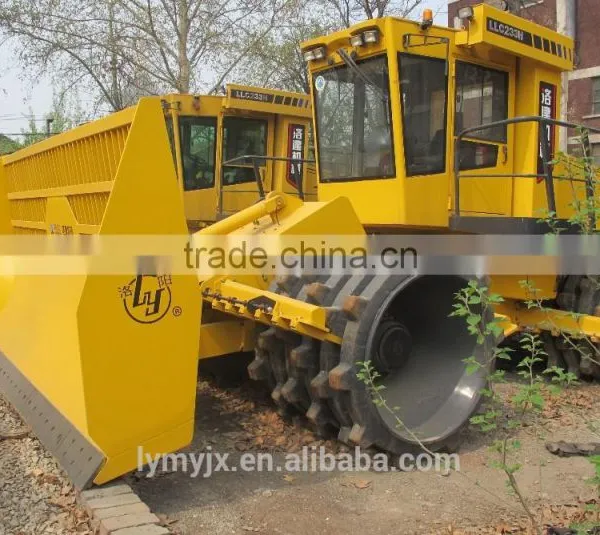

LLC233H Refuse Compactor
Main Features:
1. American CUMMINS Tier2 emission or WEICHAI Guo3 emission electronic-controlled diesel engines with reliable and powerful performance features environmental friend with low fuel consumption, low voice and low emission
2. The cooling air is sucked from top point of the entire machine, falling down maintenance cost with less radiator cleaning.
3. Hydrostatic travel drive system, four separate hydrostatic transmission circuits of four sets of variable hydraulic pumps and motors, solving traction problem while clipping or hanging of the driving wheels.
4. Hydraulic steering and blade lifting system is driven by a piston pump with load sensing system, provides smooth and light control, high efficiency and energy economy.
5. Service brake of the hydrostatic brake on the four wheels, parking brake and emerging brake of the hydraulic-applied spring-released brakes integrated in four wheel gear reducers will guarantee most reliable safety.
Specifications:
MODEL |
|
LLC233H |
Operating mass |
kg |
33000 |
Rolling width |
mm |
3430 |
Travel speed |
km/h |
0~4/4~8 |
Grade ability |
% |
100 |
Dozer blade height x width |
mm |
1980x4000 |
Wheelbase |
mm |
3500 |
Clearance |
mm |
610 |
Wheel width |
mm |
1350/1130 |
Wheel diameter(front/rear) |
mm |
1620/1620 |
Teeth no. per wheel(front/rear) |
|
60/50 |
Diesel engine model |
|
Cummins QSM11/ Weichai WP12N |
Diesel engine power |
kw |
250/276 |
Overall dimensions at dozer blade |
mm |
8250X4000X3750 |
Packaging: according to the shipment requirement
Shipping: 30days after receive the down payment
Payment terms: 30%TT as deposit, 70%TT before shipment;
Delivery time: 25-30 days after deposit
Sales manager: Alina
Email: smallwang(at)
Trade manager: cn220063878
Company: Luoyang Mingyang Engineering Machinery Co., Ltd.
About us:
Luoyang Mingyang Engineering Machinery Co., LTD is a professional engineering machinery selling company, qualified with import and export trade qualification, with products exported to more than 30 countries and regions domestic and abroad. Our main products are: loader, road roller, bulldozer, grader, paver, refuse compactor, concrete mixing plant and other large engineering machinery, as well as railway locomotive accessories (side frames, bolsters, wheels etc.), wind power equipment, etc., which gained the European CE certification and ISO9001 certification in China. Luoyang Mingyang Engineering Machinery Co., Ltd. has the most dynamic marketing team as well as an advanced and professional group consisting of many senior engineers, who are mainly responsible for the quality testing and production supervision to guarantee the high quality of our products and the good reputation of our company. After years of steady development, our products not only gained market in more than thirty domestic provinces, cities and autonomous regions, but also exported to Europe, Africa, South America, Russia, etc. We also established companies in several foreign countries. Our prospect is to become the famous domestic exporter of engineering machinery and we are committed to providing qualified engineering machinery products and services. Profession achieves good quality, ideal creates future. Mingyany, excellence due to continuous pursuit and condensed verve, to let the world enjoy the unlimited scenery of science and technology.
Customer Service:
Service promise:
We always insist ‘The customer is first, the client is best’. We do our effort to provide eligible products to all clients. Now we promise as following:
1. According to the rule of law, the detailed rules of new system of guarantees, we provide guarantees for our products.
2. If there are quality objections in our machine because of designing, making, assembly and material, we'll repair, replacing in time.
3. We’ll give the machine to client as its 0 working hour. That’s can make sure the client use and maintain better.
4. We’ll reply on you in 4 hours as you meet the problem when you use machine according to the manual strictly. If we need support service at work site, we’ll settle the problem inside the province in 24 hours and outside province 72 hours. If the machine be aboard, the client should send the broken parts photo to us first, we’ll reply on you in 2 workdays.
5. We can help the customer to choose the machine’s model according to client’s demand. We’ll do our best to supply service in the course of sale. And we can give technical consultation, driver training and maintenance man training in our factory.
6. We promise support service for the machine till it reject. If the products were broken down over the period of warranty, we’ll support the service without free.
7. Our service department promise answer the phone call every day include holiday.
8. We’ll make record for every machine and tracing them in order to get the latest information of the machine. So we can give the better service for you.
