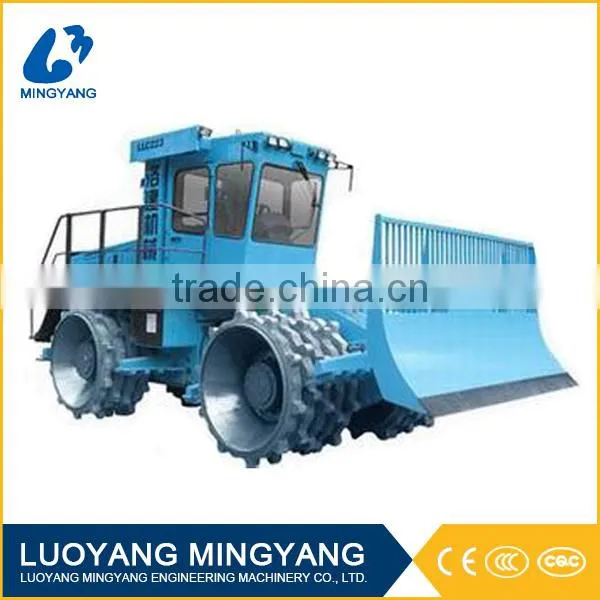

LLC220 Refuse Compactor
Refuse Compactor Main Features:
The refuse compactors are essential equipments for refuse landfill site. It has the functions of pushing, spreading, pulverizing demolishing and compacting the refuse. Using this refuse compactor will help to save the land, protect the environmental and extend the operating life of the refuse landfill site...
Refuse Compactor Techincal Specifications:
MODEL |
LLC220 |
||
Mass | |||
Operating mass |
kg |
20000 |
|
Dimensions | |||
Overall length |
mm |
7355 |
|
Overall width at dozer blade |
mm |
3000 |
|
Overall width at front wheel |
mm |
2910 |
|
Overall width at rear wheel |
mm |
2705 |
|
Overall height |
mm |
3590 |
|
Wheelbase |
mm |
3350 |
|
Clearance |
mm |
435 |
|
Drive | |||
Diesel engine manufacture |
|
SHANGCHAI |
|
Diesel engine model |
|
D6114ZG |
|
Diesel engine power |
kW |
147 |
|
Diesel engine rated speed |
r/min |
2000 |
|
Electrical system |
V |
24 |
|
Number of driven wheels |
|
4 |
|
Gradebility |
% |
100 |
|
Dozer blade | |||
Dozer blade height |
mm |
1650 |
|
Dozer blade width |
mm |
3000 |
|
Dozer blade height over ground |
mm |
1000 |
|
Dozer blade depth below ground |
mm |
150 |
|
Steering radius (outer front wheel) |
mm |
6085 |
|
Capacities |
|
|
|
Fuel tank |
L |
450 |
|
Hydraulic oil |
L |
236 |
|
