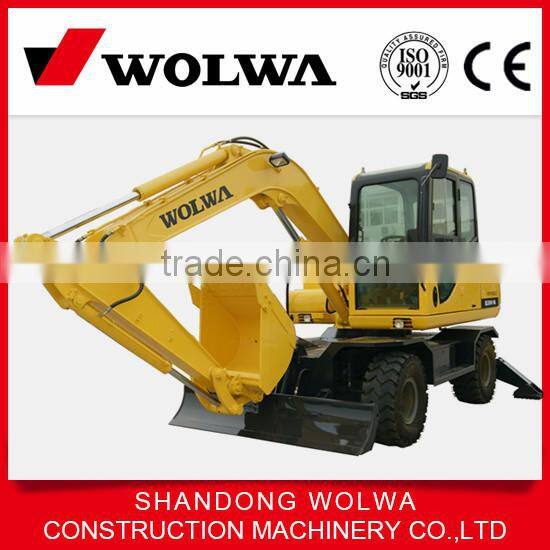

Price of Wheeled Hydraulic Excavator DLS100-9A

Price of Wheeled Hydraulic Excavator DLS100-9A photo-1
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
WOLWA
Model Number:
DLS100-9A
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name WOLWA
Model Number DLS100-9A
Condition New
Moving Type Wheel Excavator
Operating Weight 10600 kg
Bucket capacity 0.35 m³
Maximum Digging Height 7508 mm
Maximum Digging Depth 3926 mm
Machine Weight 9700 kg
Max Digging Radius 6503 mm
Rated Speed 0-20km/h
Certification ce.iso
After-sales Service Provided Engineers available to service machinery overseas





  wheeled hydraulic stacker DLS100-9A

price of wheeled hydraulic excavator DLS100-9A



 Equipped with strong engine system and international advanced hydraulic system, with the pilot-turning function, high speed of arm and bucket, to improve the working efficiency.



1. Silicone oil rubber damper equipped in the cab,suspended seat,air-conditioning system, and good pilot-operating system, for workers to operate naturally and accurately, and reduce the tiredness of workers.



  2. The newly designed dozer blade with large scope of raising and descending, is suitable for road,piping and other complex working condition.   Besides, the optimal design of the leg is adaptable to rough road, to ensure the stability of the whole machine.

 3. Intelligient controller monitor the machine.When there is something wrong with the enginge   fuel oil,water temperature, and the engine oil pressure, reminding information would be   displayed on the LCD, for the worker to read easily.   Structural parts is made from domestic high quality 16Mn steel, with advanced welding technology, greatly increasing the structural strength,to   ensure construction safety. The whole machine is vehiche shot blasted, increasing the adhesion   of painting, to delay component corrosion and improve service life.



Working weight:9700KG  Bucket volume:0.35 m3  Power:75KW/2200rpm



DLS100-9A Wheel Excavator
SPECIFICATION
WORKING PRESSUREMpa28
RATED FLOWL/min2*79.2
SWING SPEEDrpm12
TRAVEL SPEEDKm/h0-20
BUCKET DIGGING FORCEKN57.7
ARM DIGGING FORCEKN41.9
MAX HAULING FORCEKN58.2
MAX TORQUEN.m/rpm400/1500
GRADEABILITY°20
FUEL TANKL155
HYDRAULIC OIL TANKL110
SPECIFIED DISCHARGEml/r2*36
DIMENSION
OVERALL WIDTHmm2238
OVERALL HEIGHT(cab top)mm2900
OVERALL LENGTHmm6932
GROUND CLEARANCE(bob-weight)mm1110
MIN GROUND CLEARANCEmm362
TYRE GAUGEmm2210
WHEEL BASEmm2400
MOULDBOARD WIDTHmm2234
MOULDBOARD HEIGHTmm460
OPERATING SCOPE
BOOM LENGTHmm3908
STICK LENGTHmm1748
MAX DIGGING REACHmm6750
MAX DIGGING DEPTHmm3926
MAX DIGGING HEIGHTmm7508
MAX DUMPING HEIGHTmm5321
MIN SWING RADIUSmm2140
REAR-END SEINGRADIUSmm2191
MAX FLOORING REACHmm3558
MAX HADE DIGGING DEPTHmm6503

















price of wheeled hydraulic excavator DLS100-9A

price of wheeled hydraulic excavator DLS100-9A



price of wheeled hydraulic excavator DLS100-9A

price of wheeled hydraulic excavator DLS100-9A
