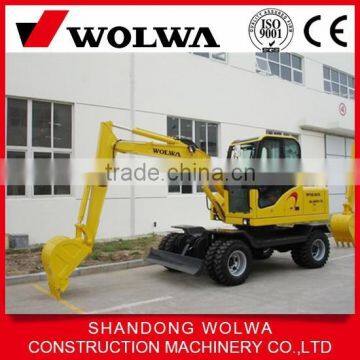

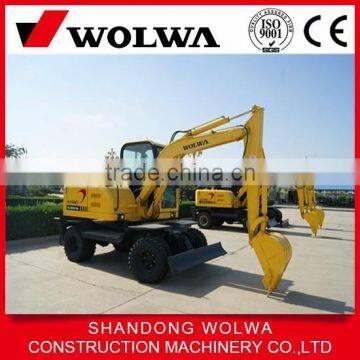

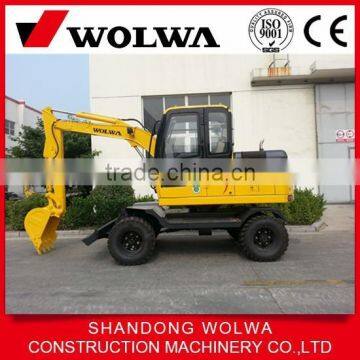

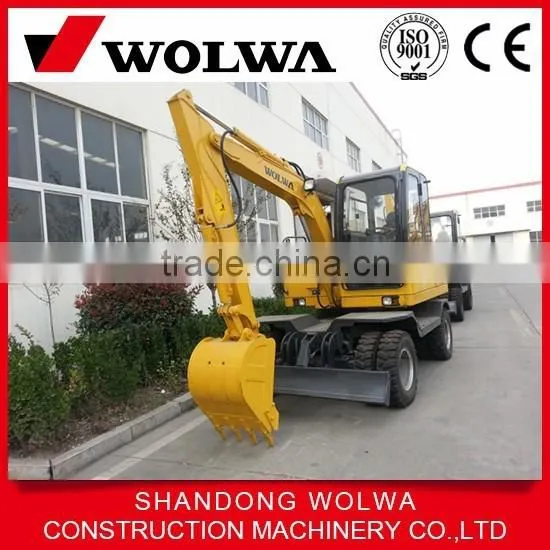

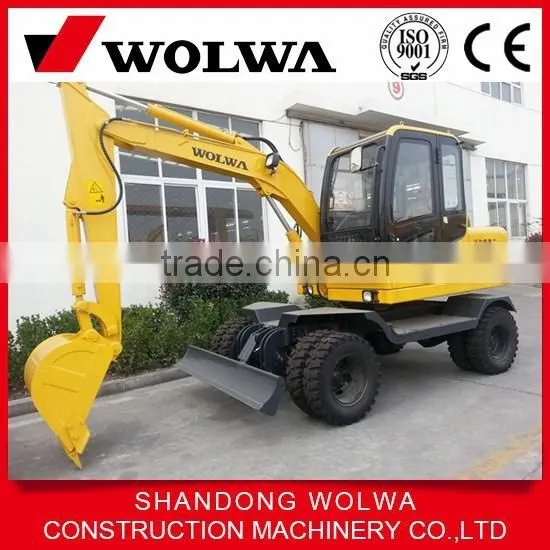

DLS865-9A 6t Wheeled Hydraulic Excavator
Product Features
1. Hydraulic parts are with international brands of rotary device and pilot control valve.
2. Joint is used from EATON Company which is the top 500 enterprises in the world, for its high reliability in all kinds of bad working condition with high resistance to shake or loose.
3. Structural parts is made from 16Mn steel, with advanced welding technology to ensure the strength and safety.
4. Computer monitoring: CPU monitor the machine moving, remind timely if something wrong, and provide intelligent protection for the engine.
5. Radiator is aluminum plate fin type, using vacuum brazing technology, to improve the heat exchange coefficient. It can play a good cooling effect even in the hot summer.
6. Travel device is driven by national advanced machine, with high speed and suitable for long-distance travel, to reduce the cost.
7. Turning system is helped with hydraulic parts, with high stability and flexibility.
6t Wheel Excavator Parameters
Wheeled Hydraulic Excavator | Unit | DLS865-9A | |
Operating Weight | kg | 5800 | |
Volume of Bucket | m³ | 0.24 | |
Power | kw/rpm | 48/2300 | |

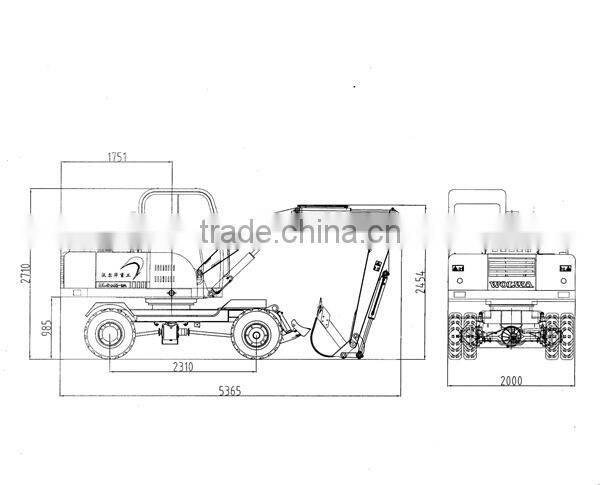

Dimensions
| Overall Width | mm | 2000 |
Machine Height | mm | 2710 | |
Overall Length | mm | 5365 | |
Ground Clearance(bob-weight) | mm | 985 | |
Min. Ground Clearance | mm | 280 | |
Tyre Gauge | mm | 1560 | |
Wheel Shaft Diameter | mm | 2310 | |
Mouldboard Width | mm | 2024 | |
Mouldboard Height | mm | 310 | |

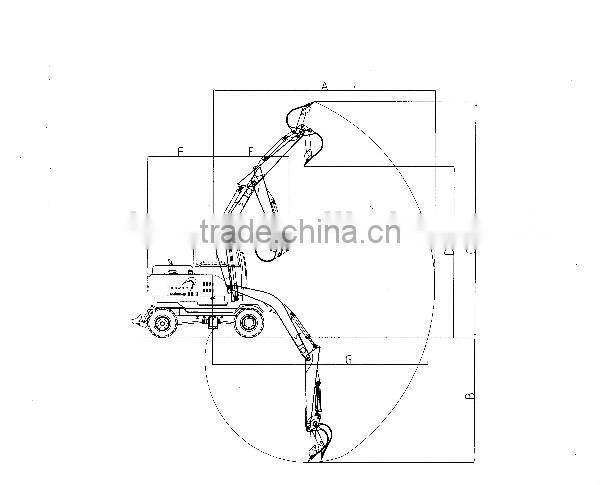

Operating Scope
| Boom Length | mm | 2880 |
Arm Length | mm | 1845 | |
Max. Digging Reach | mm | 5915 | |
Max. Digging Depth | mm | 3331 | |
Max. Digging Height | mm | 6369 | |
Max. Dumping Height | mm | 4615 | |
Min. Swing Radius | mm | 2020 | |
Rear-end Swing Radius | mm | 1751 | |
Max. Flooring Reach | mm | 5747 | |
Specifications
| Engine Model |
| A4D35G-014 |
Working Pressure | Mpa | 19 | |
Rated Flow | L/min | 44+50 | |
Swing Speed | rpm | 9.2 | |
Travel Speed | km/h | 0-30 | |
Bucket Digging Force | kn | 30 | |
Arm Digging Force | kn | 18 | |
Max. Hauling Force | kn | 34.8 | |
Max. Torque | n.m/rpm | 199/1650 | |
Grade Ability | ° | 20 | |
Fuel Tank | L | 125 | |
Hydraulic Oil Tank | L | 105 | |
Rated Capacity | ml/r | 20+23 | |
DLS865-9A 6t Wheel Excavator Packaging and Shipping Photos
•Direct factory supplier ,Well and High Quality Control
Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional hydraulic excavator manufacturer integrating scientific research, production and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000 square meters of production workshop with international advanced level and 8,000 square meters of R & D center. It has the production capacity with an annual output of 10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100 Enterprise.
Our main leading products are DLS865-9A DLS880-9A DLS890-9A DLS100-9A Wheeled Hydraulic Excavator, DLS880-9A DLS890-9A Wheeled Sugarcane Wood Loader, DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B DLS865-10B DLS880-9B DLS100-9B DLS130-9 DLS160-9 Crawler Hydraulic Excavator etc.
We also specializes in the sales of other construction machinery and agricultural equipment such as desiccated underground crusher, welding workstation, truck cranes, wheel loaders, skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.
Our company has passed the ISO9001:2008 authentication, and got European Union CE certificate. Our products are exported to many countries such as Russia, Belarus, Iran, Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
