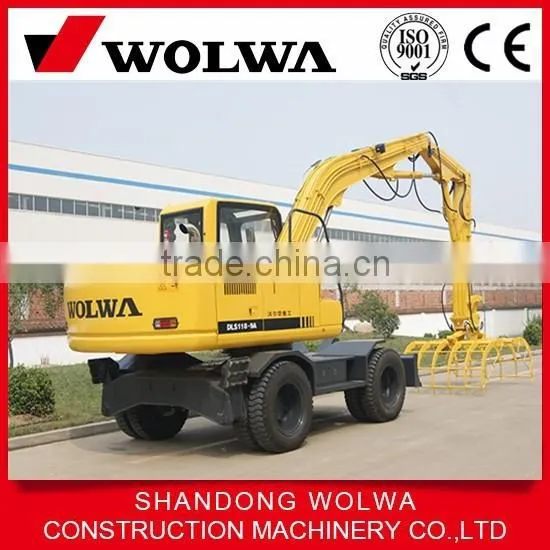

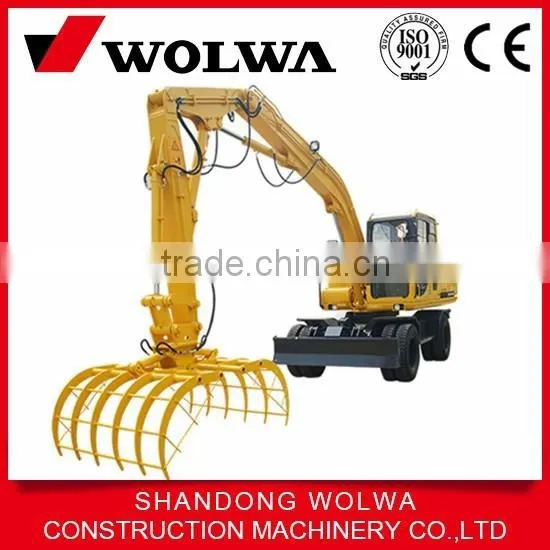

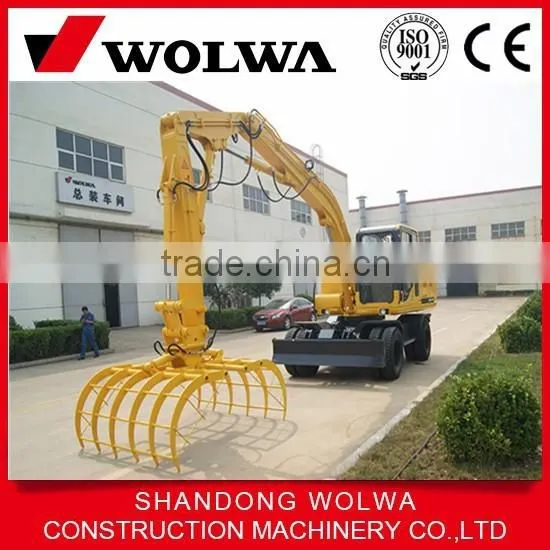

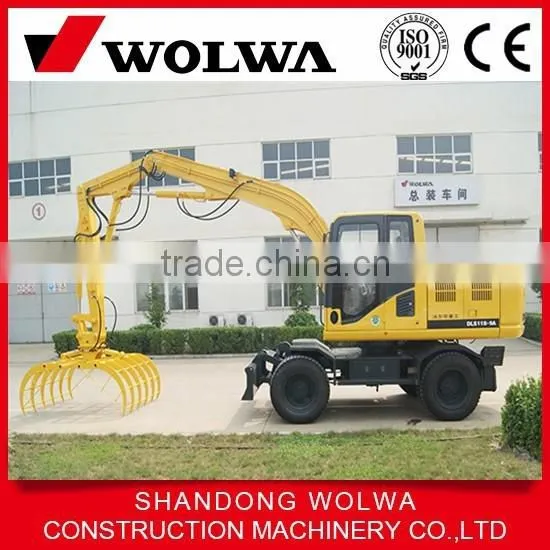

DLS118-9A Wheeled Hydraulic Stacker Excavator.
This model adopts the dynamic system of environmental protection and energy saving: international famous brand engine, powerful and stable performance, fuel economy, high efficiency and low noise. Imported from international famous brands of hydraulic components, less power consumption, fast operation, composite action optimization design, precision motion, movement coordination, long working life. Hydraulic walking forward backward has double speed, with strength of pump gas liquid brake system safe and reliable. 360 - degree rotating table, optional scoop, broken hammer, wood grabber, spiral drill, and other auxiliary equipment of the three work arm, scope of operation with a larger, more flexible operation mode, working curve more exquisite, can complete the excavator cannot work. Chassis is stable and reliable, eight walking tires, super long leg. With special shape push shovel, can support before and after the implementation, the ability to work with all terrain, ensure the operation of safe, reliable, rapid and stable. Widely used in power plant, waste operation field, waste disposal, etc.

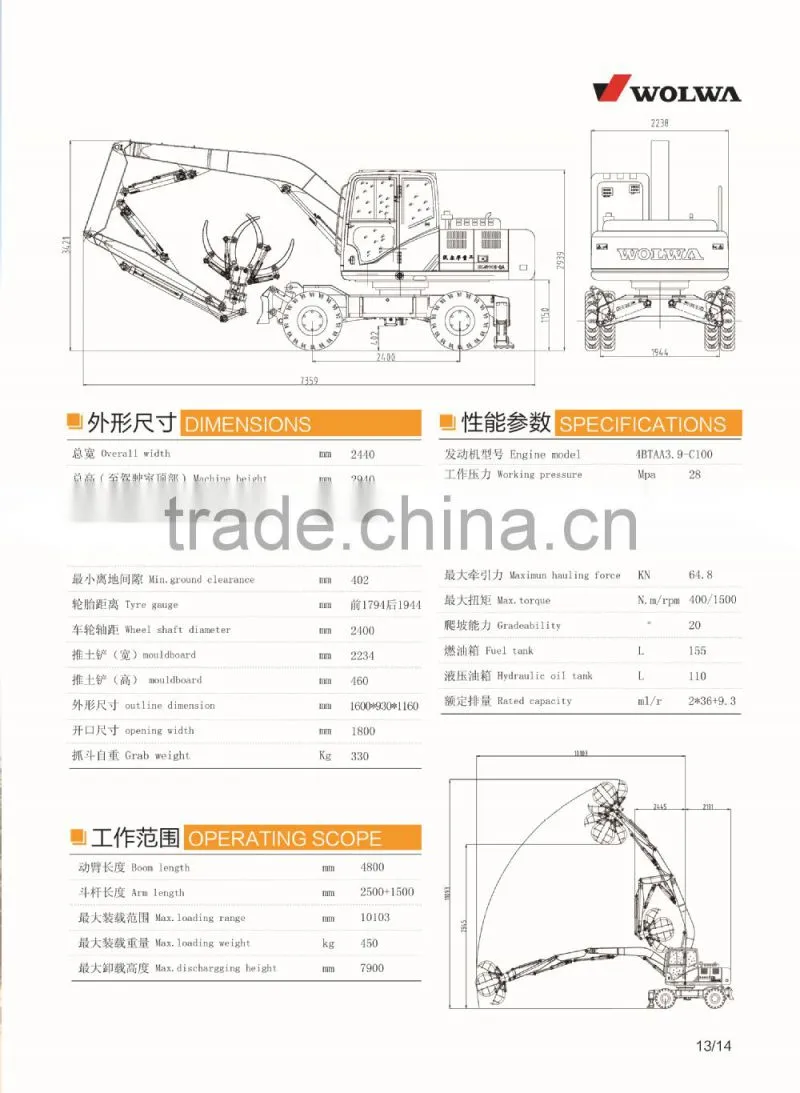

DLS118-9A Wheeled Hydraulic Stacker Excavator Parameters
DIMENSIONS | ||
Overall Width | mm | 2440 |
Machine Height (to cab top) | mm | 2940 |
Overall Length | mm | 7360(transportation) |
Machine Height (to boom height) | mm | 3422 |
Ground Clearance (bob-weight) | mm | 1150 |
Min. Ground Clearance | mm | 402 |
Tyre Gauge | mm | front1794 rear1944 |
Wheel Shaft Diameter | mm | 2400 |
Mouldboard Width | mm | 2234 |
Mouldboard Height | mm | 460 |
Outline Dimension | mm | 1600*930*1160 |
Opening Width | mm | 1800 |
Grab Weight | kg | 330 |
SPECIFICATIONS | ||
Engine Model |
| 4BTAA3. 9-CI00 |
Working Pressure | Mpa | 28 |
Rated Flow | L/min | 2*70.4*20.7 |
Swing Speed | rpm | 0-12 |
Travel Speed | km/h | 0-20 |
Max. Hauling Force | kn | 64.8 |
Max. Torque | N.m/rpm | 400/1500 |
Grade Ability | ° | 20 |
Fuel Tank | L | 155 |
Hydraulic Oil Tank | L | 110 |
Rated Capacity | ml/r | 2*36+9.3 |
OPERATING SCOPE | ||
Boom Length | mm | 4800 |
Arm Length | mm | 2500+1500 |
Max. Loading Range | mm | 10103 |
Max. Loading Weight | kg | 450 |
Max. Discharging Height | mm | 7900 |
DLS118-9A Wheel Stacker Excavator Packaging Details: nude packing in container
Excellent after-sale service teams
One year guarantee for the whole machine
24hours service by calling or email
General inspection on fixing before packing
Oversea service center acceptable
Shandong Wolwa Construction Machinery Co., Ltd, a corporate enterprise of Wolwa Group, is a professional hydraulic excavator manufacturer integrating scientific research, production and sales. Wolwa Group Co., Ltd has the total assets of 2.5 billion RMB. It has over 80,000 square meters of production workshop with international advanced level and 8,000 square meters of R & D center. It has the production capacity with an annual output of 10,000 sets of construction machinery and 20,000 sets of hydraulic parts. The company has the honors of National High-tech Enterprise, he Leader of Local SMES and Shandong Top 100 Enterprise.
Our main leading products are DLS865-9A DLS880-9A DLS890-9A DLS100-9A Wheeled Hydraulic Excavator, DLS880-9A DLS890-9A Wheeled Sugarcane Wood Loader, DLS118-9A Wheeled Hydraulic Stacker, DLS865-9B DLS865-10B DLS880-9B DLS100-9B DLS130-9 DLS160-9 Crawler Hydraulic Excavator etc.
We also specializes in the sales of other construction machinery and agricultural equipment such as desiccated underground crusher, welding workstation, truck cranes, wheel loaders, skid steer loaders, concrete mixer trucks, forklifts, road rollers, harvesters, tractors, steel bar processing machinery and so on.
Our company has passed the ISO9001:2008 authentication, and got European Union CE certificate. Our products are exported to many countries such as Russia, Belarus, Iran, Vietnam, Five Central Asian Countries, Africa and other countries all over the world.
