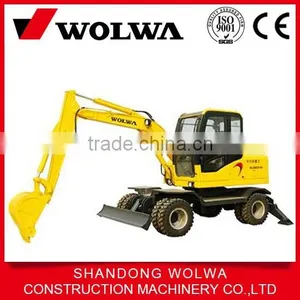

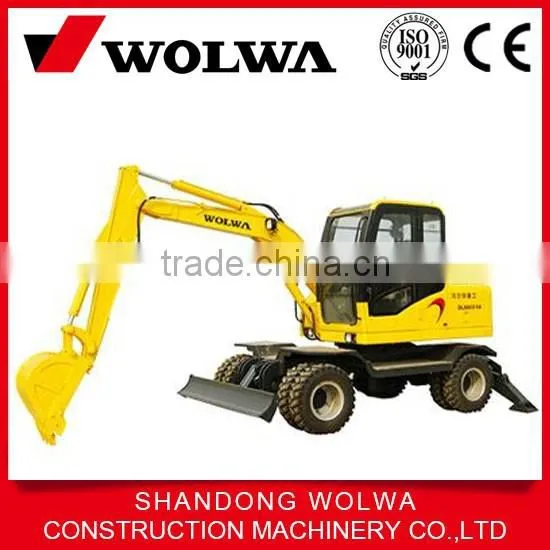

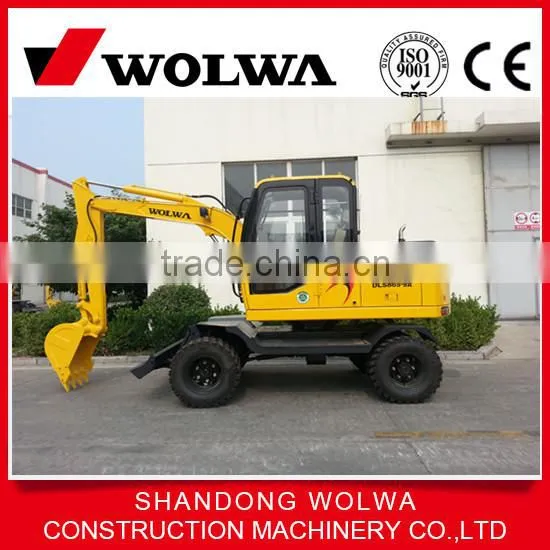

mini Wheel Excavator DLS865-9A in hot sale
1.Hydraulic parts is with international brands of rotary device and pilot control valve.
2.Joint is used from EATON company which is the top 500 enterprises in the world,for its high reliability in all kinds of bad working condition with high resistance to shake or loose.
3. Structural parts is made from 16Mn steel, with advanced welding technology to ensure the strength and safety.
4. Computer monitoring: CPU monitor the machine moving, remind timely if something wrong, and provide intelligent protection for the engine.
5. Radiator is aluminum plate fin type, using vacuum brazing technology, to improve the heat exchange coefficient. It can play a good cooling effect even in the hot summer.
6.Travel device is driven by national advanced machine, with high speed and suitable for long-distance travel,to reduce the cost.
7.Turning system is helped with hydraulic parts, with high stability and flexibility.
| DLS865-9A Wheel Excavator | ||
| SPECIFICATION | ||
| WORKING PRESSURE | Mpa | 19 |
| RATED FLOW | L/min | 44+50 |
| SWING SPEED | rpm | 9.2 |
| TRAVEL SPEED | Km/h | 0-30 |
| BUCKET DIGGING FORCE | KN | 30 |
| STICK DIGGING FORCE | KN | 18 |
| MAX HAULING FORCE | KN | 34.8 |
| MAX TORQUE | N.m/rpm | 199/1650 |
| GRADEABILITY | ° | 20 |
| FUEL TANK | L | 125 |
| HYDRAULIC OIL TANK | L | 105 |
| SPECIFIED DISCHARGE | ml/r | 20+23 |
| DIMENSION | ||
| OVERALL WIDTH | mm | 2000 |
| OVERALL HEIGHT(cab top) | mm | 2710 |
| OVERALL LENGTH | mm | 5365 |
| GROUND CLEARANCE(bob-weight) | mm | 985 |
| MIN GROUND CLEARANCE | mm | 280 |
| TYRE GAUGE | mm | 1560 |
| WHEEL BASE | mm | 2310 |
| MOULDBOARD WIDTH | mm | 2024 |
| MOULDBOARD HEIGHT | mm | 310 |
| OPERATING SCOPE | ||
| BOOM LENGTH | mm | 2880 |
| STICK LENGTH | mm | 1845 |
| MAX DIGGING REACH | mm | 5915 |
| MAX DIGGING DEPTH | mm | 3331 |
| MAX DIGGING HEIGHT | mm | 6369 |
| MAX DUMPING HEIGHT | mm | 4615 |
| MAX SWING RADIUS | mm | 2020 |
| REAR-END SEINGRADIUS | mm | 1751 |
| MAX FLOORING REACH | mm | 5747 |
