Specifications
1.Total weight-24220Kg2.Crawler Width-560mm
3.Engine model-NTAA855-C280S20 179Kw
4.CE &ISO9001
5.original spare parts

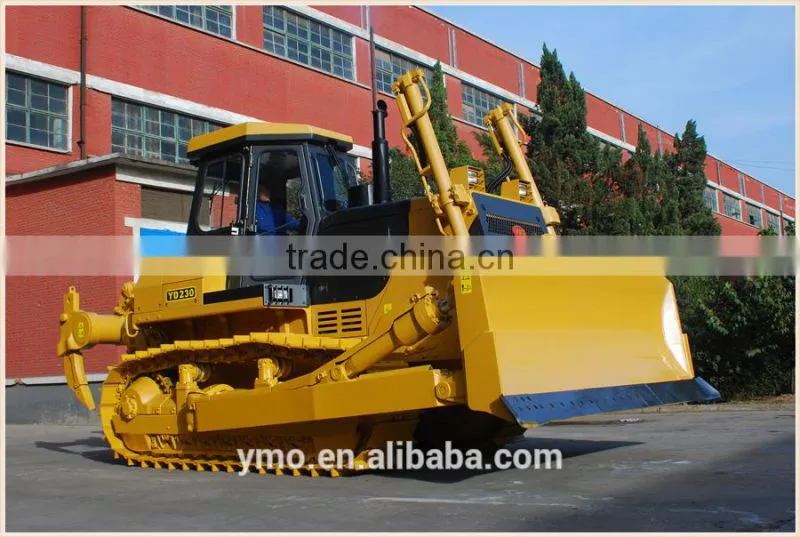

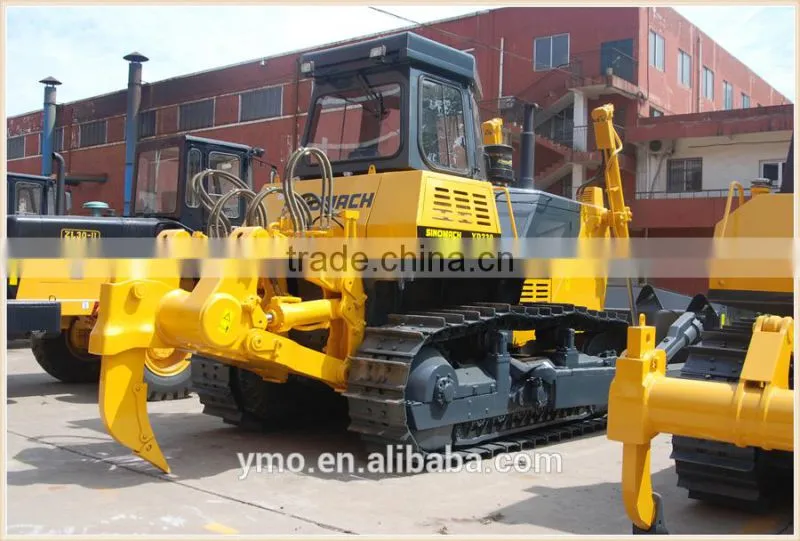

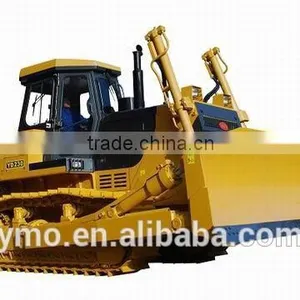

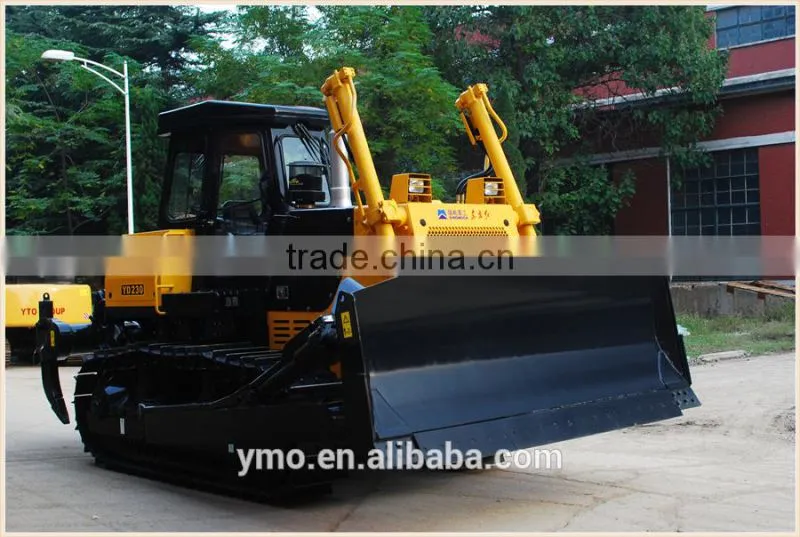

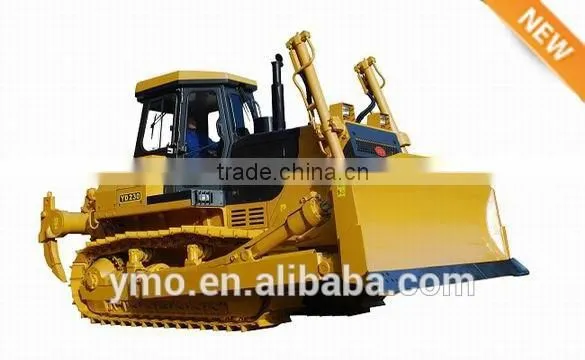

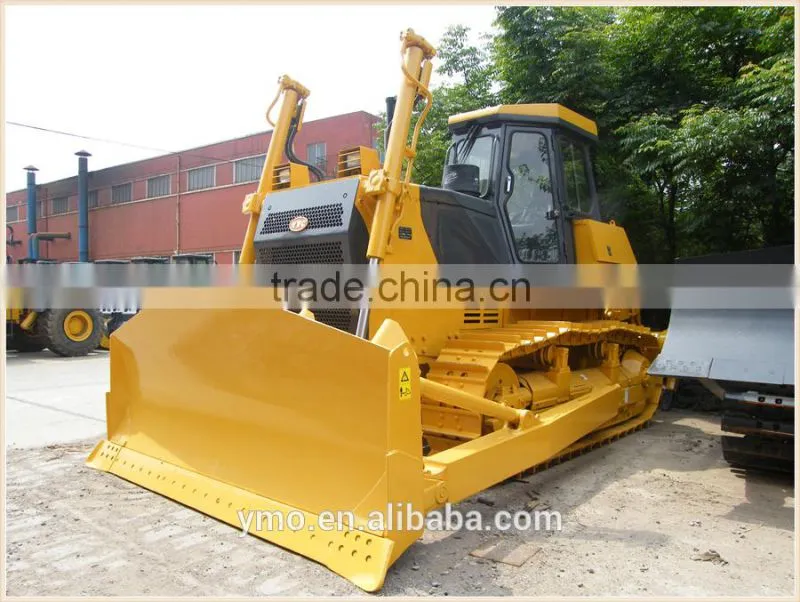

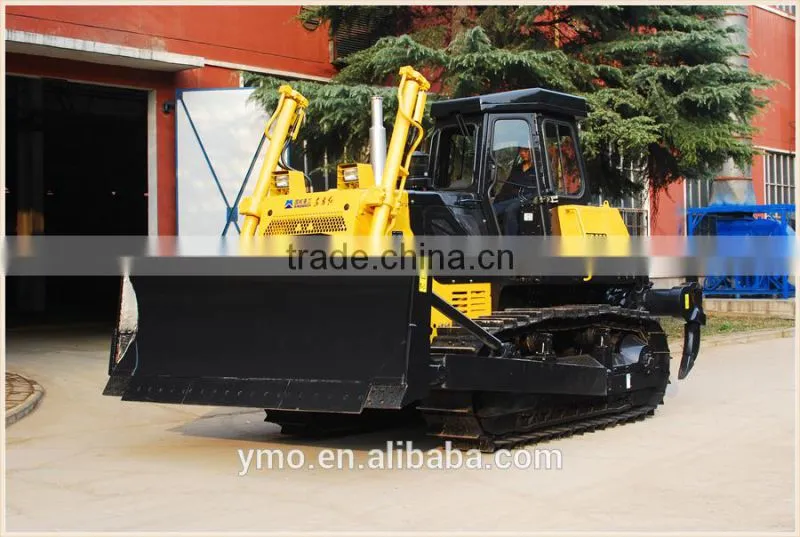

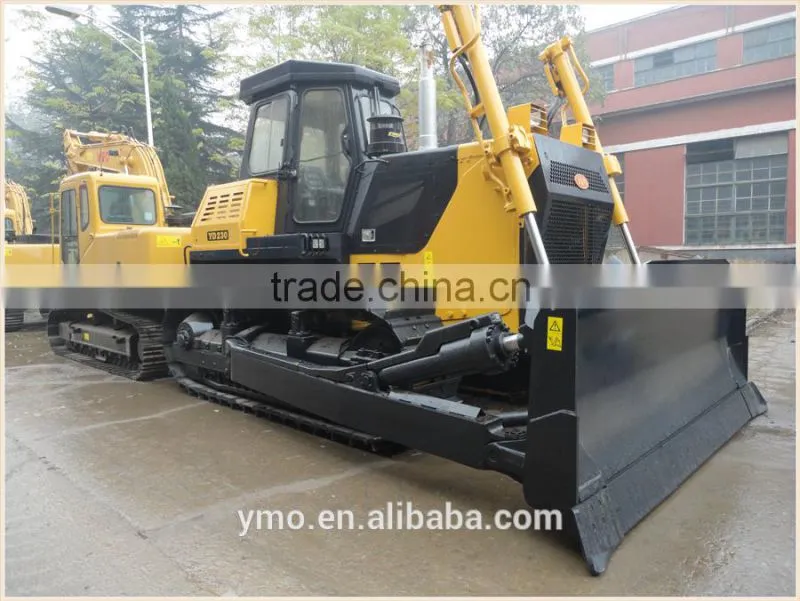

YD230 Hydraulic Crawler Bulldozer
Model |
Unit |
YD230 |
Total weight |
kg |
24220 |
Max towing force |
kN |
221 |
Engine model |
|
NTAA855-C280S20 |
Engine rated power /speed |
kw/ r/min |
179/2000 |
Fuel consumption of the engine |
g/km.h |
≤205 |
Engine max torque |
N.m |
|
Forward 1-3 gear |
km/h |
3.8~11.3 |
Reverse 1-3 gear |
km/h |
4.9~13.6 |
Caterpillar track board width |
mm |
560 |
Land pressure |
kPa |
76 |
Overall dimension(L×W×H) |
mm |
5590×3725×3522 |
Bulldozer shovel(W×H) |
mm |
3725×1395 |
Blade max lifting height |
mm |
1210 |
Blade max digging depth |
mm |
540 |
Towing equipment/Scarifier(optional) |
|
Stationary/Single,Three teeth |
We are one of the leading companies that are engaged in the manufacturing and supplying heavy-duty machinery (Ming Yang Engineering Machinery Co., Ltd) established in 1996. We are an ISO certified company.
Our range includes loader, bulldozer, versatile pavers, road roller, forklift truck, motor grader, and cold milling machine, dump truck, concrete mixing station and other heavy-duty machinery.
We make use of advanced technology equipments, and customers can be using their own design brand for the machinery products. Our machinery products are selling in world wide, Europe, South America, Africa and Russia.
Business type: manufacturer, supplier and service provider.
Product portfolio: durability, rugged construction, high tensile strength, corrosion resistant, resistance to abrasion, resistance to wear & tear and weather resistance.
Please visit our website.
China factory: Luoyang Mingyang Engineering Machinery Co., Ltd. manufacturing & supplying.
Hong Kong office: HK Mingyang International (Group) Co., Ltd. Sales & service.
1503, 15/F Tower 1 Metropolis Office, 10 Metropolis, Hung Hom, KLN, Hong Kong www.ymo.hk
1.We have our own professional spare parts department. Provide us with Products name, Brand name, Model No. then we could make a quotations for you .
2.Gurantee period: 12 months, If human factors damage,we will not offer compensation; If quality problems, we can exchange the broken parts, but the shipping freight is by your charge.
3.Ater-sale -deparmant offer 24 hours online service; If necessary, engineers available to service machinery overseas.
