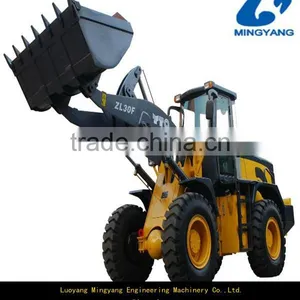

ZL30F 3 Tons Payloader
Main features:
1. YTO LR6B3-22 (Deutz diesel engine is optional) engine is applied as it features bigger power reserve, stronger power, bigger torque reserve coefficient, and fuel features economical and environmentally protected.
2. Torque-varied device features high efficiency and big torque-varied coefficient; as it equips with higher reliable gear-box and drive axis, it comes with bigger traction and longer life.
3. As fully hydraulic turning system equips with equidistant hinged car rack, frontal and rear wheel have the same track, eliminating hermit power loss while turning and it features easier and more flexible operation, has more stable performance.
4. As rear car rack is applied to single-plate T-shaped girder, so it features more stability, higher reliability, bigger interior space and easier maintenance.
5. Expand torque-varied oil heat radiator and water one. Make it high efficiently radiated, so as to suit for heavy load and high temperature operation environment.
6. Several devices are optional according to the customer and different working conditions, such as the joystick, Fops/Rops coal bucket, rock bucket and log grapple.
Technical parameter:
Model |
|
ZL30F |
Total weight |
kg |
10200 |
Bucket capacity |
m3 |
1.7 |
Rated load |
kg |
3000 |
Movable arm lifting time |
S |
≤5.5 |
Three item time |
S |
≤10.5 |
Max. digging force |
kN |
92 |
Min. turning radius |
mm |
5110 |
Wheelbase |
mm |
2750 |
Max. steering angle |
o |
36 |
Min. ground clearance |
mm |
395 |
Forward I-IV gears |
km/h |
7.7~33.6 |
Reverse I-II gears |
km/h |
9.5~28 |
Max. slope angle |
o |
28 |
Damping height |
mm |
3200 |
Damping reach |
mm |
970 |
Overall length |
mm |
7000 |
Overall width |
mm |
2425 |
Overall height |
mm |
3300 |
Engine model |
|
LR6B3-22 |
Engine rated power |
kW |
92 |
Fuel tank capacity |
L |
140 |
Hydraulic oil tank capacity |
L |
160 |
