Help CenterChina YTO WZ30-25 Backhoe Loader
Related Products
Specifications
1.Total weight-7400Kg2.Engine power-70Kw
3.Backhoe bucket capacity-0.3 CBM
4.Rated loading bucket capacity-1.0m CBM

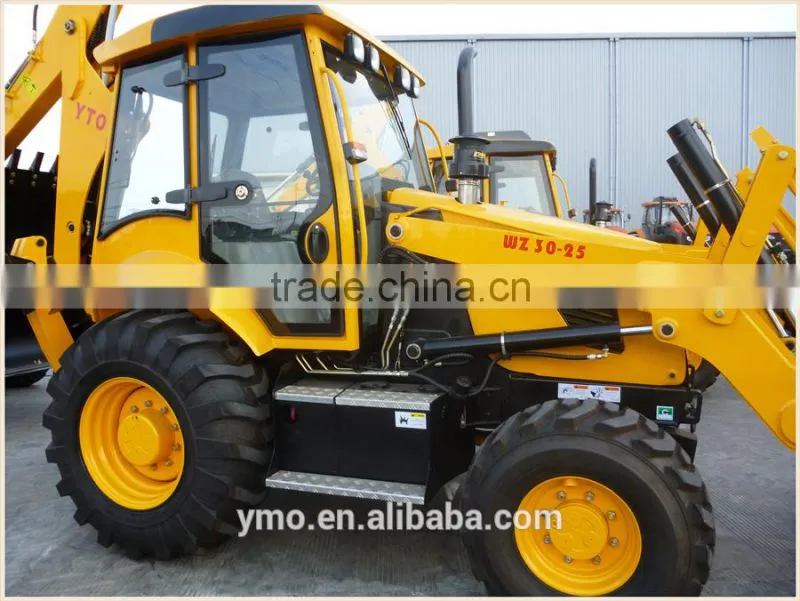

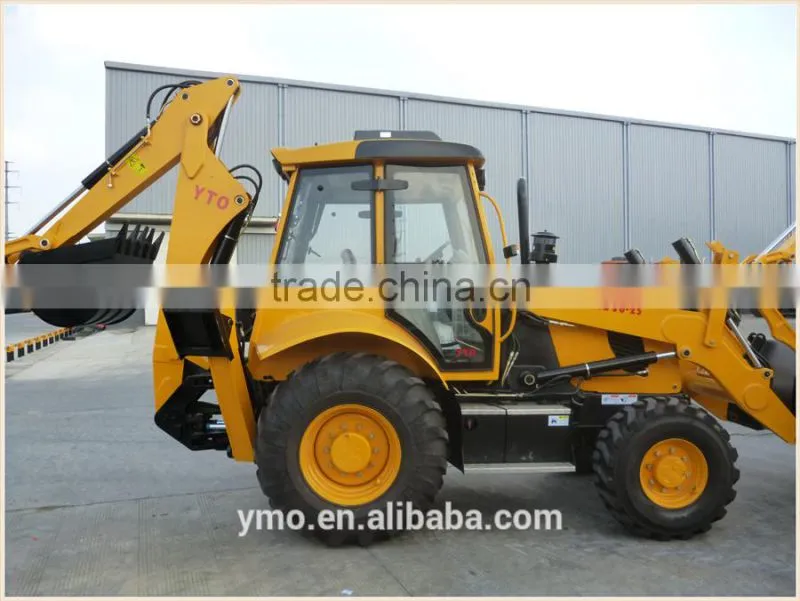

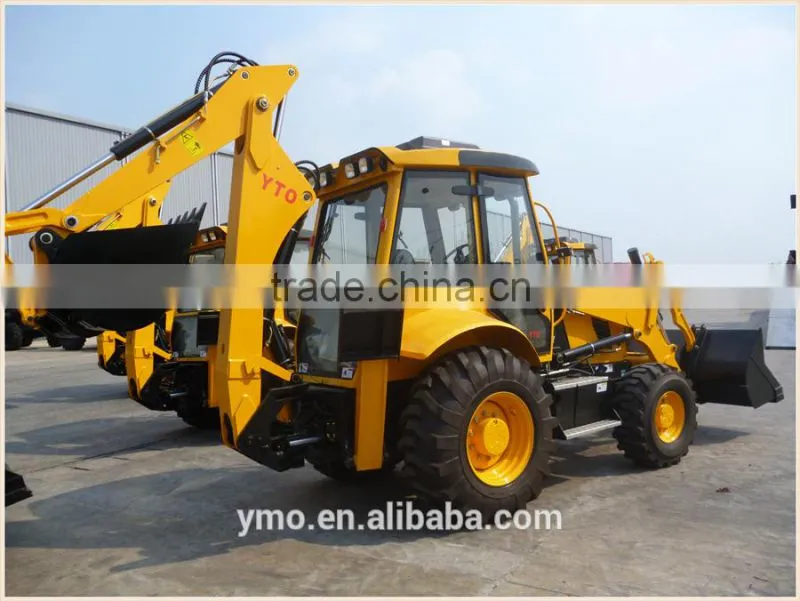

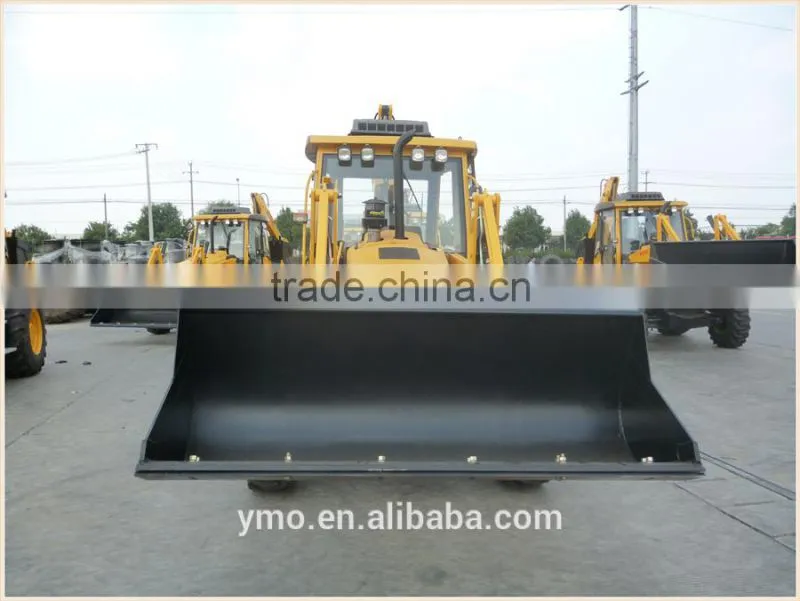

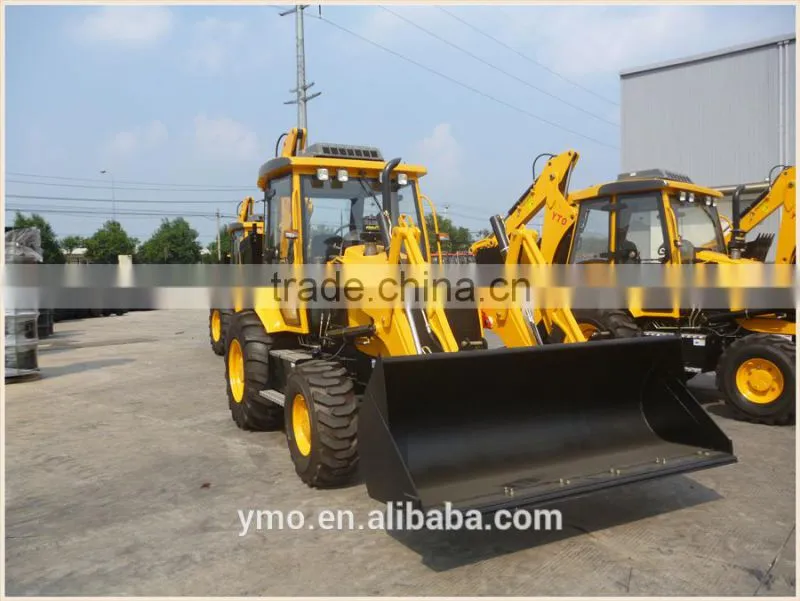

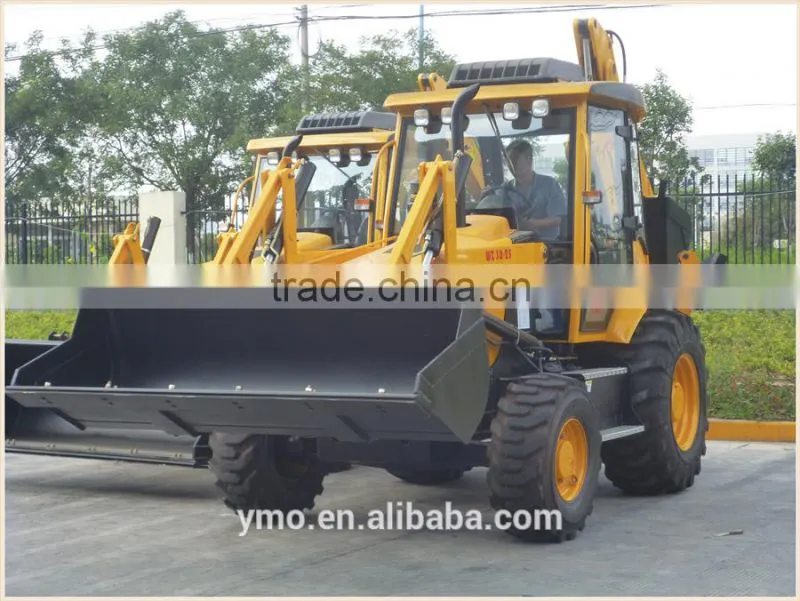

WZ30-25 Backhoe Loader
1.Special mining loading mechanical chassis, the machine has compact structure, layout reasonable;
2.Configuration wide open fully enclosed ROPS bridge, the beautiful outlook, all-round human control system's leading design, so the control more reasonable and comfortable;
3.Engine using Weichai Deutz, environmental protection, power strong, greatly improve the fuel economy and work efficiency, and greatly reduce the customer use cost;
A4.dopt imported Italian professional mining loading transmission system, hydraulic system adopts domestic famous brand, guarantee the stability of the product quality, the machine performance reached the international advanced level;
5.Excellent excavation loading workability can bring customers value return;
6.With differential lock, wet braking import drive axle ensures the machine's traction performance and vehicle safety performance; Swing steering axle design, steering Angle and swing Angle, so that the vehicle has better through the sex; Crane brake and parking brake using free maintenance, self regulation, full control of wet type brake;
7.7wo wheels, four-wheel drive, can meet the needs of customers;
8.The complete machine can according to customer needs is equipped with a variety of machines and tools.
Parameters:
Item |
Unit |
WZ30-25 |
||||
Backhoe bucket capacity |
m3 |
0.3 |
||||
Rated loading bucket capacity |
m3 |
1 |
||||
Rated Lifting Force |
KN |
>25 |
||||
Engine's rated power/rated speed |
KW |
70/2200 |
||||
Total operating weight |
Kg |
7400 |
||||
Backhoe turning angle |
Left |
º |
90 |
|||
Right |
º |
90 |
||||
Backhoe parameter |
Max. digging radius |
mm |
5481 |
|||
Max. dump height |
mm |
3737 |
||||
Radius at the max. dump height |
mm |
1084 |
||||
Max. digging radius at ground level |
mm |
5437 |
||||
Digging bucket's max. rotating angle |
º |
163.2 |
||||
Max. digging depth |
mm |
4338 |
||||
Max. digging force |
KN |
50+-10% |
||||
Loading parameter |
Max. dump height |
mm |
2626 |
|||
Dump reach at max. dump height |
mm |
726 (at dumping angle) |
||||
Bucket drawback angle |
Transportation position |
º |
43.5 |
|||
Ground position |
º |
36.5 |
||||
Dump angle |
º |
43.5 |
||||
Digging depth |
mm |
191 |
||||
Max. breakout force |
KN |
>40 |
||||
Max. grade ability |
% |
>30 |
||||
Max. traction power |
KN |
42 |
||||
Gear and travel speed |
Forward/Backward gear I |
km/h |
5.8/7.0 |
|||
Forward/Backward gear II |
10.5/12.6 |
|||||
Forward/Backward gear III |
20.1/24.3 |
|||||
Forward/Backward gear IV |
40.2/48.6 |
|||||
Min. turning radius |
mm |
4300 |
||||
Total length |
mm |
7077 |
||||
Total height |
mm |
3424 |
||||
Max. height (Cab) |
mm |
2735 |
||||
Max. Width(outrigger) |
mm |
2250 |
||||
Bucket width |
mm |
2328 (with attachment) 2313 (bucket max. width) |
||||
Configurations:
Name |
Item |
Engine |
Weichai Deutz TD226B |
Transmissions |
CARRARO, Italy. |
Front/rear axle | |
Oil pump(working and reversing) |
Chinese famous brand |
Re-director |
Chinese famous brand |
Priority valve |
Chinese famous brand |
Hydraulic lock |
Chinese famous brand |
Hose and seal components |
Chinese famous brand |
Oil cylinder |
Chinese famous brand |
ROPS driving cab |
KAT |
Loading/digging valve |
Chinese famous brand |
Seat |
Chinese famous brand |
Special frame for loading/ digging |
KAT |
Brake pump |
VIMOTER, Italy |
Storage battery |
VARTA |
Hydraulic vibro-rammer(optional) |
|
Hydraulic quartering hammer (optional) | |
We are one of the leading companies that are engaged in the manufacturing and supplying heavy-duty machinery (Ming Yang Engineering Machinery Co., Ltd) established in 1996. We are an ISO certified company.
Our range includes loader, bulldozer, versatile pavers, road roller, forklift truck, motor grader, and cold milling machine, dump truck, concrete mixing station and other heavy-duty machinery.
We make use of advanced technology equipments, and customers can be using their own design brand for the machinery products. Our machinery products are selling in world wide, Europe, South America, Africa and Russia.
Business type: manufacturer, supplier and service provider.
Product portfolio: durability, rugged construction, high tensile strength, corrosion resistant, resistance to abrasion, resistance to wear & tear and weather resistance.
Please visit our website.
China factory: Luoyang Mingyang Engineering Machinery Co., Ltd. manufacturing & supplying.
Hong Kong office: HK Mingyang International (Group) Co., Ltd. Sales & service.
1503, 15/F Tower 1 Metropolis Office, 10 Metropolis, Hung Hom, KLN, Hong Kong www.ymo.hk
1.We have our own professional spare parts department. Provide us with Products name, Brand name, Model No. then we could make a quotations for you .
2.Gurantee period: 12 months, If human factors damage,we will not offer compensation; If quality problems, we can exchange the broken parts, but the shipping freight is by your charge.
3.Ater-sale -deparmant offer 24 hours online service; If necessary, engineers available to service machinery overseas.
