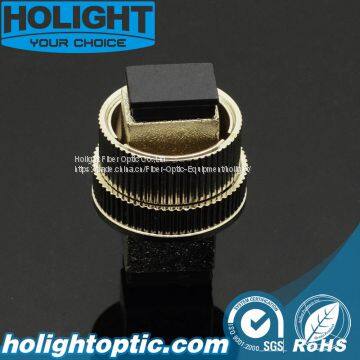

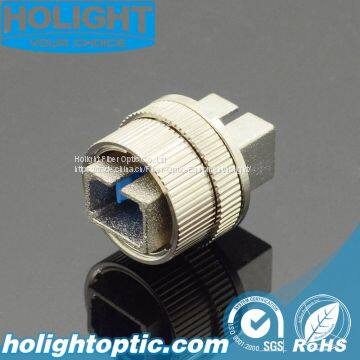

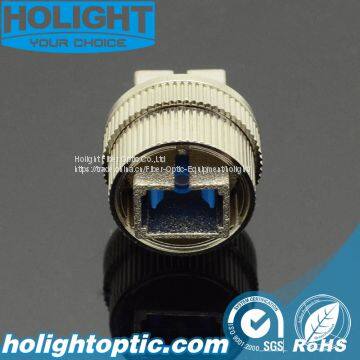

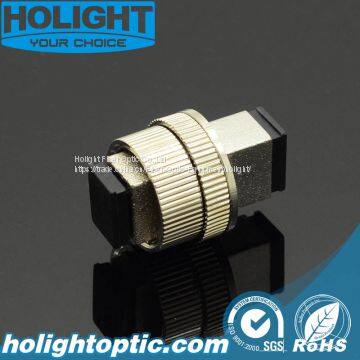

0~30dB Sc Fiber Optic Mechanical Adjustable Attenuator
US$ 1 - 5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Holight
Place of Origin:
China
Model Number:
AT02335T
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
5 days
Related Products
-
LC Male to Female Fiber Optic AttenuatorUS$ 1.5 - 3MOQ: 1 Piece -
LC/APC Plug in Type Fiber Optic AttenuatorUS$ 1.5 - 3MOQ: 1 Piece
-
Sc Fiber Optic AttenuatorUS$ 1.5 - 3MOQ: 1 Piece
-
1*4 PLC ABS Module Box 0.9mm 1X4 With Sca ConnectorUS$ 5 - 9MOQ: 1 Piece
-
1*8 ABS Module PLC Splitter 0.9mm With Sc APC ConnectorUS$ 7 - 12MOQ: 1 Piece
Brand Name
Holight
Place of Origin
China
Model Number
AT02335T
APPLICATIONS
· Telecommunication Networks
· Data Networks
· Video & CATV
FEATURES
· Bellcore Compliant
· Durability (well over 100mw)
· Wavelength Independent (DWDM)
· Simple and Reliable Structure
* SPECIFICATIONS
| Attenuation Range | 0-30dB |
| Attenuation Accuracy | ±0.5dB(1dB-10dB) |
| ±1.0dB(11dB-30dB) | |
| Available Wavelengths | 1310nm,1550nm,1310&1550nm |
| Wavelength Dependence | |
| Retuen Loss | ≥55dB(UPC) |
| ≥65dB(APC) | |
| Polarization Dependent Loss | ≤0.2dB |
| Temperature Range | -40-80°C(≤0.2dB in insertion loss) |
| Humidity Range | ±0.2dB Change in 10% to 90% relative Humidity Range |
| Vibration | ≤0.1dB Change between 10Hz to 55Hz |
| Drop | ±0.2dB after 8 drops from 1.8meters onto a hard surface |
| Maximum Optical Input Power | 200mW |
ORDERING INFORMATION
| Connector | Application | Wavelength | Attenuation Level |
| LC | UPC | 1310nm | 0~30dB |
| SC | APC | 1550nm | |
| ST | 1310&1550nm | ||
| FC | 850nm |
