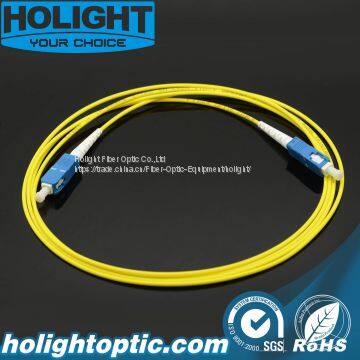

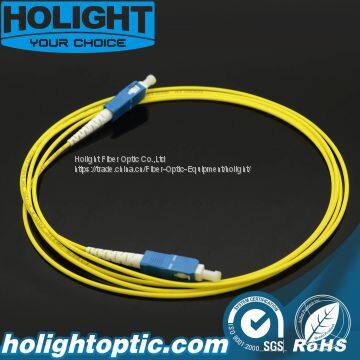

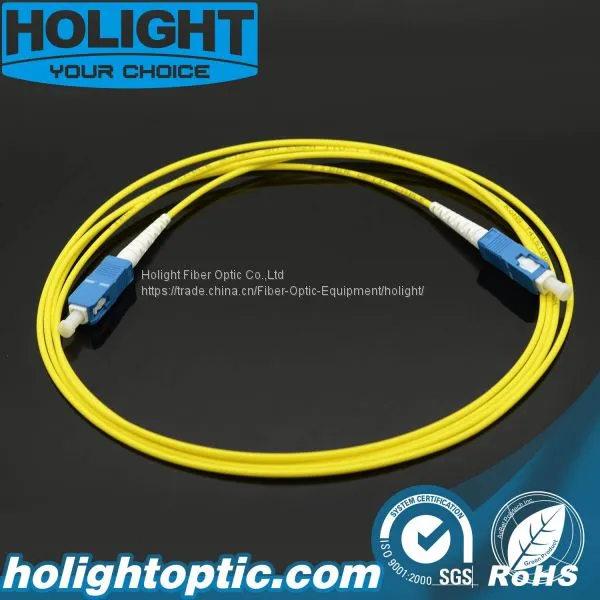

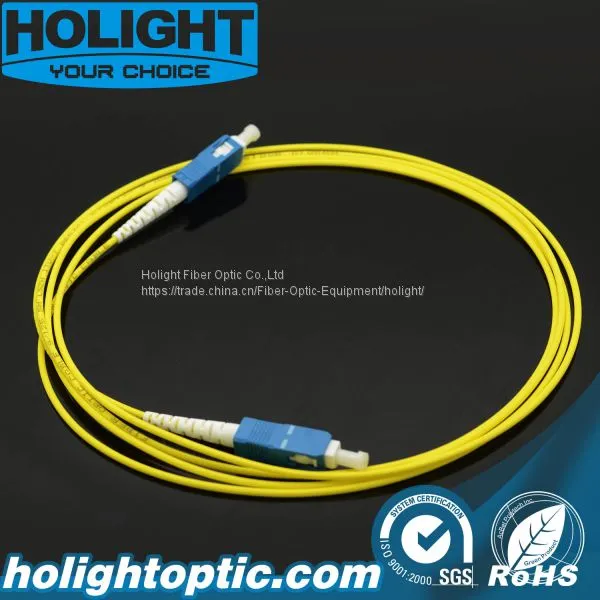

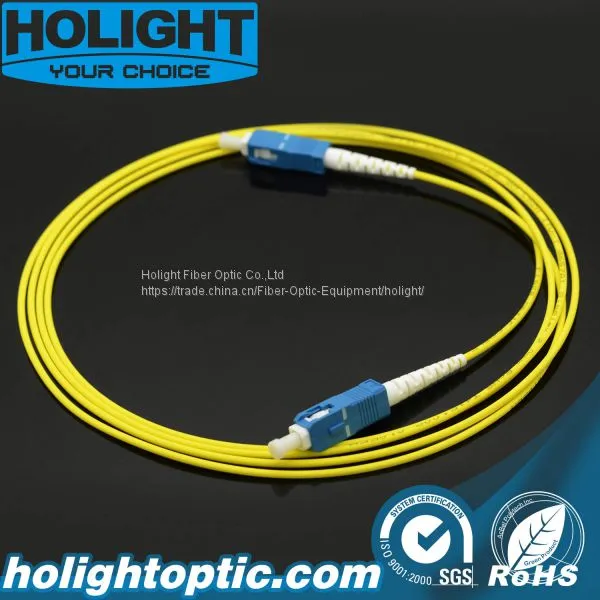

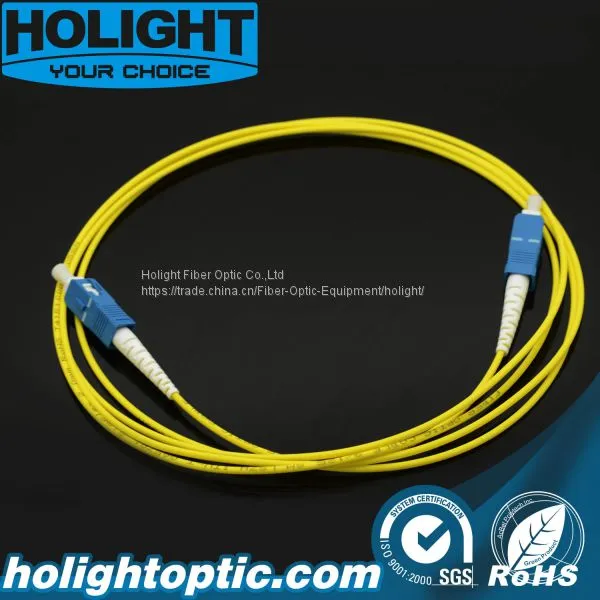

Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Fiber Optic Patchcord Sc to Sc Simplex LSZH Yellow
US$ 0.5 - 2
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Holight
Place of Origin:
China
Model Number:
P01SS920L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
5 days
Related Products
-
St to St Om3 10g Fiber Patch CableUS$ 0.5 - 2MOQ: 1 Piece -
Fiber Optical Patch Cord St to St Duplex Om3US$ 0.5 - 2MOQ: 1 Piece
-
St to St Single Mode Duplex Optica Fiber PatchcordUS$ 0.5 - 2MOQ: 1 Piece
-
FC APC to FC APC Simplex Fiber Optic Patch CordUS$ 0.5 - 2MOQ: 1 Piece
-
FC Fiber Optic Patch CableUS$ 0.5 - 2MOQ: 1 Piece
Brand Name
Holight
Place of Origin
China
Model Number
P01SS920L
APPLICATIONS
· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)
FEATURE
· SC-SC connectors;
· For pigtails, one side of SC only;
· Simplex or Duplex version on request;
· UPC or APC polish available;
· Any other connector type at another side upon request;
· Fan-out on request;
· Superior quality standard PC/UPC/APC polishing;
· 100% factory test (Insertion Loss & Return Loss);
· 0.9mm, 2.0mm and 3.0mm cable optional.
| SPECIFICATIONS | |||||||||||||
| Single mode | Multimode | ||||||||||||
| Insertion Loss | ≤0.2 dB | ≤0.2 dB | |||||||||||
| Return Loss | ≥50 dB (PC) ≥60 dB (APC) | - | |||||||||||
| Repeatability | ≤0.1 dB | ||||||||||||
| Interchangeability | ≤0.2 dB | ||||||||||||
| Durability | plug and unplug 1000 times | ||||||||||||
| Operating Temperature | -40°C ~ 85°C | ||||||||||||
| FOR PATCHCORD ORDERING INFORMATION | |||||||||||||
| Cable number | Both sides conectors | Polish type of conectors | Fiber Type | Boot (cable) Size | Fiber Cable Length | Fiber Cable Jacket | Fiber Cable Color (Standard) | ||||||
| Simplex | LC | PC | 9/125μm (SM) | 0.9mm | Customized | LSZH | Yellow | ||||||
| Duplex | SC | UPC | 50/125μm (MM) | 2.0mm | - | PVC | Orange | ||||||
| Fan-out (4f) | ST | APC | 62.5/125μm (MM) | 3.0mm | - | OFNP | Aqua | ||||||
| Fan-out (6f) | FC | - | - | - | - | - | - | ||||||
| Fan-out (8f) | E2000 | - | - | - | - | - | - | ||||||
| Fan-out (8f) | MTRJ | - | - | - | - | - | - | ||||||
| - | MPO | - | - | - | - | - | - | ||||||
| - | MU | - | - | - | - | - | - | ||||||
| For example: DX-SC/SC SM 3.0mm - 3m LSZH Yellow | |||||||||||||
