Home > Products > Splitter and ODF > 1*4 PLC ABS Module Box 0.9mm 1X4 with Sca Connector

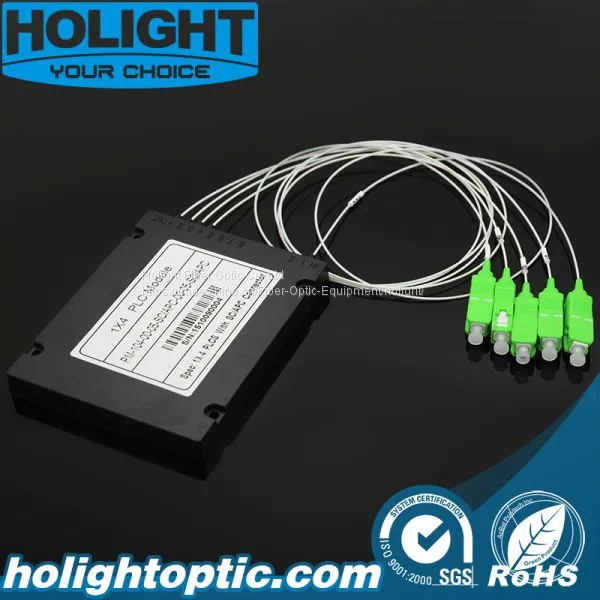

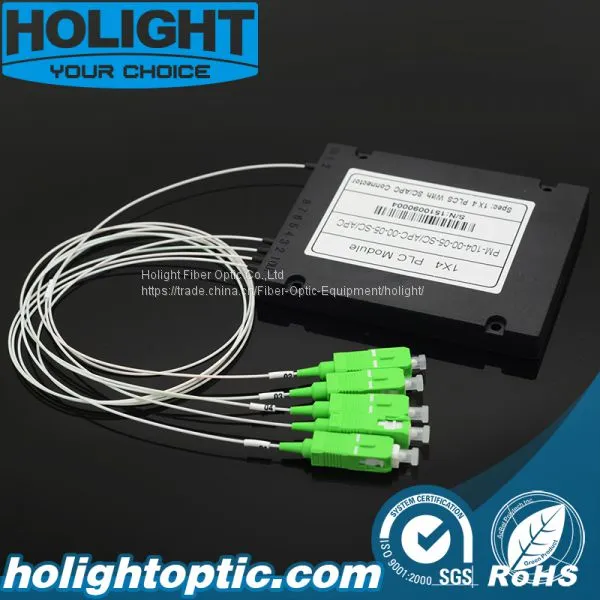

1*4 PLC ABS Module Box 0.9mm 1X4 with Sca Connector
- 100000 Piece / Pieces per Month
- Shekou
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 5 days
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Brand Name: | Holight | Place of Origin: | China | Model Number: | PLCA0914 |
Product Description
The PLC Splitters is branching devices that is used to distribute optical signals to multiple
locations for processing. In optical networks, it is often necessary to split an optical signal
into many identical signals, or to combine many signals into a single signal.
PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device
that is fabricated using silica optical waveguide technology. They are designed for
FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System.
PLC Splitter is responsible to distribute the signal from CO to numbers of premises.
Holight provides whole series of 1*N and 2*N splitter products that are tailored
for specific applications. All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Application
· FTTX Systems
· PON Networks
· CATV Links
· Optical Signal Distribution
Feature
· Low Insertion loss
· Low PDL
· Compact Design
· Good channel-to-channel uniformity
· Wide Operating Wavelength: from 1260nm to 1650nm
· Wide Operating Temperature: from -40°C to 85°C
· High Reliability and Stability
Specification
Ports | 1x2 | 2x2 | 1x4 | 2x4 | 1x8 | 2x8 | 1x16 | 2x16 | 1x32 | 2x32 | 1x64 | 2x64 | |
Operating Wavelengths(nm) | 1260~1650 | ||||||||||||
Insertion Loss(dB) | Max P/S | 4 | 4 | 7.3 | 7.6 | 10.5 | 11 | 13.5 | 14.4 | 16.5 | 17.5 | 20.5 | 21 |
Loss Uniformity(dB) | Max | 0.4 | 0.6 | 0.6 | 0.8 | 0.8 | 1.2 | 1.2 | 1.5 | 1.5 | 2 | 2 | 2.2 |
PDL(dB) | Max | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.25 | 0.3 | 0.3 | 0.4 | 0.35 | 0.4 |
Return Loss(dB) | Min | UPC: 50 APC: 55 | |||||||||||
Directivity(dB) | Min | 55 | |||||||||||
Input Fiber | Bend Insenstive SM Fiber(ITU G657A) | ||||||||||||
Output Fiber | Bend Insenstive SM Fiber(ITU G657A) | ||||||||||||
Max. Optic Power(mw) | 300 | ||||||||||||
Humidity Range(rh) | 5% ~ 85% | ||||||||||||
Opreating Temperature(°C) | -40 ~ 85 | ||||||||||||
Storage Temperature(°C) | -40 ~ 85 | ||||||||||||
Packaing Option | Bare Device, Mini Tube, ABS Module, LGX BOX,19' 1U 2U Rack-Mount | ||||||||||||
Mini Tube(Metal) Dimension(mm) (LxWxH) | 50x4x4 | 50x7x4 | 50x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | |||||||
ABS Module Dimension(mm) (LxWxH) | 100x80x10 | 100x80x10 | 100x80x10 | 120x80x18 | 120x80x18 | 140x115x18 | |||||||
BOX Dimension(mm) (LxWxH) | LGX BOX,19' 1U 2U Rack-Mount |
