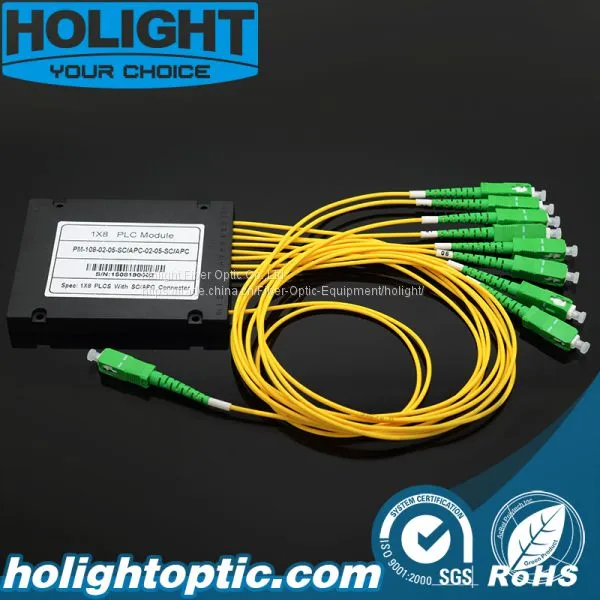

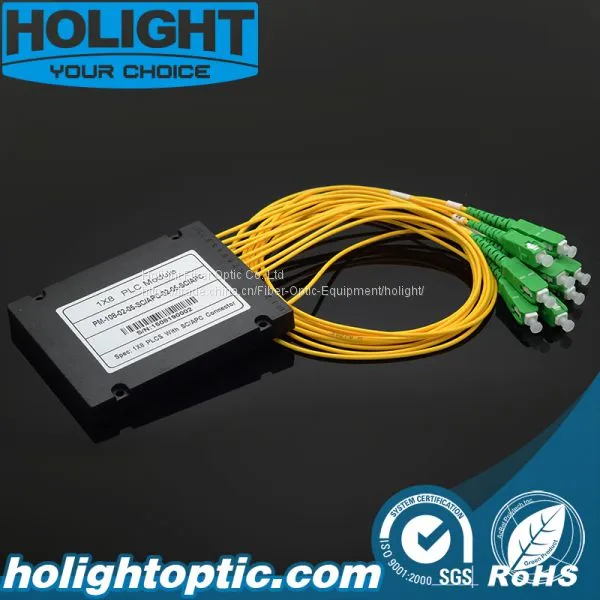

PLC Splitter 1*8 ABS Module Type 2.0mm With Sca Connector

The PLC Splitters is branching devices that is used to distribute optical signals to multiple
locations for processing. In optical networks, it is often necessary to split an optical signal
into many identical signals, or to combine many signals into a single signal.
PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device
that is fabricated using silica optical waveguide technology. They are designed for
FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System.
PLC Splitter is responsible to distribute the signal from CO to numbers of premises.
Holight provides whole series of 1*N and 2*N splitter products that are tailored
for specific applications. All prodcts meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Application
· FTTX Systems
· PON Networks
· CATV Links
· Optical Signal Distribution
Feature
· Low Insertion loss
· Low PDL
· Compact Design
· Good channel-to-channel uniformity
· Wide Operating Wavelength: from 1260nm to 1650nm
· Wide Operating Temperature: from -40°C to 85°C
· High Reliability and Stability

Specification
