china 4wd 14m telescopic handler forklift and Reach Stacker xt670-140
XT670-140 Telescopic is a versatile lifting handling equipment, set in a stable and high efficiency, suitable for a variety of material handling environments. The machine is compact structure, flexible operation, sensitive lift, automatic leveling, high net truck load index, fork shipped accurate.
Description | Unit | Specifications |
Overall dimensions(L*W*H) | mm | 6290×2450×2725 |
min.ground clearance | mm | 450 |
Wheel base | mm | 3250 |
Tread | mm | 1977 |
Model | WEICHAI Engine | |
Rated power | kw | 74.5 |
Rated speed | r/min | 2200 |
displacement | L | 4.4 |
number of cylinder | 4 | |
Max Grade Ability | % | 30 |
Max. speed | km/h | 35 |
Operating weight | t | 10.5 |
Maximum lift capacity | k g | 3500 |
Lift height | m | 7.15 |
Reach at maximum lift height | m | 1.33 |
Maximum forward reach | m | 3.83 |
Feature of china 4wd 14m telescopic handler forklift and Reach Stacker xt670-140

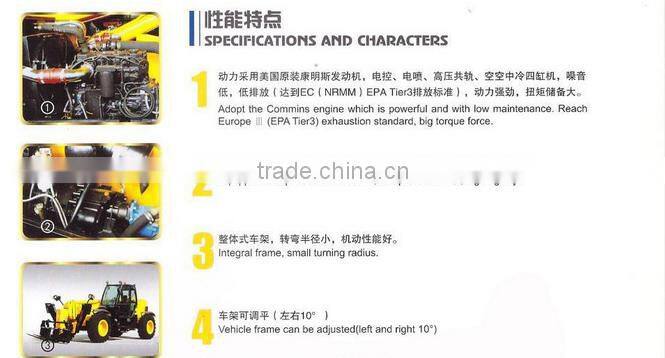

(1) Adopt the engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.
(2) Equipped with power transmission, compact structure, high rigidity.
(3) With articulated frame, small turning radius.
(4) The driver’s cabin is furnished with the system of the air conditioner, it is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comfortableness of the operating

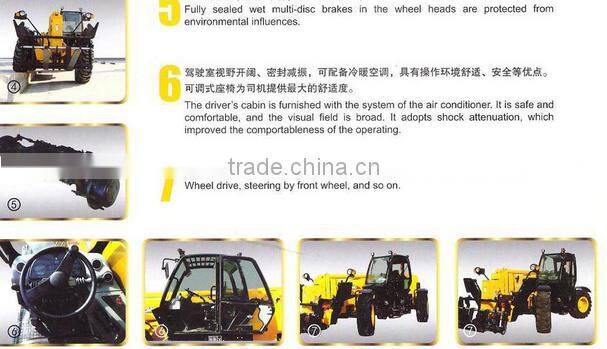

(5) Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.
(6) Multi-function instrument can be chosen. It is a kind of machinery which is suitable for lifting and carrying in narrow ground.
Photos of XT680-170
