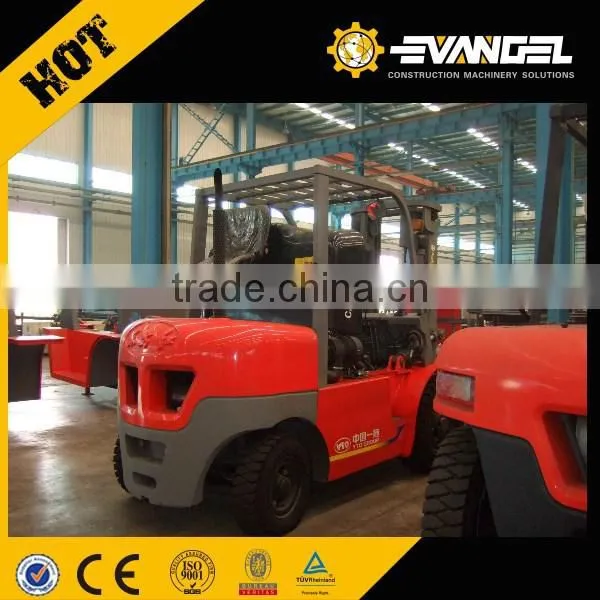

4 Ton Forklift Truck YTO CPCD40 for Sale

Evangel Industrial (Shanghai) Co., Ltd.

US$ 2,000 - 18,200 MOQ: 1 Unit

Key Specifications

Condition:

New

Brand Name:

YTO

Model Number:

CPCD40

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YTO

Model Number CPCD40

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 4000Kg

Max. Lifting Height 3000mm

Min. Lifting Height 140mm

Fork Length 1070mm

Fork Width 125mm

Overall Dimensions 2930mm*1800mm*2452mm

Certification ISO,CE,GOST

After-sales Service Provided Engineers available to service machinery overseas

4 ton forklift truck YTO CPCD40 for sale

Main features:

4ton hydraulic forklift/diesel forklift CPCD40 YTO
Rated Capacity:4000kg
Max.Lifting Height:3000mm
Min.Lifting Height:140mm

Technical Specification

Speciality parameter	Model					CPCD40
	Power type					Diesel
	Rated capacity				kg	4000
	Load center			d	mm	500
	Lift height			h2	mm	3000
	Mast tilt angle (forward/backward)			α/β	Deg	6/12
	Front overhang			L3	mm	515
	Wheel-base			L4	mm	1900
	Tread(front/rear)			b4/b5	mm	1040/980
Performance parameter	Travel brake					Hydraulic-Foot pedal
	Parking brake					Mechanical-Hand lever
	Lift speed(with/without load)				mm/s	380/440
	Lower speed (with/without load)				mm/s	(with load)<600 ,(without load)>300
	Travel speed (with/without load)				km/h	19/20
	Max. gradeability (with load)				%	18
Power, transmission and others	Engine	Model				A495BPG
		Manufacturer				Xinchang
		Rated power			kw	42/2650
		Max.rotation				174/1800
		Displacement				2.98
	Battery	Voltage			V	12
	Battery	Capacity			Ah	100
	Gearbox	Transmission type				Hydraulic
	Gearbox	Gears,speed (front/rear)				Ⅰ/Ⅰ
	Tire	type				Pneumatic tyre
		Model	Front			250-15-16PR
		Model	Rear			6.5-10-12PR
Other	Self.weight				kg	5030
	Free lift height			h4	mm	170
	Fork	Thickness×Width×Length		c×b×a	mm	50×140×1070
	Overall dimensions	Overall length(without forks)		L2	mm	2970
		Overall width		b1	mm	1310
		Overall height	Extended height(mast)	h1	mm	4240
			Lower height(mast)	h3	mm	2170
			Overhead guard	h7	mm	2170
	Min. turning radius			Wa	mm	2710
	Min. under ground clearance	Under mast		m1	mm	135
	Min. under ground clearance	Center of wheel-base		m2	mm	160
