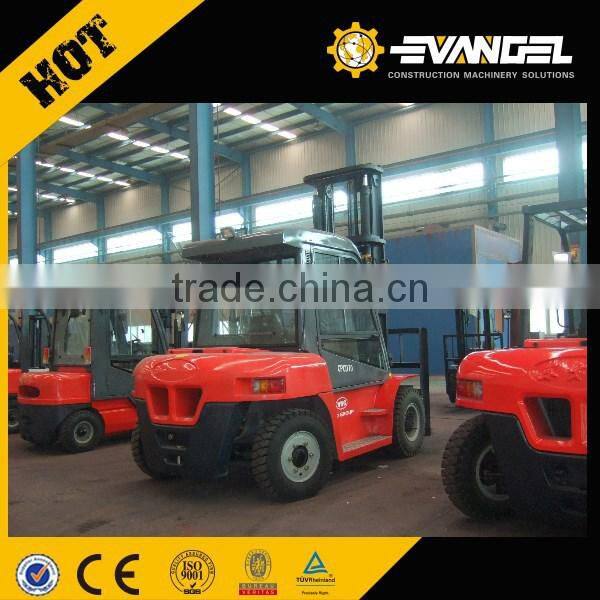

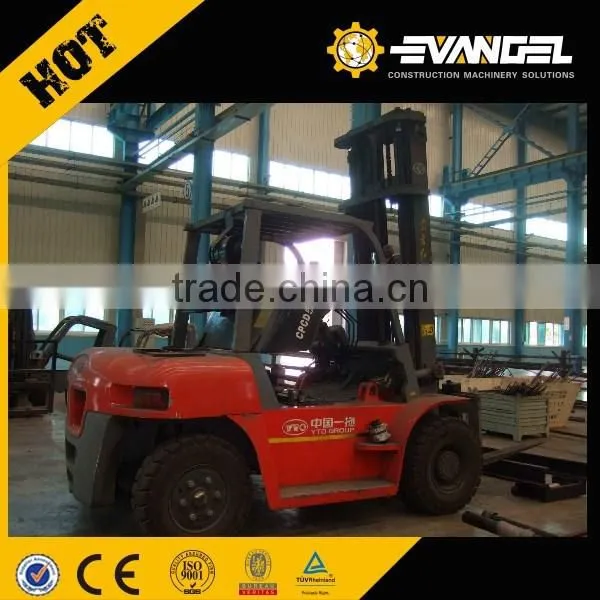

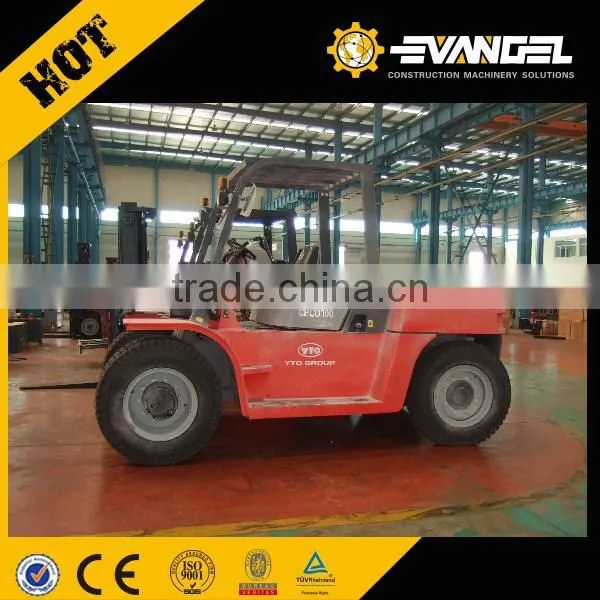

10 ton forklift YTO CPCD10 for warehouse use top quality
Main features:
The seat can be adjusted back and forth within wide range in 8 positions, the front/rear sliding adjustment can be up to 150mm, the tilting angle of the steering wheel can be adjusted, so as to fit the operator for sheer driving pleasure.
Digital intelligent driving control system can facilitate obtaining the operation data of forklift so as to achieve the whole-process control.
Full hydraulic steering system, can greatly reduce the fatigue of operator, uses crank sliding piece steering and compact structure.
Big arch design on top of the ballast can improve the visibility of rear view; can guarantee the optimum visibility when drive reverses within fixed distance...

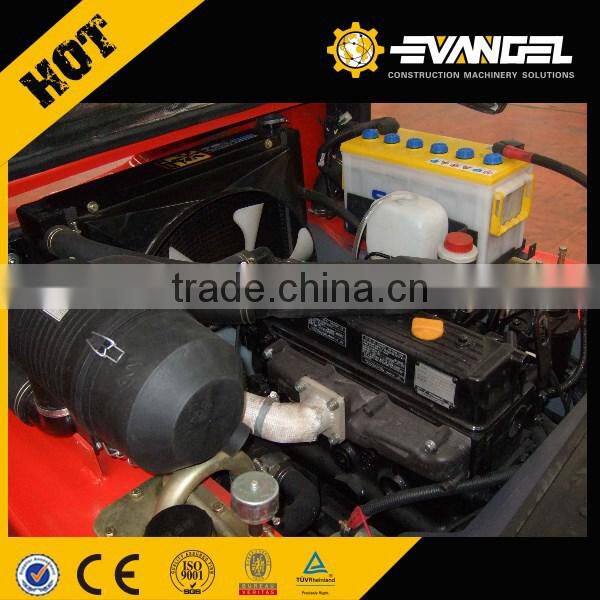

The engine hood can open by 90°,and can be effectively supported with air spring so as to facilitate the inspection and maintenance.
Technical parameters
Technical Specification
SpecialitParameter |
Model |
| CPCD100 | |||
Power type |
| Diesel | ||||
rated lifting capacity |
| 10000 | ||||
load center distance | mm | 600 | ||||
lifting height | mm | 3000 | ||||
Free lifting height | mm | 165 | ||||
Mast tilt angle(front/rear) | ° | 6/12 | ||||
Performance Parameter | lifting speed(with/without load) |
| 310/340 | |||
lowering speed(with/without load) |
| >300(without load),<600(with load) | ||||
travel speed(with/without load) |
| 23/26 | ||||
max gradeability with full load |
| 20% | ||||
min turning radius | mm | 3950 | ||||
Min.intersecting aisle(clearance 0.2m) | mm | 3660 | ||||
Min.right angle staching aisle width |
| 4860+L6 | ||||
Chassis
parameter | Wheelbase | mm | 2800 | |||
tread | front | mm | 1600 | |||
rear | mm | 1680 | ||||
tyre | type |
| pneumatic tyre | |||
model | front |
| 9.00-20-14PR | |||
rear |
| 9.00-20-14PR | ||||
Min.groung clearance | under mast | mm | 245 | |||
center of wheelbase | mm | 255 | ||||
Brake type | service brake |
| Hydraulic | |||
parking brake |
| Mechanical | ||||
Self weight | Kg | 12500 | ||||
Power,controller andothers | Engine | model |
| LR6108G73 | ||
Manufacturer |
| YTO | ||||
rated power | Kw/rpm | 88/2200 | ||||
rated torque | Nw/rpm | 440/1600 | ||||
Displacement | L | 6.8 | ||||
