165hp HBXG TY165-2 Bulldozer
US$ 1 - 100,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HBXG
Model Number:
TY165-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
165hp HBXG T165-2 BulldozerUS$ 1 - 100,000MOQ: 1 Unit -
140hp HBXG T140-1 BulldozerUS$ 1 - 100,000MOQ: 1 Unit
-
Chinese HBXG International Bulldozer Parts Track Pad (SD6G)US$ 20,000 - 80,000MOQ: 1 Set
-
Chinese HBXG Crawler Bulldozer Tires Bulldozer Shoes(SD6G)US$ 20,000 - 80,000MOQ: 1 Set
-
HBXG Types of Bulldozer Track Chain Bulldozer Ripper(SD6G)US$ 20,000 - 80,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
HBXG
Model Number
TY165-2
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
17600kg
Dimension(Long * Breadth * High)
5416*3297*3160mm
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
High quality.Competitive price.
Best quality and First service

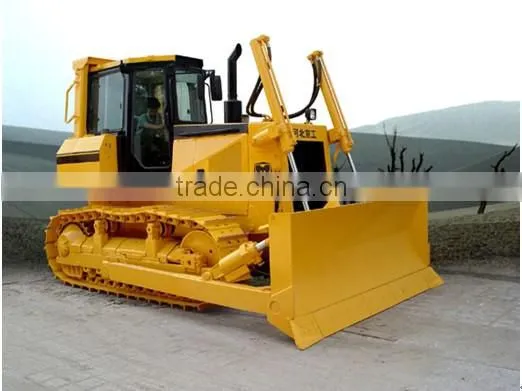

HBXG TY165-2 Bulldozer
TY165-2 bulldozer is 165 horsepower track-type dozer with hydraulic direct drive, semi-rigid suspended and hydraulic assisting operating, pilot hydraulic blade control and single level steering and braking control.
TY165-2 bulldozer is characterized by high efficient, open view, optimized structure, easy operation and service with low cost and reliable entire quality. It can be equipped with three shanks ripper, U-blade (7.4 cubic meter capacity) and other optional components.
TY165-2 bulldozer is applicable for earth handling in road construction, desert and oil-field working, farmland and port construction, irrigation and electric power engineering, mining and other engineer conditions.
Parameter
| Blade | Straight and tilting | Angular Blade |
| Ground pressure:(kpa) | 68.2 | 68.5 |
| Min. ground clearance:(mm) | 352.5 | 352.5 |
| Dozing capacity:(m3) | 5 | 7.4 |
| Max. digging depth:(mm) | 420 | 377 |
| Operation weight:(kg) | 17600 | 17700 |
| Track gauge:(mm) | 1880 | 1880 |
| Gradient: | 30°/25° | 30°/25° |
| Blade width:(mm) | 3297 | 4240 |
| Overall dimensions:(L×W×H)(mm) | 5416×3297×3160 | 5416×3297×3160 |
Undercarriage System
| Type: | Swing type of sprayed beam, suspended structure of equalizer bar. |
| Number of track rollers(each side) | 6 |
| Number of carrier rollers(each side) | 2 |
| Pitch (mm) | 203 |
| Width of shoe (mm) | 500 |
Gear
| 1st | 2nd | 3rd | |
| Forward (Km/h) | 0-3.32 | 0-6.26 | 0-11.40 |
| Backward (Km/h) | 0-4.00 | 0-7.57 | 0-13.87 |
Engine
| Engine Name | Weichai WD10G178E25 |
| Rated revolution:(rpm) | 1850 |
| Flywheel power (KW) | 121 |
| Max. torque:(N.m/rpm): | 830/1000-1200 |
| Rated fuel consumption:(g/kw.h) | ≤215 |
Implement Hydraulic System
| Max. system pressure (MPa): | 12 |
| System output(L/min) | 185 |
| Pump type: | Two groups Gears pump |
Driving System
| Torque converter: | 3-element, 1-stage, 1-phase. |
| Transmission: | Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. |
| Steering clutch: | Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated. |
| Braking clutch: | Brake is oil two direction floating band brake operated by mechanical foot pedal. |
| Final drive: | The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal. |
