140hp HBXG T140-1 Bulldozer
US$ 1 - 100,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HBXG
Model Number:
T140-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chinese HBXG International Bulldozer Parts Track Pad (SD6G)US$ 20,000 - 80,000MOQ: 1 Set -
Chinese HBXG Crawler Bulldozer Tires Bulldozer Shoes(SD6G)US$ 20,000 - 80,000MOQ: 1 Set
-
HBXG Types of Bulldozer Track Chain Bulldozer Ripper(SD6G)US$ 20,000 - 80,000MOQ: 1 Set
-
HBXG Bulldozer SD140-1 PriceUS$ 30,000 - 80,000MOQ: 1 Unit
-
HBXG 230HP Mini Bulldozer SD7 for SaleUS$ 80,000 - 150,000MOQ: 1 Unit
Place of Origin
Hebei, China
Brand Name
HBXG
Model Number
T140-1
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
16600kg
Dimension(Long * Breadth * High)
5486*3762*2842mm
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
High quality.Competitive price.
Best quality and First service

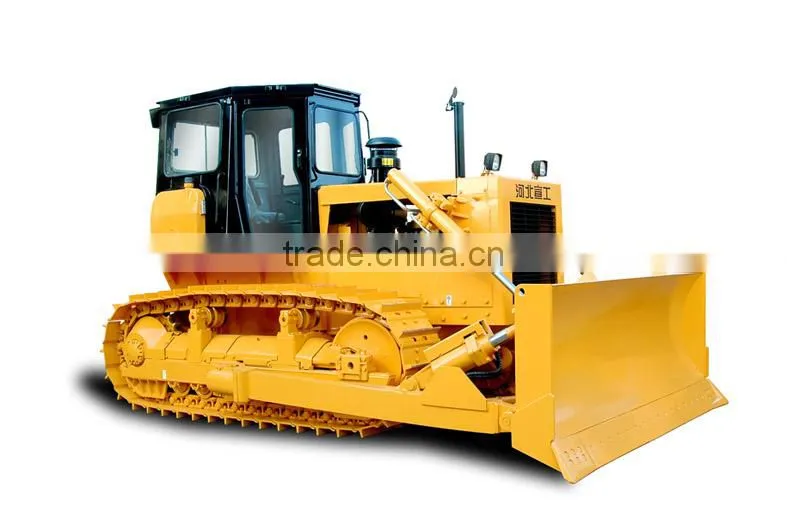

HBXG T140-1 Bulldozer
It has characteristic of semi-rigid suspension, mechanical drive. The main clutch is hydraulic boosted. With hydraulic pilot controlled, electric monitoring, good appearance. It adopts Weichai WD10G type engine which is strong power, low fuel consumption and complete accessories. It can be equipped with three shanks ripper, U-blade (7.4 cubic meter capacity) and other optional components.
Parameter
| Specification | |||
| Dozer | Angle | Tilt | |
| Operation weight | kg | 16600 | 16500 |
| Ground pressure | kpa | 63.3 | 62.9 |
| Track gauge | mm | 1880 | 1880 |
| Min. Ground clearance | mm | 400 | 400 |
| Gradient | º | 30/25 | 30/25 |
| Dozing capacity | m3 | 4 | 4.5 |
| Blade width | mm | 3762 | 3297 |
| Max.digging depth | mm | 400 | 400 |
| Overall dimensions | mm | 5486X3762X2842 | 5336X3297X2842 |
|
Engine | ||||||||||||||||||||||
| Type | WD10G156E26 | |||||||||||||||||||||
| Rated revolution | rpm | 1800 | ||||||||||||||||||||
| Reted power | KW | 104 | ||||||||||||||||||||
| Max. Torque | N.m/rpm | 780/1000-1200 | ||||||||||||||||||||
| Rated fuel consumption | g/KW.h |
≤ 215
|
||||||||||||||||||||
| Undercarriage system | ||
| Type | Swing type of sprayed beam.Suspended structure of equalizer bar. | |
| Number of track rollers (each side) | 6 | |
| Number of carrier rollers (each side) | 2 | |
| Pitch | mm | 203 |
| Width of shoe | mm | 500 |
| Implement hydraulic system | ||
| Max. system pressure | Mpa | 11.76 |
| Pump type | CBF-E1009(reverse) | |
| System output | L/min | 180 |
| Driving system | |||
| Main clutch | Normally opened, wet type,, hydraulic booster control | ||
| Transmission | Normally meshed helical gear drive, coupling sleeve shift and two lever opereation, the transmission have five forward and four backward speeds. | ||
| Steering clutch | Multiple-disc oil power metallurgy disc compressed by spring. Hydraulic operated. | ||
| Steering brake | Brake is oil two direction floating band brake operated by machanical foot pedal. | ||
| Final drive | The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal. | ||
