Specifications
Chinese HBXG crawler bulldozer tires bulldozer shoes(SD6Gcrawler bulldozer
bulldozer shoes
bulldozer tires
bulldozer tires

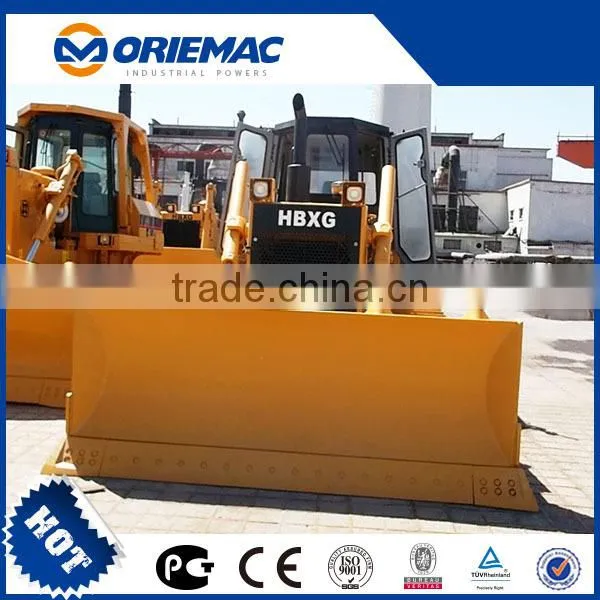

Chinese HBXG crawler bulldozer tires bulldozer shoes(SD6G)
Main specifications | |||
Operating weight |
16.2t |
||
Ground pressure (at operating weight) |
54kpa |
||
Track contact length |
2990mm |
||
Overall dimensions(L×W×H) |
5037×3297×3077mm (without ripper) |
||
Grade ability |
Latitude 30 ° Transverse 25° |
||
Ground clearance |
445*mm |
||
Diesel Engine | |||
Model |
Turbocharged C6121 diesel engine |
||
Type |
Water-Cooled, single-row, vertical, 4-stroke-cycle |
||
Rated speed |
1900rpm |
||
Flywheel power |
131kw/160HP |
||
Start mode |
24V starter motor |
||
Number of cylinders-bore*stroke |
6-121*152mm |
||
Displacement |
10.5** |
||
Fuel system |
Direct injection with individual adjust system free injection pumps and valve |
||
Transmission | |||
|
Planetary power shift with high-torque-capacity oil clutched, special valve permits fast speed and direction changes. Three speeds forward, three reverse. Single- stage torque converter with output torque divider combined smoothness with economy. Connected to transmission by double universal joint for removal. Oil-to-air and oil-to-water heat exchangers cool the torque converter oil. | |||
Gear |
Forward Speed( Km/h) |
Reverse Speed(Km/h) |
|
1 |
0-4.0 |
0-4.8 |
|
2 |
0-6.9 |
0-8.4 |
|
3 |
0-10.8 |
0-12.9 |
|
