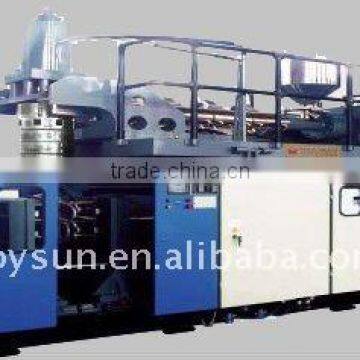

PC 5Gallon Extrusion Blow Moulding Machine
- 10 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | JOYSUN |
Model Number: | JKB |
Product Description
Specifications
1. PC 5 Gallon Extrusion Blow Molding Machine2. 5 gallon Blow Molding Machine
3. capacity of 70-75BPH, reliable components.
Extrusion Blow Molding Machine, 5 gallon Blow Molding Machine, Extrusion Machine
Characteristics:
1 It adopts a special exhaust type screw for PC material;
2 Extrusion device could be adjusted in four directions: forward/backward, upward/downward;
3 Blow nozzle could be adjusted in six directions: forward/backward, upward/downward, right/left;
4 It adopts MISUBISHI PLC control system, which is made in Japan;
5 The thickness control system is selectable, which adopts MOOG30 point hydraulic servo system;
6 Complete safety control system always assure the operator in safe situation.
ITEM | SPECIFICATION | ||
MODEL | TDB-25APC | ||
Max. Bottle Volume | 25L | ||
Max. Capacity | 80BPH | ||
EXTRUSION UNIT | Screw Diameter | mm | 82 |
Screw L/D Ratio | L/D | 38 | |
Screw Driving power | KW |
| |
Screw Heating Capacity | KW | 16.7 | |
Heating zone | ZONE | 8 | |
Plasticizing Capacity | kg/h | 160PC | |
Oil Pump Driving Power | KW | 45 | |
MOLD UNIT | Clamping Force | KN | 215 |
Mold Stroke | mm | 350-780 | |
Max. Size of Mold (WXH) | mm | 550*650 | |
DIE HEAD | Capacity | L | 1.9 |
Max. Die Diameter | mm | 150 | |
Die Heat Capacity | KW | 4.1 | |
Heating Zone | ZONE | 4 | |
OTHER | Blowing Pressure | Mpa | 1.2 |
Air Consumption | M3/MIN | 1 | |
Water Consumption | L/MIN | 150 | |
MACHINE | Dimension (LXWXH) | m | 6.3×2.3×4.55 |
Weight | TON | 11.8 |
