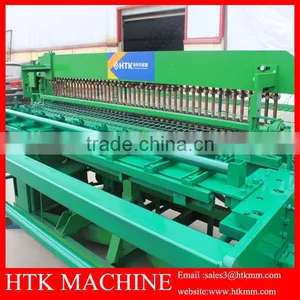

2.5mm-5.0mm coil wire feeding Welded roll wire mesh making machine

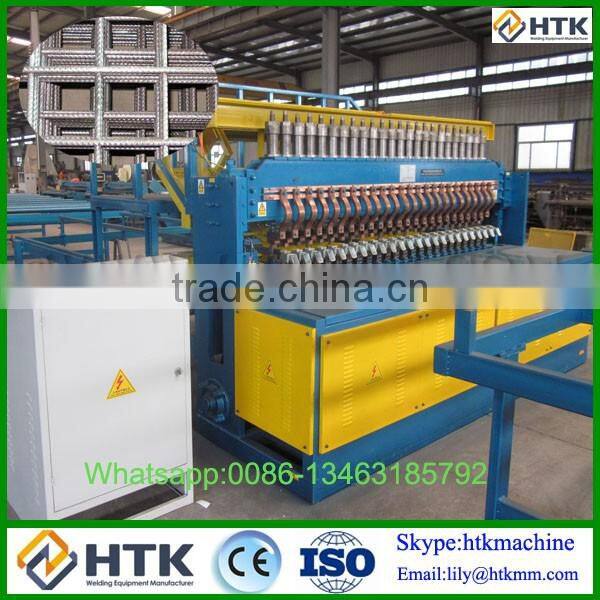

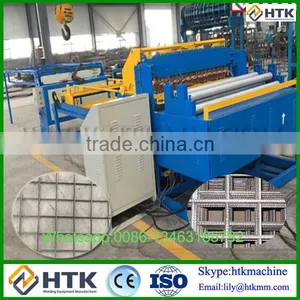

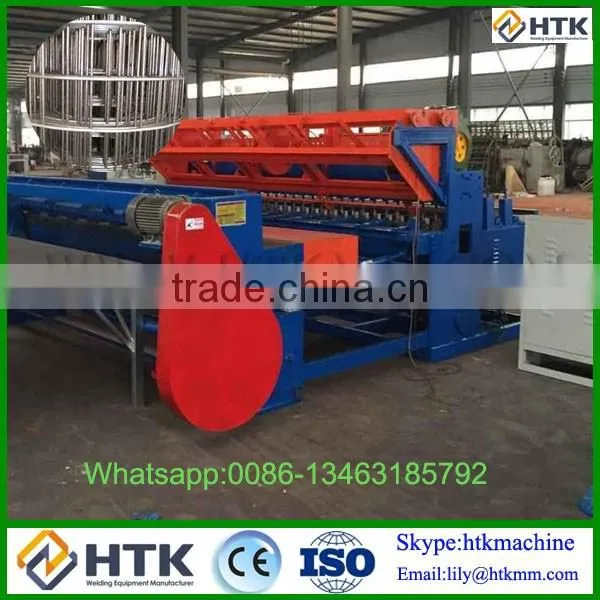

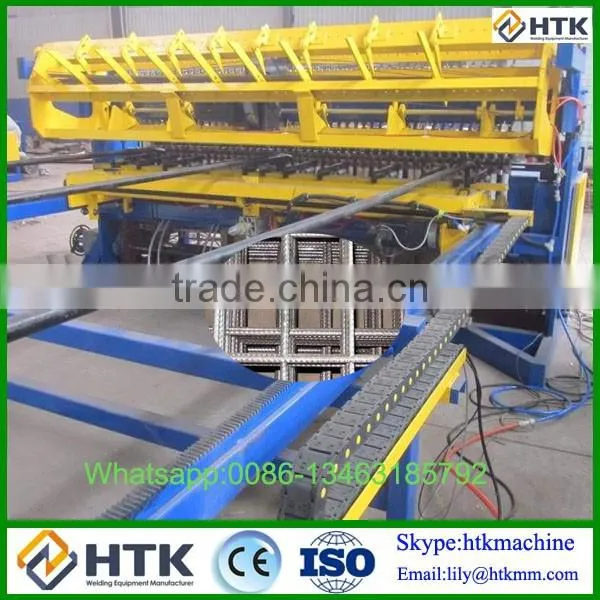

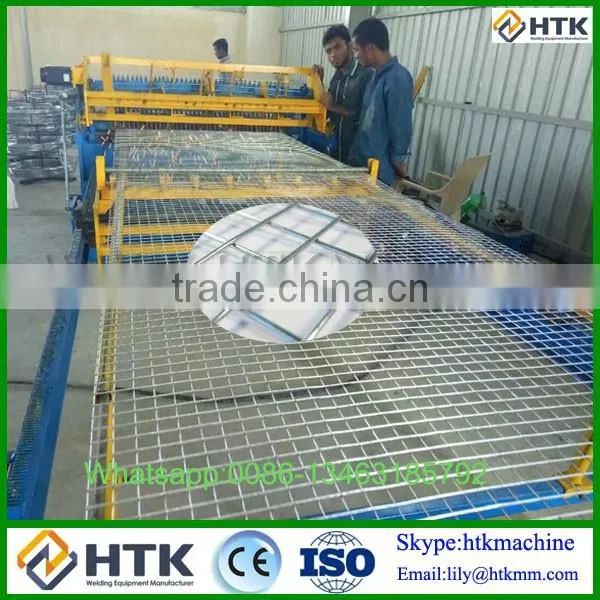

Welded roll wire mesh making machine (big diameter)

Wire diameter: 2.5-6mm
Longitude wire space: 50, 100, 150, 200mm
Cross wire space: 50, 100, 150, 200mm
Mesh width: Max.1.2m, 1.5m, 2m, 2.5m
Mesh length: max.50m
Longitude wire feeding: automatic from coils
Cross wire feeding: pre-cut
Mesh pulling: Panasonic servo motor
Welding speed: 45-60 times/min
Mesh type: panel mesh or roll mesh

Machine Description

1.The machine adopts Panasonic PLC and Weinview touch screen, easy to operate.
2.Pure red copper (upper) and chromised bronze (lower), durable.
3.The cross wires feeder is controlled by new type step motor and SMC (Japan) air cylinder.
4.Helical gear reducer connect the principal axis directly, stable, suitable for high speed welding.
5.Casting water-cooling welding transformers, high efficiency. The welding degree is adjusted by PLC.

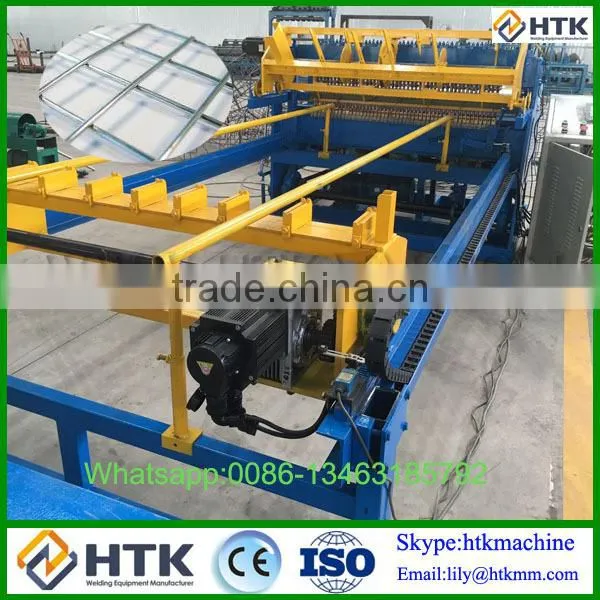

6.Panasonic (Japan) servo motor+planetary reducer and SMC (Japan) air cylinders for pulling mesh.
7.The cable carrier is Igus brand, imported from Germany, not easily hang down.

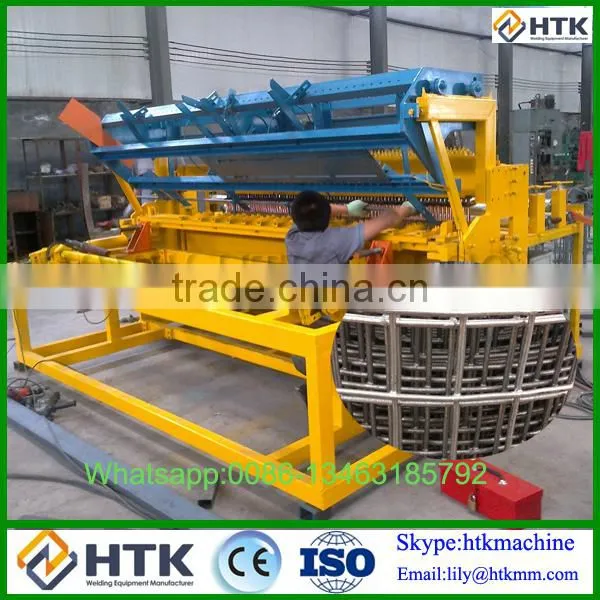

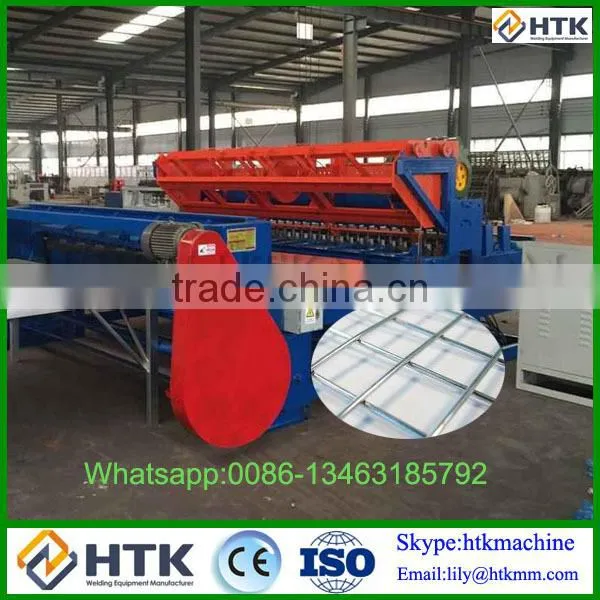

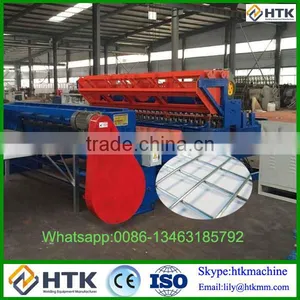

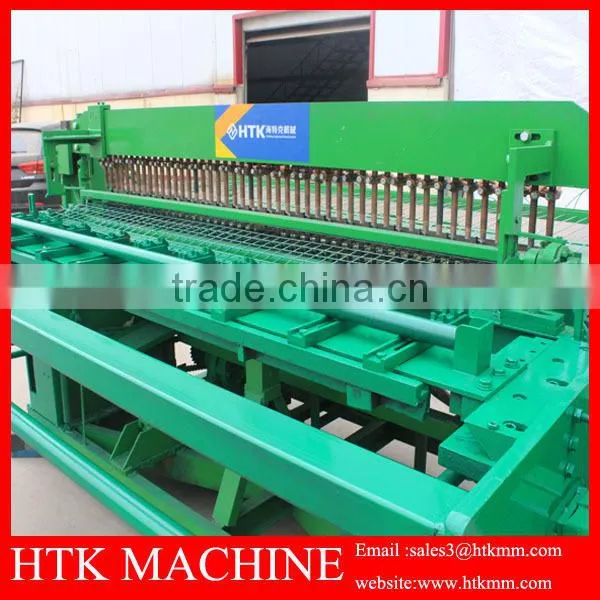

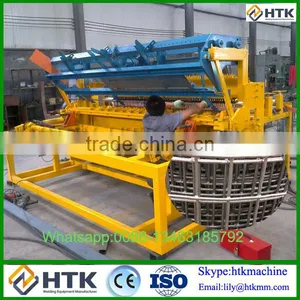

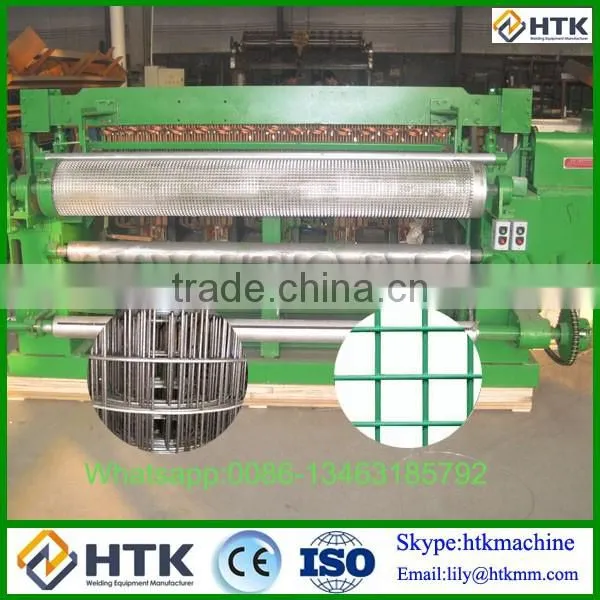

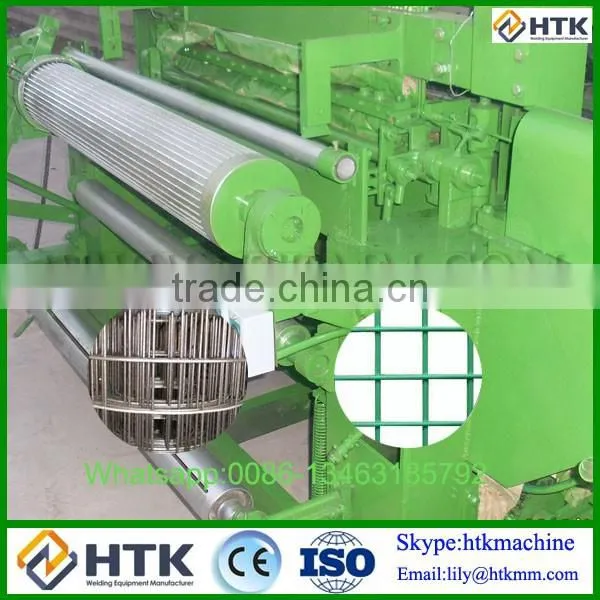

Welded roll wire mesh making machine (small diameter)

1. Both of the longitude wire and cross wire are fed from wire coils automatically.
2. The raw material is suitable for black wire, galvanized wire or stainless steel wire.
3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
4. The mesh roll length can be set by counter switch on the control panel.
5. The welding transformers have 8 degrees and can be adjusted for different wire diameters.
6. The welding time and welding current can be adjusted on the control panel to guarantee welding solid.

After-sales Service

Guarantee time: 18 months.
Spare parts: If non-quick wear part is broken, we can change for free.
Installation&training:
Complete installation instructions&circuit diagram.
Send best engineer to your fatory for installation&training.
After-sales:
24 hours support service.

Hebei HTK Welding Equipment Manufacture Co., Ltd

We have 5 senior engineers,10 senior technicians,more than 100 employees.
1.Our products: Welded Wire Mesh Machine
2. Certifications: ISO 9001:2000, BV certification
3.Main Markets:South Africa, Mongolia,Asia, Duba,Algeria, American, West Europe,etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by BV.
5)Have our own inspection team to do the quality control.
