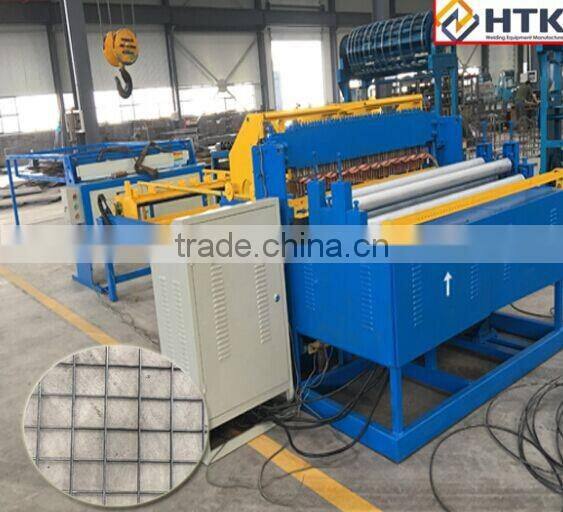

WIRE MESH WELDING MACHINE
The machine adopts electrical and electronic synchronous control technique both welding time and cent-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function, firm welded point and without welded tracks.
Not only welding speed is fast but also it is easy to learn and operate. The machine is equipped with precise equipment for weft cutting so the length of wefts is identical and regular, it is unnecessary to slice the side, and mesh opening positioning device .
Features:

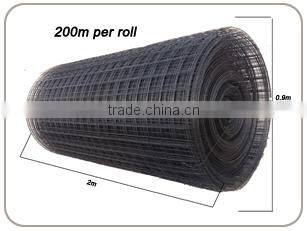

Big roll type , it can make 200m length roll
2- 4mm wire thickness
Automatic Welding

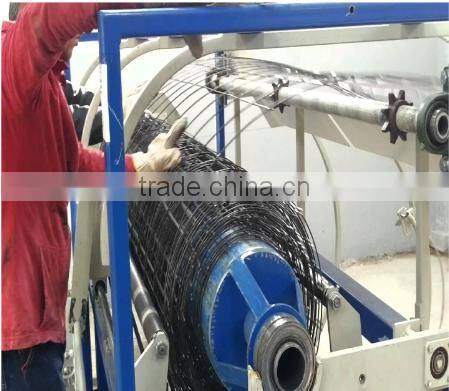

Automatic rolling-up
Electronic synchronous control technique
Fast welding speed
Easy to learn and operate
Welding aperture could adjust randomly within certain range .
Welded Wire Mesh Machine Technical:
Mesh Width: 2000mm
Mesh Opening: 50x50mm,50x100mm,100x100mm
Wire Diameter: 2-4.5mm
Number of Welding Point (Electrode): 41
Installed power: 5 * 125 kva
Max Welding Capacity: 4.5+4.5mm
Max Welding Speed: 40-60 times/minute
feeding hopper,welding automatically one by one.
Rolling Way: Automatically stop after 200m length rolling,
Best After-sales Service
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer’s factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Timely reply for your machine questions.
Hebei HTK Welding Equipment Manufacture Co., Ltd
We have 5 senior engineers,10 senior technicians,more than 100 employees.
1.Our products: Welded Wire Mesh Machine
2. Certifications: ISO 9001:2000, BV certification
3.Main Markets:South Africa, Mongolia,Asia, Duba,Algeria, American, West Europe,etc.
Advantages of our factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by BV.
5)Have our own inspection team to do the quality control.
